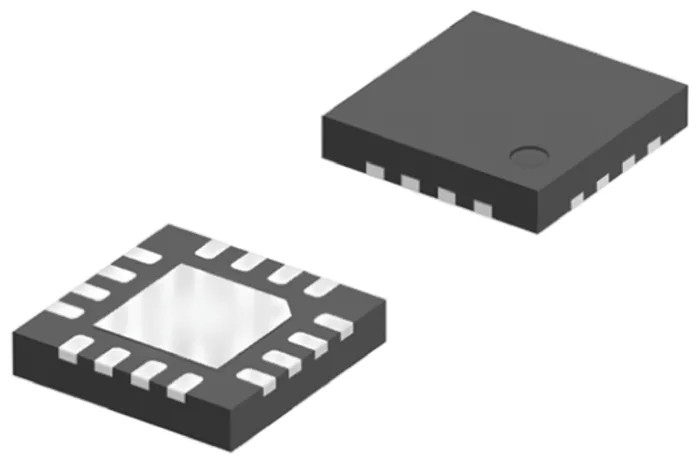

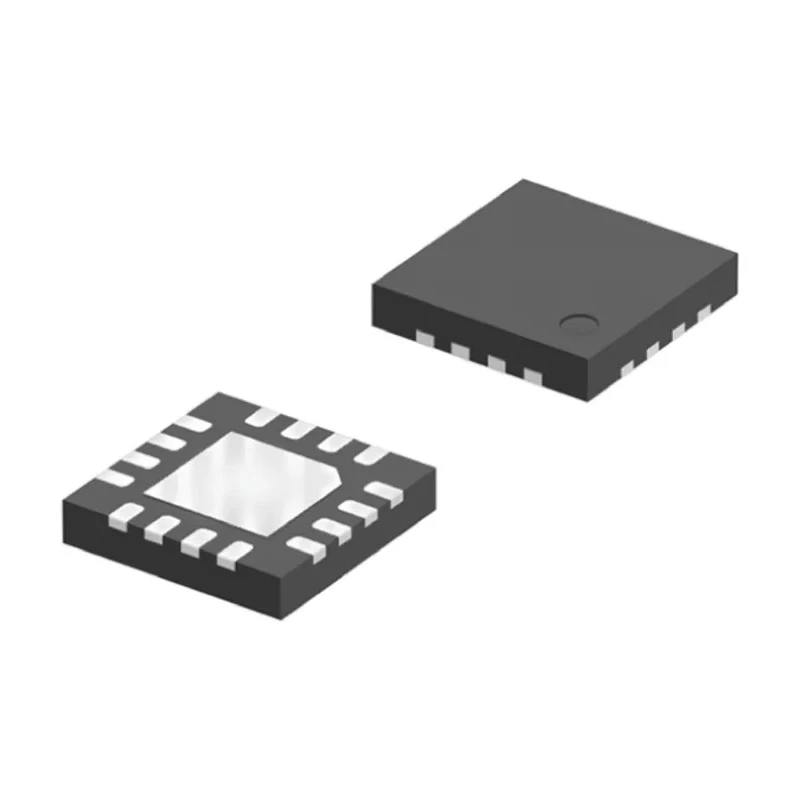

onsemi Analogue Switch 1 Single 4PDT Multiplexer 16-Pin MLP FSA2567MPX

onsemi FSA2567MPX Analogue Switch is a precision single 4PDT multiplexer designed for electronic component applications requiring signal routing with minimal interference. Packaged in a compact 16-pin MLP surface mount format measuring 3mm length, 3mm width, and 750μm height, it fits efficiently on modern PCBs.

This multiplexer IC supports a supply voltage range from 1.65V minimum to 4.3V maximum, ensuring compatibility with various digital and analog circuits. Its maximum operating temperature is rated up to 85°C while maintaining a maximum on-state resistance of 12Ω, protecting signal clarity and minimizing loss during operation.

The device is optimized for logic IC use cases including USB interfaces, audio/video signal routing, and general multiplexer/demultiplexer applications found in semiconductors. Its single 4PDT configuration provides flexibility for complex switching needs.

The MLP package type ensures surface mount compatibility and reliable mechanical stability. The device operates across a wide temperature band from -40°C to 85°C, suitable for industrial and commercial environments.

Operates with supply voltage from 1.65V to 4.3V. Single 4PDT configuration supports multiple signal routing. Surface mount device with compact 3mm x 3mm x 0.75mm package dimensions. Maximum operating temperature up to 85°C for reliable performance.

Maximum on-state resistance of 12Ω ensures low signal loss. Designed for USB, audio, video, and signal routing applications. Single element per chip with multiplexer functionality. MLP package with 16 pins facilitates PCB mounting.

Wide operating temperature range from -40°C to 85°C. This product is ideal for use in electronics development, manufacturing, and repair for industrial, commercial, and laboratory environments. Explore additional onsemi semiconductor solutions and multiplexer ICs on EnvMart for your electronics project needs.
