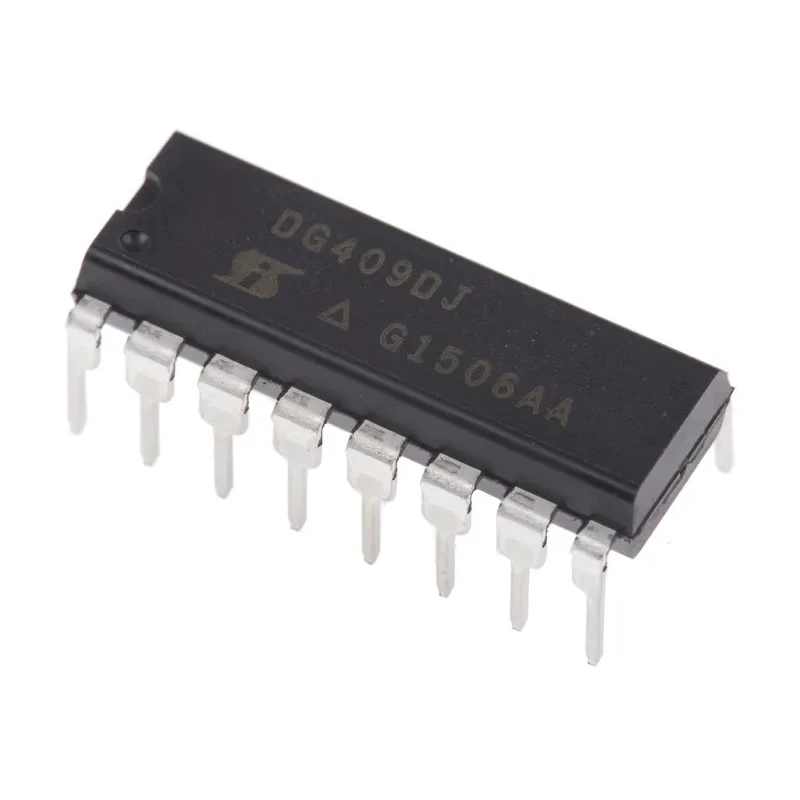

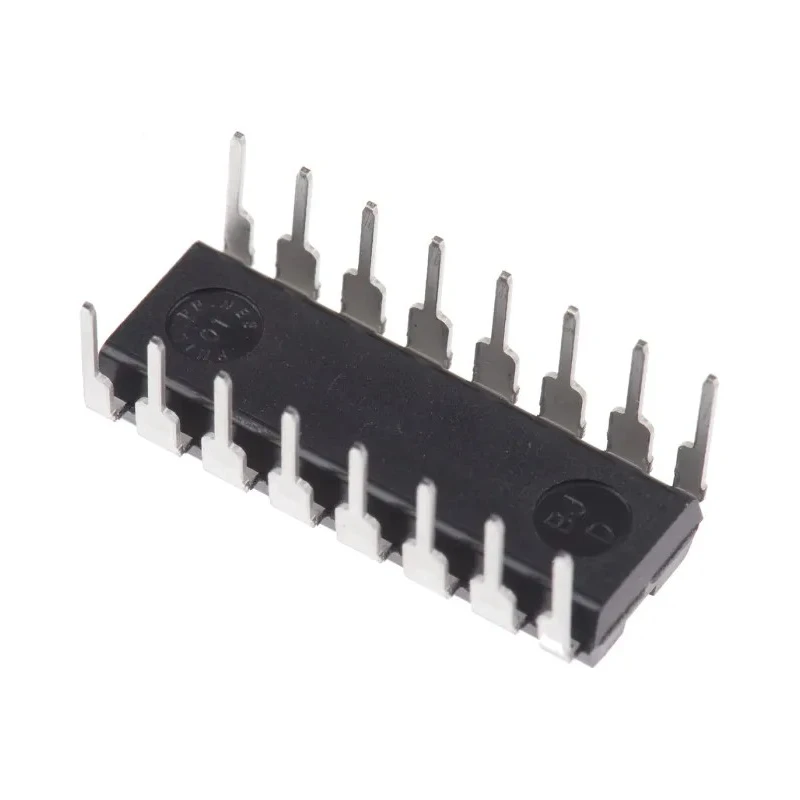

Vishay Analogue Switch 2 CMOS Dual 4:1 Multiplexer 16-Pin PDIP DG409DJ-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 3.81mm |
| Length | 21.33mm |
| Model | DG409DJ-E3 |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Output type | CMOS/TTL |
| Series | DG409 |
| Configuration | Dual 4:1 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 36V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 5V |
| Multiplexer/Demultiplexer | Multiplexer |
| Maximum On State Resistance | 125Ω |
| Dual 4 | 1 |
| Vishay Analogue Switch, 2 CMOS Dual 4 | 1, Multiplexer, 16-Pin PDIP |
| Maxim Integrated DG409DJ+ Multiplexer Dual 4 | 1 9 V, 12 V, 15 V, 18 V, 24 V, 28 V, 16-Pin PDIPBrand: Maxim Integrated |
Key Features
- Operates with a minimum supply voltage of 5V and a maximum supply voltage of 36V.
- Features a maximum on state resistance of 125 Ohms for reliable signal switching.
- Operating temperature range from -40°C to 85°C ensures suitability for diverse environments.
- Compatible with a wide range of industrial and commercial electronic applications.
- Packaged in industry-standard 16-Pin PDIP for ease of PCB integration.
Product Description
Vishay DG409DJ-E3 Analogue Switch is a high-performance 2 CMOS dual 4:1 multiplexer in a 16-Pin PDIP package designed for precise and reliable signal switching in electronic circuits.
This device operates with a wide supply voltage range from 5V minimum to 36V maximum, supporting CMOS and TTL compatible outputs, making it versatile for varied electronic applications.
The maximum on state resistance of 125 Ohms ensures efficient switching with minimal signal loss. It functions reliably within an operating temperature range of -40°C to 85°C, suitable for demanding industrial environments.
The device utilizes a through hole mount type and measures 21.33 mm in length, 7.11 mm in width, and 3.81 mm in height, allowing for standardized PCB footprint integration.
This dual 4:1 multiplexer configuration is ideal for multiplexing signals in electronic, industrial, and laboratory equipment, facilitating complex switching tasks with ease and precision.
Operates with minimum 5V and maximum 36V supply voltages. Maximum on state resistance of 125 Ohms enhances signal integrity. Suitable operating temperature range from -40°C to 85°C for harsh conditions. Through hole mount with 16-Pin PDIP packaging for robust mounting.
Dual 4:1 configuration for versatile multiplexing needs. Supports CMOS and TTL output types for broad compatibility. Compact size enables efficient PCB design integration. Ideal for use in industrial control systems, electronic measurement instruments, and equipment requiring reliable multiplexing functions.
Explore more components within the Electronics & Electricals category on EnvMart to complete your project's needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a minimum supply voltage of 5V and a maximum supply voltage of 36V.
The maximum on state resistance for this unit is 125 Ohms, ensuring efficient signal switching.
It functions reliably within an operating temperature range of -40°C to 85°C, making it suitable for diverse environments.
The device supports CMOS and TTL output types, providing broad compatibility for various applications.
This model measures 21.33 mm in length, 7.11 mm in width, and 3.81 mm in height.
This multiplexer contains 2 elements per chip, configured as a dual 4:1 multiplexer.
It utilizes a through hole mount type, which is standard for PCB integration.
It is suitable for industrial control systems, electronic measurement instruments, and other equipment requiring reliable multiplexing functions.
The device is packaged in a 16-Pin PDIP format, facilitating easy integration into circuits.
This model belongs to the CMOS logic family, ensuring compatibility with various digital systems.
The country of origin for this product is India.
The DG409DJ-E3 is part of the DG409 series of multiplexers.
