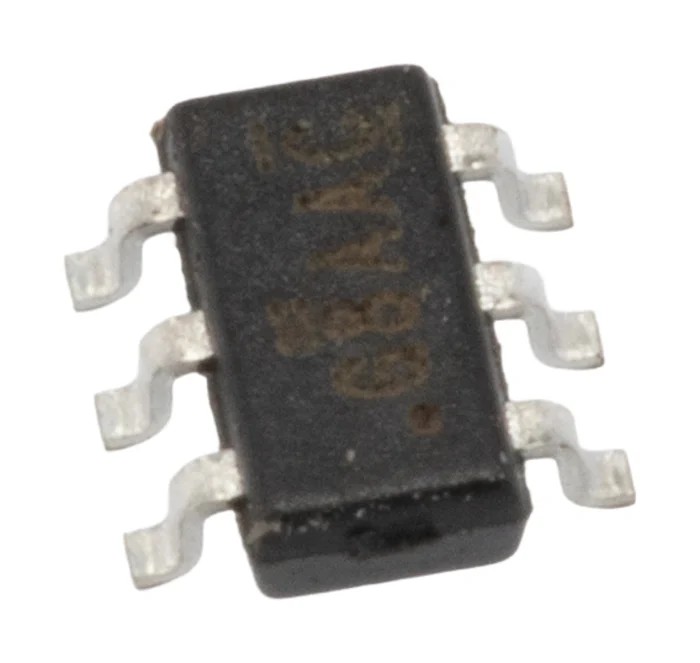

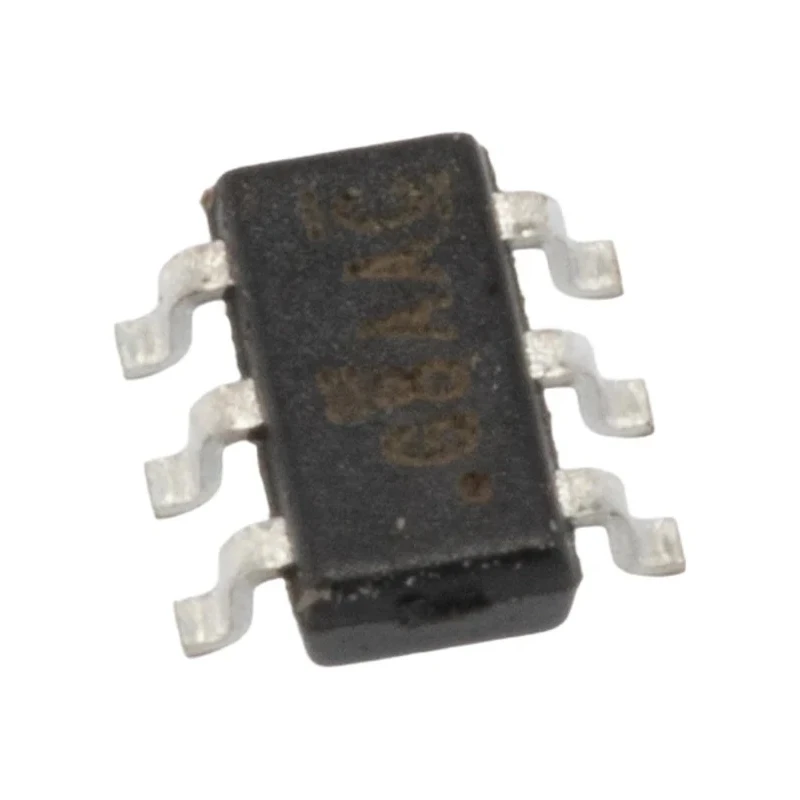

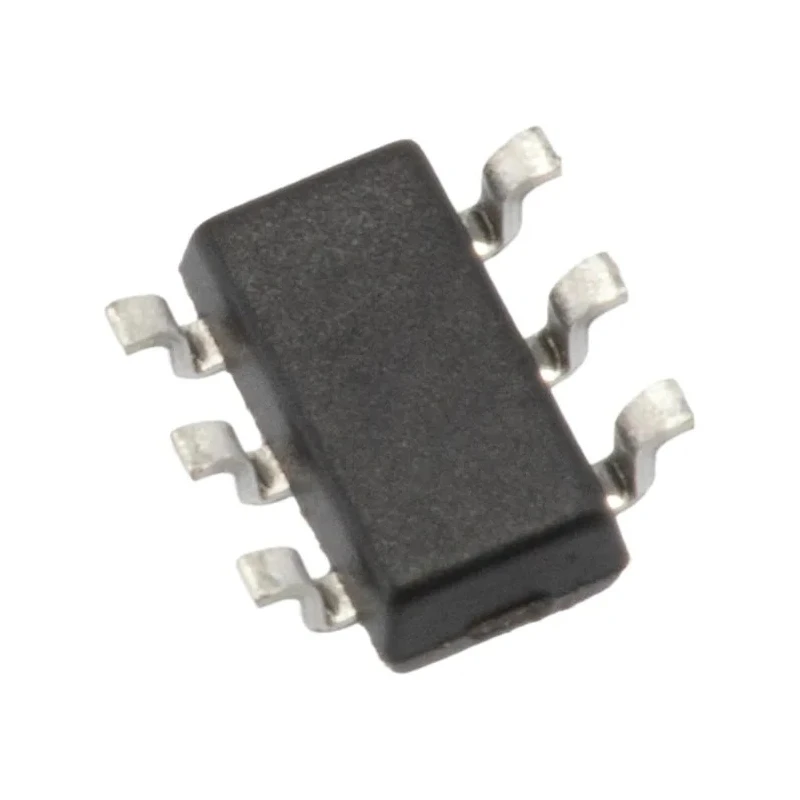

Vishay Analogue Switch 1 CMOS Dual SPST 6-Pin TSOP DG468DV-T1-E3

Vishay DG468DV-T1-E3 analogue switch features a CMOS dual SPST configuration housed in a compact 6-pin TSOP surface-mount package. It supports a broad supply voltage range, from -4.5V minimum to 36V maximum, suitable for various high-voltage switching applications. The device operates over a temperature range of -40°C to 85°C, making it robust for industrial and commercial environments.

This analogue switch is designed for signal routing in mixed-signal circuits, enabling two independent channels controlled from a single chip. The maximum on-state resistance of 20Ω ensures low insertion loss for precise signal transmission, compatible with both CMOS and TTL logic families for control signal interfacing.

Applications include analogue signal routing in multichannel systems, switching audio paths in compact consumer devices, and multiplexing sensor inputs in industrial equipment. The device’s surface-mount TSOP package facilitates automated PCB assembly and is compliant with the RoHS directive, ensuring restricted substance compliance for environmental safety.

Wide supply voltage range of ±4.5 to 36V supports high-voltage systems. Low on-state resistance of 20Ω provides efficient signal switching. Operating temperature from -40°C to 85°C ensures broad environmental tolerance. Dual SPST configuration enables two independent switching channels.

Surface-mount 6-pin TSOP package optimized for automated PCB placement. Compatibility with CMOS and TTL logic families for flexible control. RoHS compliant for environmentally responsible manufacturing. Ideal for industrial, laboratory, and electronic circuit applications requiring signal multiplexing.

Choose Vishay DG468DV-T1-E3 for reliable and efficient Analogue Switching solutions in mixed-signal electronics. Explore more electronic components and multiplexer ICs at EnvMart.
