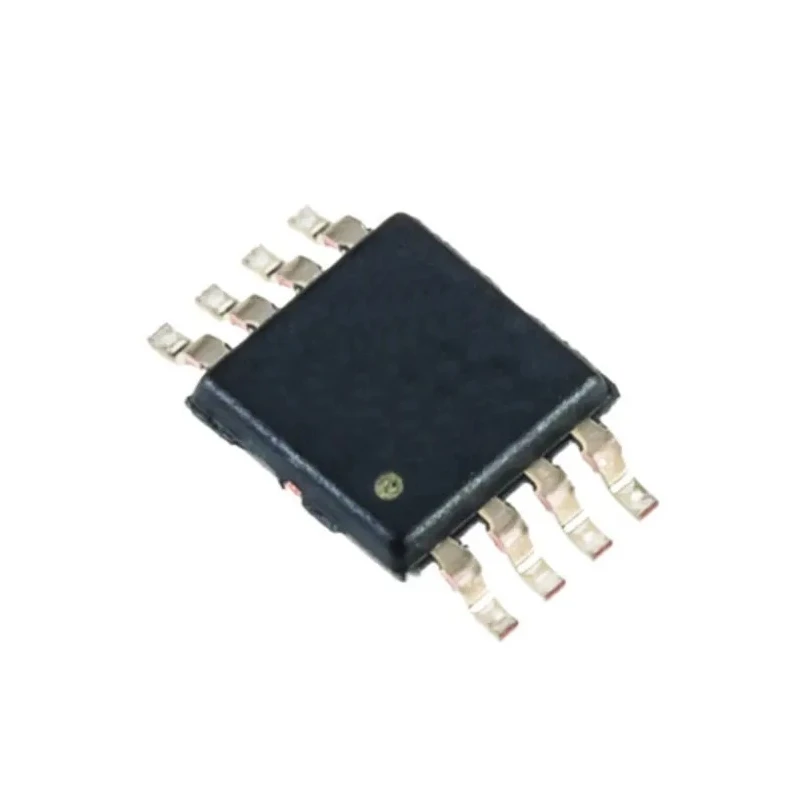

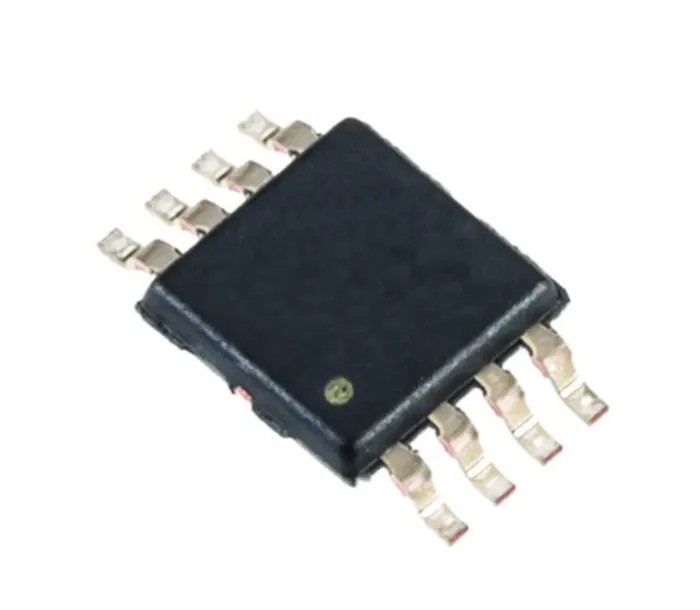

Texas Instruments Analogue Switch 2 CMOS Dual SPST 8-Pin VSSOP TS5A23166DCUR

Texas Instruments TS5A23166DCUR is a high-performance analogue switch featuring 2 CMOS dual SPST switches encapsulated in an 8-Pin VSSOP package. It provides reliable signal switching in compact electronic designs and is suitable for a broad range of industrial and semiconductor applications.

This device operates efficiently over a wide supply voltage range of 1.65V to 5.5V, delivering low on-state resistance of 1.2 ohms to minimize signal loss. Its CMOS logic family ensures low power consumption while maintaining high switching performance.

The package dimensions are compact with a length of 2.3mm, width of 2mm, and a height of 850μm, supporting surface mounting techniques common in PCBs. It reliably operates in ambient temperatures spanning from -40°C to 85°C, making it suitable for robust environmental conditions.

The TS5A23166DCUR contains two independent single-pole single-throw switches, allowing flexible analogue signal routing and isolation. This functionality helps minimize duplicate circuitry and enhances efficient signal routing in electronic systems.

The device operates within a supply voltage range of 1.65V to 5.5V. Maximum on-state resistance is low at 1.2 ohms, ensuring efficient signal conduction. Supports surface mount technology with a compact VSSOP package. Operates reliably across a wide temperature range from -40°C to 85°C.

Logic family type is CMOS with dual single-pole single-throw (SPST) configuration. The chip consists of 2 independent switches, each controlled separately. Small form factor with dimensions: 2.3mm length, 2mm width, and 850μm height.

Certified RoHS compliant for environmental safety. Ideal for industrial, electronic component, and semiconductor applications requiring analogue signal switching.

This analogue switch is extensively used in electronic products, power supply systems, multiplexers, and demultiplexers where precise and low-loss signal control is essential. It aligns with RoHS environmental standards, reinforcing sustainability in manufacturing.
