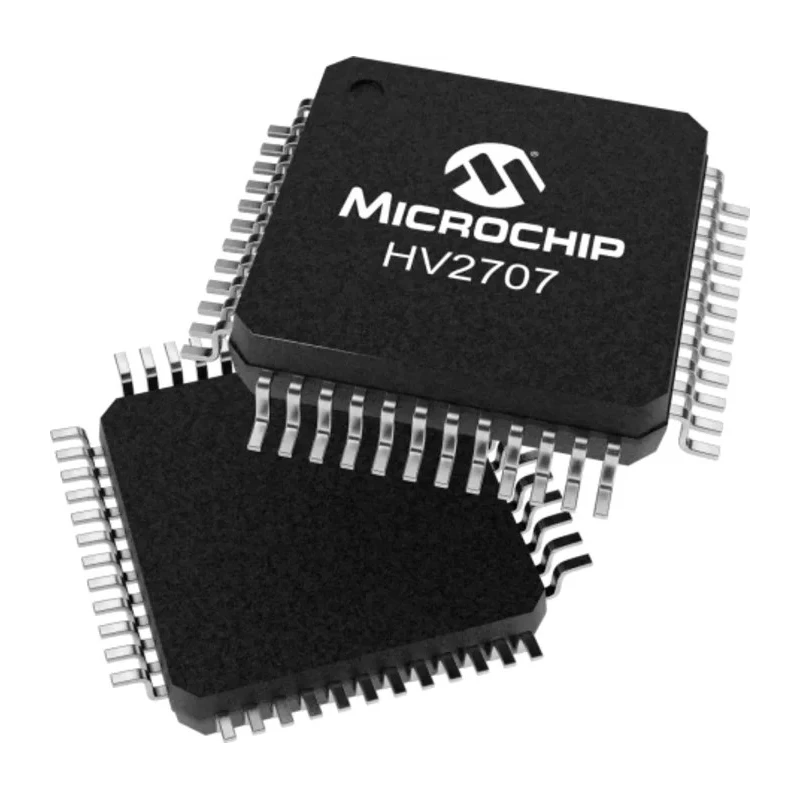

Microchip High Voltage Analogue Switch, 1 CMOS Multiplexer, Surface Mount 48-Pin LQFP HV2707T-C/R8X
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 7mm |
| Model | HV2707T-C/R8X |
| Width | 7mm |
| Mount Type | Surface |
| Series | HV2707 |
| Maximum Operating Temperature | 70°C |
| Package Type | LQFP |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 48 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 6.3V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 4.5V |
| Multiplexer/Demultiplexer | Multiplexer |
| Maximum On State Resistance | 23Ω |
Key Features
- The device features 16 channels supporting analogue signal voltages up to ±100V.
- It operates with a single +5V or +6V bias supply for efficient power management.
- Low harmonic distortion and ultra-low quiescent current less than 10 μA ensure minimal signal interference.
- Maximum on-state resistance is rated at 23 ohms for reliable switching performance.
- The multiplexer can handle a 66 MHz data shift clock frequency suitable for high-speed applications.
- Environmental operating temperature range is from 0°C to 70°C, suitable for various industrial environments.
- The compact 7mm × 7mm × 1mm package supports surface mount technology for PCB integration.
- The device complies with RoHS standards ensuring environmentally friendly manufacturing.
Product Description
The Microchip HV2707T-C/R8X is a high-voltage analogue switch implemented with CMOS technology, packaged in a 48-pin LQFP surface mount form factor. It is designed for applications requiring a high-voltage switching capability controlled by low-voltage signals, making it ideal for medical ultrasound imaging, piezoelectric transducer drivers, and printer controls.
This device supports up to 16 channels with analogue signal voltages up to ±100V, controlled via a single +5V or +6V bias supply, which simplifies power supply design. The maximum on-state resistance is 23Ω, which ensures efficient and reliable switching with low signal loss.
Operating at a data shift clock frequency of up to 66 MHz, the HV2707T-C/R8X enables high-speed analog signal multiplexing. It features very low harmonic distortion and extremely low quiescent current under 10 microamperes, optimizing performance for sensitive signal processing tasks commonly found in industrial, medical, laboratory, and manufacturing applications.
Physically, the component is compact with a 7 mm by 7 mm footprint and a height of 1 mm, making it highly suitable for surface mount PCB assembly. The device complies with RoHS environmental standards, ensuring compliance with global environmental regulations.
Provides 16 channels for high-voltage analogue switching applications. Operates with only a single low voltage +5V or +6V supply. Ultra-low quiescent current of less than 10 μA for power efficiency. Maximum on-state resistance of 23Ω ensures signal integrity.
High speed data transfer capability up to 66 MHz. Meets RoHS standards for environmental safety.
This Microchip Analogue Switch is suitable for advanced electronics requiring multiplexing for high voltage signals in fields like industrial automation, medical devices, manufacturing, test and measurement, and communications equipment.
Explore the extensive range of semiconductor and multiplexer & demultiplexer ICs in the Electronics & Electricals category on EnvMart to find compatible components and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HV2707T-C/R8X can support analogue signal voltages up to ±100V.
It operates within a temperature range of 0°C to 70°C, making it suitable for various industrial environments.
The maximum on-state resistance is rated at 23 ohms, ensuring reliable switching performance.
It operates with a single +5V or +6V bias supply, which simplifies power supply design.
This multiplexer can handle a data shift clock frequency of up to 66 MHz, suitable for high-speed applications.
The dimensions of the HV2707T-C/R8X are 7 mm in length, 7 mm in width, and 1 mm in height.
It is packaged in a 48-pin LQFP (Low-Profile Quad Flat Package) suitable for surface mount technology.
Yes, the HV2707T-C/R8X complies with RoHS standards, ensuring environmentally friendly manufacturing.
It features an ultra-low quiescent current of less than 10 μA, optimizing performance for sensitive applications.
The HV2707T-C/R8X supports up to 16 channels for high-voltage analogue switching applications.
This multiplexer belongs to the CMOS logic family, making it suitable for low-voltage control signals.
It is ideal for applications such as medical ultrasound imaging, piezoelectric transducer drivers, and printer controls.
