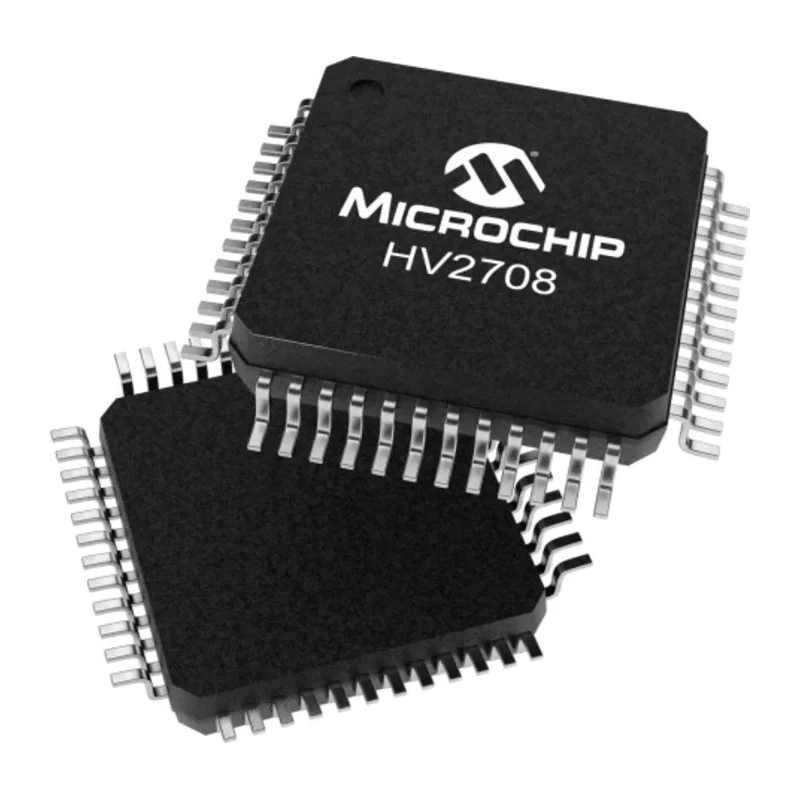

Microchip Analogue Switch, 1 CMOS, Multiplexer, 48-Pin LQFP, 4.5-6.3 V Supply HV2708T-C/R8X

Microchip HV2708T-C/R8X is a high-voltage analogue switch that integrates a single CMOS multiplexer element in a 48-pin LQFP surface mount package. It operates efficiently with a low harmonic distortion, delivering reliable switching for analog signals up to ±100 V while requiring only a low voltage supply between 4.5 V and 6.3 V. The device features ultra-low quiescent current below 10 µA and low parasitic capacitance, optimizing energy efficiency and signal fidelity.

This multiplexer IC supports a high data shift clock frequency of 66 MHz, making it suitable for high-speed applications in industrial instrumentation, medical ultrasound imaging systems, printing devices, and piezoelectric transducer drivers. Its robust operating temperature range from 0°C to 70°C ensures reliable operation in diverse environments.

The Microchip HV2708T-C/R8X features a surface mount LQFP package measuring 7 mm x 7 mm x 1 mm, facilitating compact PCB layouts. The device is RoHS compliant, meeting global environmental and safety regulations, and does not require additional high-voltage supplies beyond the standard +5 V or +6 V bias supply.

Low harmonic distortion for precise signal integrity. Ultra-low quiescent current less than 10 µA conserves power. High voltage analog signal capability up to ±100 V. 66 MHz data shift clock frequency for fast switching.

Low parasitic capacitance minimizes signal loss. Surface mount LQFP 48-pin package enables compact design. Maximum on-state resistance of 23 ohms ensures efficient conduction. Operating temperature range from 0°C to 70°C for reliable performance.

Applications include medical, industrial, and printing equipment. RoHS compliant to environmental standards.

This Analogue Switch is a practical choice for engineers designing high voltage multiplexing circuits requiring reliable performance and low power consumption. For more electronic components and multiplexer ICs, explore the Electronics & Electricals category on EnvMart.
