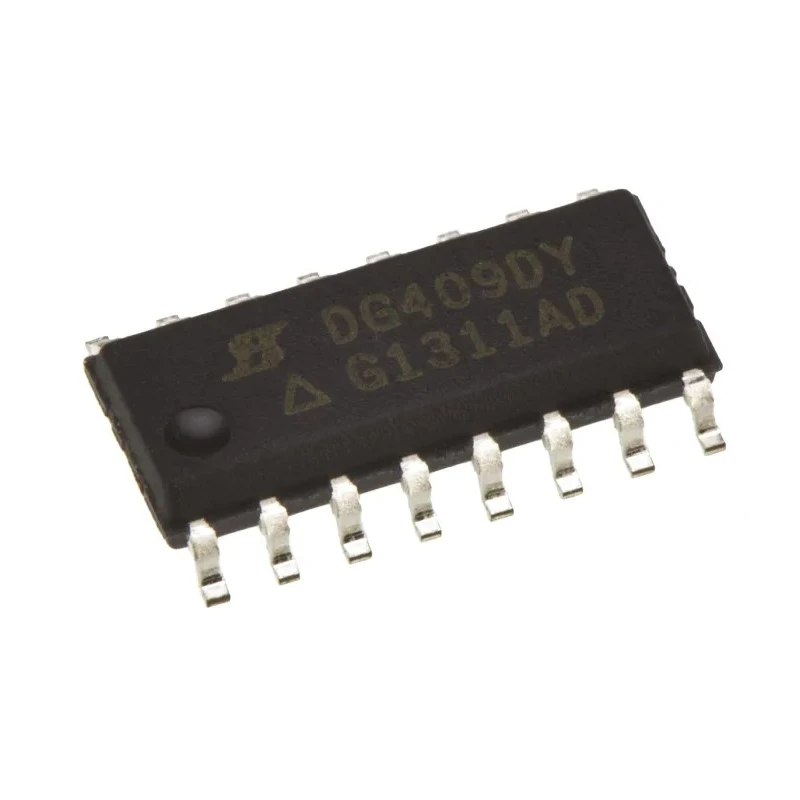

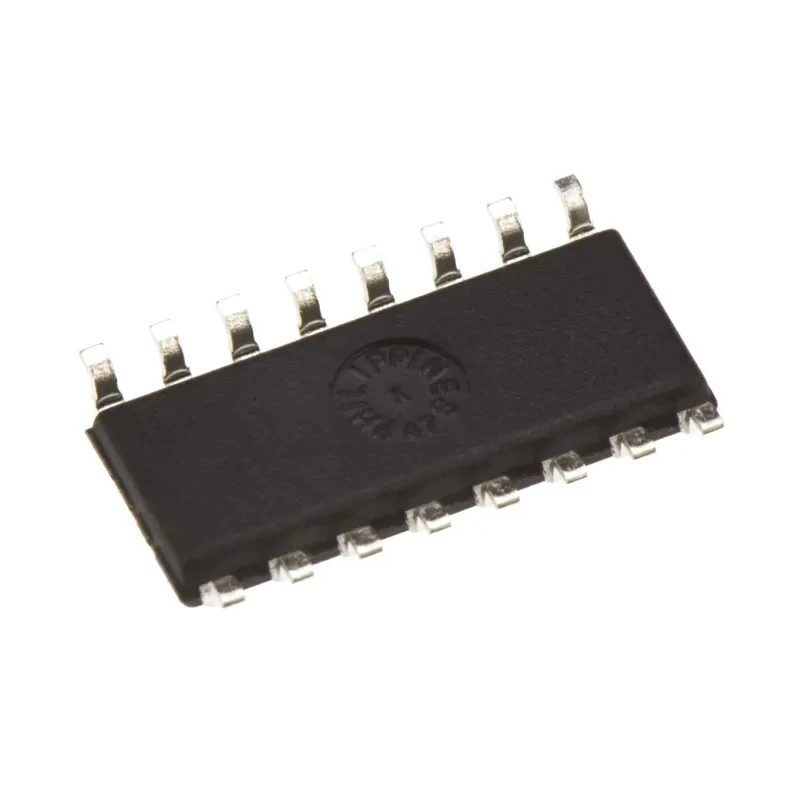

Vishay Analogue Switch Dual 4:1 Multiplexer 2 CMOS Elements 16-Pin SOIC DG409DY-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG409DY-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG409 |
| Configuration | Dual 4:1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 36V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 5V |
| Multiplexer/Demultiplexer | Multiplexer |
| Maximum On State Resistance | 125Ω |
| Dual 4 | 1 configuration enables two independent multiplexing channels |
| Configuration Dual 4 | 1 |
| DG409DY Vishay, Multiplexer Dual 4 | 1, 15 V, 18 V, 24 V, 28 V, 16-Pin SOICBrand: Vishay |
| Vishay DG409DY-E3 Analogue Switch, 2 CMOS Dual 4 | 1, Multiplexer, 16-Pin SOIC |
Key Features
- Operates with supply voltage ranging from 5V to 36V.
- Low on-state resistance of 125 ohms minimizes signal loss.
- Compatible with CMOS and TTL logic output levels.
- Wide operating temperature range from -40°C to 85°C.
- Surface mount design for efficient PCB integration.
- Suitable for industrial controls and data acquisition systems.
- Supports multiplexing audio and control signals in compact devices.
- Robust design suited for harsh environments and mixed-signal applications.
Product Description
Vishay DG409DY-E3 is a high-quality analogue switch designed for industrial and electronic applications requiring reliable signal multiplexing and routing. This device incorporates dual 4:1 multiplexers with two CMOS elements, housed in a compact 16-pin SOIC package optimized for surface mount technology.
Operating across a broad voltage range from 5V to 36V, it supports both CMOS and TTL output logic, enabling compatibility with various control circuits and systems. The device features a low on-state resistance of 125 ohms, which reduces signal attenuation and ensures efficient signal transfer.
The wide operating temperature range from -40°C to 85°C makes the DG409DY-E3 suitable for demanding environments in industrial controls, data acquisition, test equipment, and instrumentation panels. Its dual 4:1 configuration allows for two independent multiplexing channels, providing compact and versatile signal switching capabilities.
Installation is simplified through the 16-pin SOIC surface mount package compatible with automated pick-and-place assembly, enhancing manufacturing efficiency. This analogue switch is also well-suited for audio signal selection, sensor input switching, and multiplexing control lines, making it a versatile component for mixed-signal systems.
Operates with supply voltage ranging from 5V to 36V. Low on-state resistance of 125 ohms minimizes signal loss. Compatible with CMOS and TTL logic output levels. Wide operating temperature range from -40°C to 85°C. Surface mount design for efficient PCB integration.
Suitable for industrial controls and data acquisition systems. Supports multiplexing audio and control signals in compact devices. Robust design suited for harsh environments and mixed-signal applications. 16-pin SOIC package simplifies automated assembly processes.
Two independent multiplexing channels available on a single device.
Available in the DG409 series, this Analogue Switch from Vishay offers reliable and efficient solution for select signal routing and multiplexing in various electrical and electronic applications. Explore additional Vishay products and components on EnvMart for more industrial and laboratory solutions.
