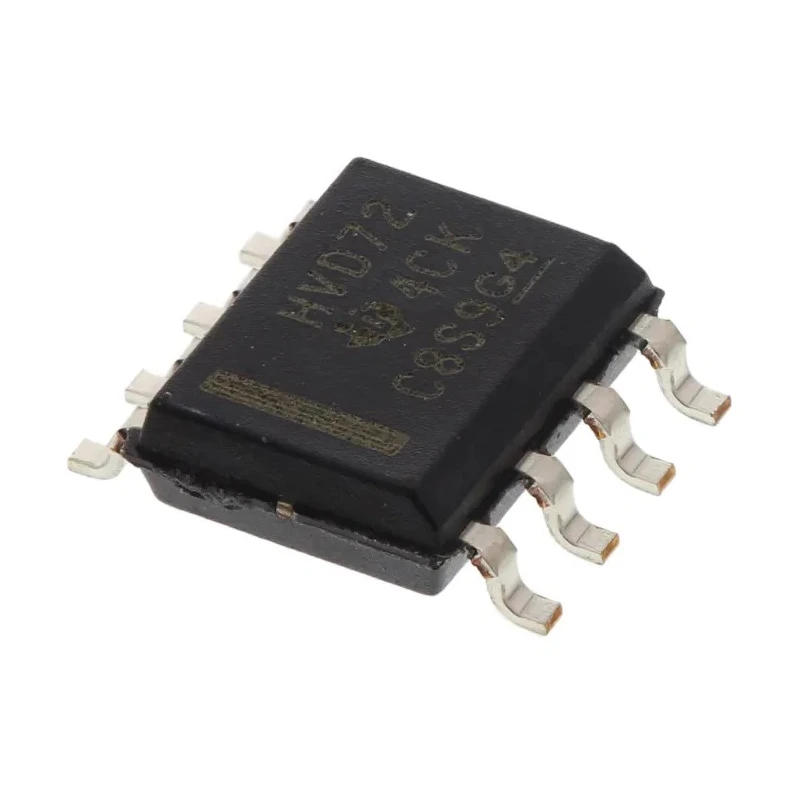

Texas Instruments Line Transceiver Differential Non-Inverting 8-Pin SOIC SN65HVD72D

Texas Instruments SN65HVD72D line transceiver is an advanced differential Line Transceiver IC designed for robust data communication interfaces. It features a non-inverting polarity and differential input/output suitable for RS-485 and RS-422 communication protocols. The device supports a single communication channel and is packaged in an 8-pin SOIC surface mount package, measuring 5mm in length, 3.98mm in width, and 1.75mm in height.

This line transceiver operates on a supply voltage range of 3 to 3.6 volts and is optimized for low power consumption with a supply current of 60mA. The maximum propagation delay time is 100 nanoseconds, allowing for efficient high-speed data transmission. The device supports operating temperatures from -40°C to 125°C, making it suitable for demanding industrial and commercial electronic applications.

Key electrical characteristics include a maximum high-level output current of -8mA and a maximum low-level output current of 8mA, ensuring reliable drive capability for connected communication lines. Its non-inverting polarity maintains signal phase, critical in differential signaling applications to ensure signal integrity.

The SN65HVD72D is primarily used in industrial automation, manufacturing control systems, and network communication interfaces requiring differential signal transmission. Its compact SOIC footprint enables high-density PCB layouts in electronic and electrical industrial equipment. Manufactured in Malaysia, this product is offered in new condition, backed by the reliability and quality assurance of Texas Instruments.

Operates within supply voltages from 3V to 3.6V. Supports differential input and output for reliable data transmission. Single-channel line transceiver designed for RS-485 and RS-422 standards. Compact 8-pin SOIC surface-mount package with dimensions 5mm x 3.98mm x 1.75mm.

Wide operating temperature range from -40°C to 125°C suitable for industrial environments. Low supply current consumption of 60mA ensures energy efficiency. Maximum propagation delay time of 100ns at specified load capacitance.

Non-inverting polarity ensures signal integrity without inversion. Reliable performance with maximum high-level output current of -8mA and low-level output current of 8mA. Manufactured in Malaysia with new product condition.

Explore more specialized line interface ICs and semiconductor solutions at EnvMart for your industrial and laboratory electronic applications.
