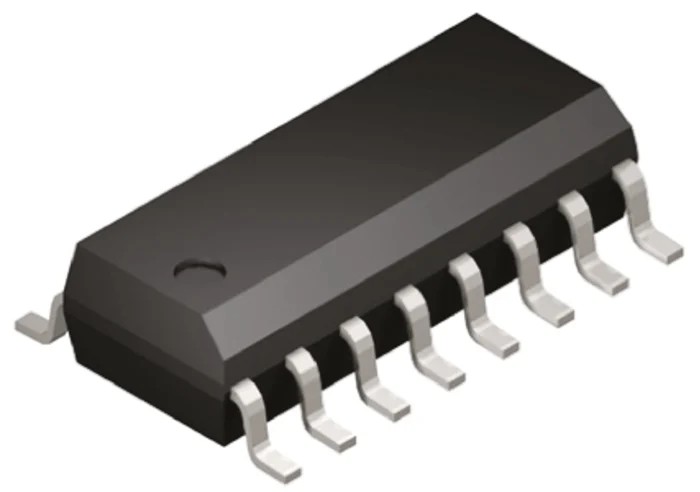

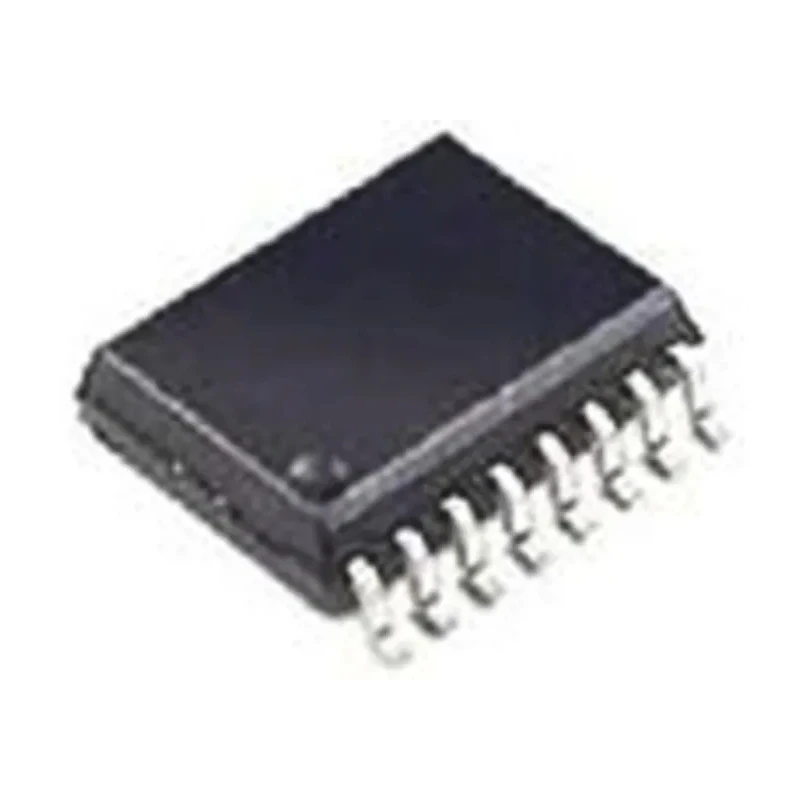

Vishay Analogue Switch, 2 CMOS Dual DPST, 16-Pin SOIC DG405DY-E3

Vishay DG405DY-E3 analogue switch is a high-performance 2 CMOS dual DPST switch housed in a 16-pin SOIC package with dimensions 10mm length, 4mm width, and 1.55mm height. It operates with a maximum supply voltage of 44V and ensures efficient signal integrity with a maximum on state resistance of 55Ω. Designed for surface mount mounting, this component is optimized for space-saving and reliable electronic circuit applications.

The device operates within a broad ambient temperature range from -40°C up to 85°C, guaranteeing robust performance under various industrial and commercial environmental conditions. It complies with RoHS standards, ensuring environmentally safe manufacturing processes and materials.

Vishay's DG405DY-E3 analogue switch is extensively used in multiplexing and demultiplexing tasks within semiconductor electronics, making it suitable for applications in telecommunications, signal processing, instrumentation, and general electronics manufacturing. The CMOS/TTL output type also enables seamless interfacing with digital logic circuits.

This switch is manufactured in the Philippines under strict quality control, assuring reliability and longevity. Supplied in a tube format, it facilitates automated assembly lines and improves production efficiency.

This Analogue Switch supports dual DPST configuration for effective and compact switching. The moderate on state resistance ensures minimal signal degradation. Compact SOIC package supports high-density PCB layouts. CMOS technology facilitates low power consumption and high noise immunity.

RoHS certification confirms compliance with environmental standards. Wide operating temperature range allows use in diverse environments. Supplied tube packaging supports automated insertion processes. Explore the Vishay range and other semiconductor components for advanced industrial and electronic design needs at EnvMart.
