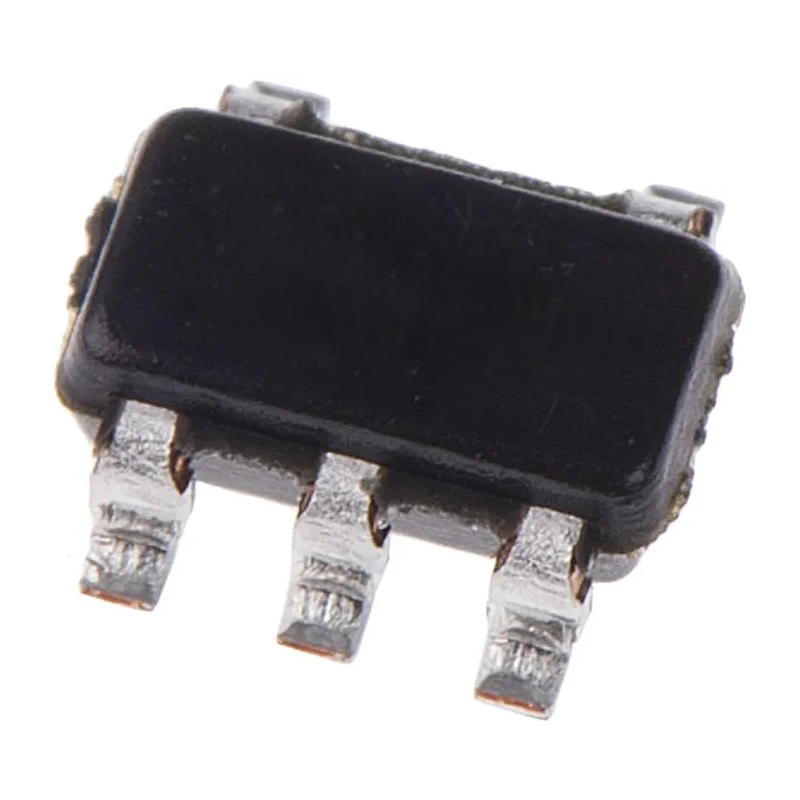

Texas Instruments Buffer & Line Driver 3 State Inverting 5-Pin SOT-23 SN74LVC1G240DBVR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.1mm |
| Length | 2.75mm |
| Model | SN74LVC1G240DBVR |
| Width | 1.75mm |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | 3 State |
| Series | SN74LVC1G240 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 1 |
| Operating Voltage | 1.65 to 5.5 V |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | Buffer, Driver |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ CL | 3.7ns |
| Supply Current | 10μA |
| Maximum Low Level Output Current | 32mA |
Key Features
- Belongs to the 74LVC1G240 family with low-voltage CMOS logic technology.
- Operates over 1.65 to 5.5 V supply voltage, compatible with LVTTL/TTL inputs and LVCMOS outputs.
- Single channel inverting buffer and driver functionality.
- Surface mount 5-pin SOT-23 package for compact PCB mounting.
- Fast propagation delay time of 3.7 ns at CL load.
- Operating temperature range from -40°C to 125°C.
- Maximum output current of ±32 mA for driving moderate loads.
- Low supply current of 10 μA for power-sensitive applications.
Product Description
Texas Instruments SN74LVC1G240DBVR is an advanced Buffer & Line Driver integrated circuit designed for use in low-voltage applications requiring inverting logic buffering with 3-state output control. It belongs to the 74LVC1G240 family that uses low-voltage CMOS technology, making it highly suitable for power-sensitive electronic systems.
The device operates across a versatile supply voltage range of 1.65 to 5.5 V, allowing compatibility with modern logic levels such as LVTTL and TTL inputs and offering LVCMOS output signals. Its single-ended input buffer and driver output support signal integrity and isolation in line interface scenarios.
Housed in a space-saving 5-pin SOT-23 surface mount package, it facilitates compact PCB designs essential for densely packed assemblies in telecommunications, computing, and industrial automation. The maximum high and low-level output currents of ±32 mA provide robust drive capability for moderate loads, while maintaining low quiescent current consumption of only 10 μA.
Performance is optimized with a maximum propagation delay time of 3.7 nanoseconds, delivering fast switching speeds required in timing-critical signal buffering and line driver applications. The device is rated for operation between -40°C and +125°C, ensuring reliability in harsh industrial environments.
Additional features include superior ESD protection surpassing JESD 2274 standards and latch-up immunity exceeding 100 mA as per JESD 78 Class II, making it a resilient choice for industrial and automotive electronic designs.
This single gate buffer & line driver device is designed for signal integrity and performance in line interface applications. Ideal for industrial, telecommunications, computing, and embedded system environments requiring low-voltage operation.
Compact surface mount package supports efficient PCB layout and assembly. Offers robust drive current, low power consumption, and wide temperature range. Complies with industry-standard ESD and latch-up protection for enhanced device longevity.
Explore the full range of Semiconductors and line interface ICs in the EnvMart catalog to find optimal solutions for your electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a supply voltage range of 1.65 to 5.5 V.
The maximum propagation delay time is 3.7 nanoseconds at a specified load capacitance.
It is compatible with LVTTL/TTL inputs and provides LVCMOS output signals.
It can provide a maximum output current of ±32 mA for driving moderate loads.
The operating temperature range is from -40°C to +125°C.
It comes in a 5-pin SOT-23 surface mount package.
The supply current is 10 μA, making it suitable for power-sensitive applications.
It belongs to the LVC logic family, which is designed for low-voltage applications.
The dimensions are 1.1 mm in height, 2.75 mm in length, and 1.75 mm in width.
Key features include low-voltage operation, fast propagation delay, low supply current, and compatibility with various logic levels.
It is suitable for applications in telecommunications, computing, and industrial automation requiring low-voltage operation.
