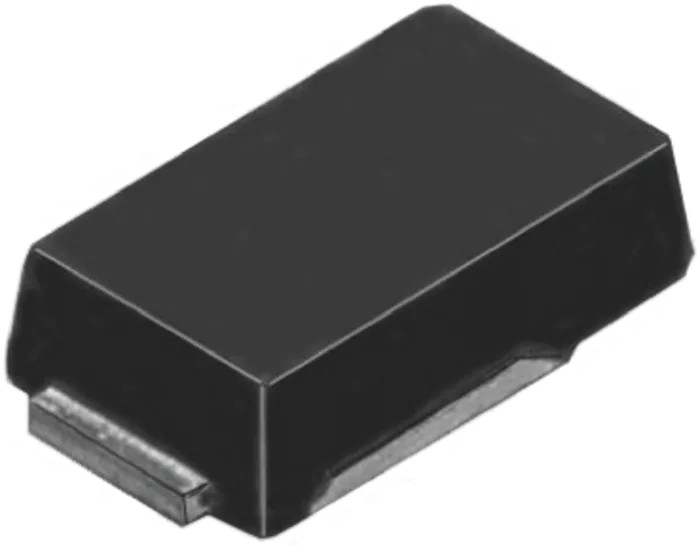

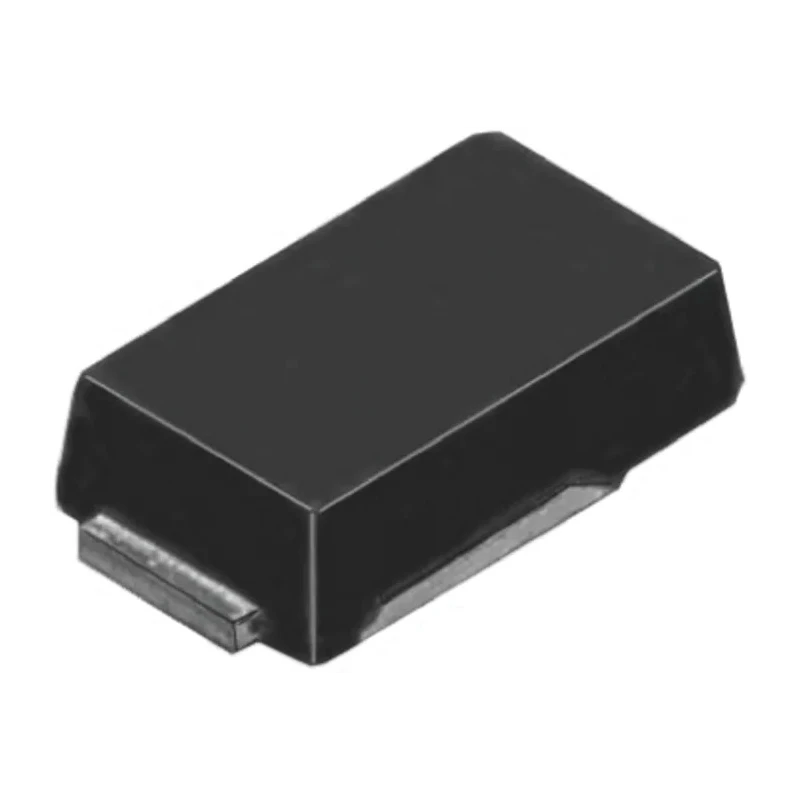

Vishay 60 V 1 A Surface Mount Schottky Diode 2-Pin SMP Package SS1P6L-M3/84A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 3.61mm |
| Model | SS1P6L-M3/84A |
| Width | 2.18mm |
| Mount Type | Surface |
| Series | SS1P6L |
| Maximum Operating Temperature | 150°C |
| Package Type | SMP |
| Minimum Operating Temperature | -55°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-3705PBrand: VishayManufacturers Part No.: SS1P6L-M3/84A |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.38V |
| Vishay 60 V 1 A Diode Schottky 2-Pin SMP SS1P6L-M3/84ARS Stock No. | 710-3705PBrand: VishayManufacturers Part No.: SS1P6L-M3/84A |
Key Features
- Maximum continuous forward current of 1 ampere.
- Peak reverse repetitive voltage rating of 60 volts.
- Low maximum forward voltage drop of 0.38 volts.
- Operating temperature range from -55°C to 150°C.
- Extremely fast switching action with low reverse recovery time.
- Peak non-repetitive forward surge current of 50 amperes.
- Compact 2-pin SMP package with small dimensions.
- Manufactured in China with standard quality controls.
Product Description
Vishay SS1P6L-M3/84A is a high performance Schottky rectifier diode designed for surface mount applications, providing a continuous forward current of 1 ampere and capable of withstanding a peak reverse repetitive voltage of 60 volts. It features a low forward voltage drop of 0.38 volts which results in reduced power loss and improved efficiency in electronic circuits.
Structurally housed in a compact 2-pin SMP package with small dimensions of 3.61 mm length, 2.18 mm width, and 1.15 mm height, this diode supports optimized PCB layout and assembly. It operates reliably over a wide temperature range from -55°C to 150°C, making it suitable for harsh industrial environments.
Its extremely fast switching action and minimal reverse recovery time help to reduce switching losses, making it ideal for use in power supply, DC/DC converters, and other power management systems in industrial, manufacturing, and electronics assembly sectors.
The diode has a peak non-repetitive forward surge current of 50 amperes, providing robustness against transient surges. With a single diode configuration and two pins, it is easy to implement in various electrical and electronic designs requiring efficient rectification and minimal energy dissipation.
Maximum continuous forward current: 1 A. Peak reverse repetitive voltage: 60 V. Maximum forward voltage drop: 0.38 V. Operating temperature range: -55°C to 150°C. Peak non-repetitive surge current: 50 A. Compact SMP package with 2 pins.
Length 3.61 mm, width 2.18 mm, height 1.15 mm. Manufactured in China. Suitable for industrial and power electronic applications.
This Vishay Schottky diode is a reliable choice for professionals involved in designing power electronics, automotive electronics, industrial machinery, and consumer electronics. Explore more components in the Schottky Diodes & Rectifiers category at EnvMart for a comprehensive selection of semiconductor diodes.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 1 ampere.
It has a peak reverse repetitive voltage rating of 60 volts.
The maximum forward voltage drop is 0.38 volts.
This diode operates reliably over a temperature range from -55°C to 150°C.
The peak non-repetitive forward surge current is rated at 50 amperes.
The dimensions of the SMP package are 3.61 mm in length, 2.18 mm in width, and 1.15 mm in height.
It supports surface mounting due to its compact 2-pin SMP package.
The diode is configured as a single diode.
The peak reverse current is specified at 100 microamperes (100μA).
This model is suitable for power supply, DC/DC converters, and other power management systems in industrial and electronics assembly sectors.
It is manufactured in China under standard quality controls.
The series name of this diode is SS1P6L.
