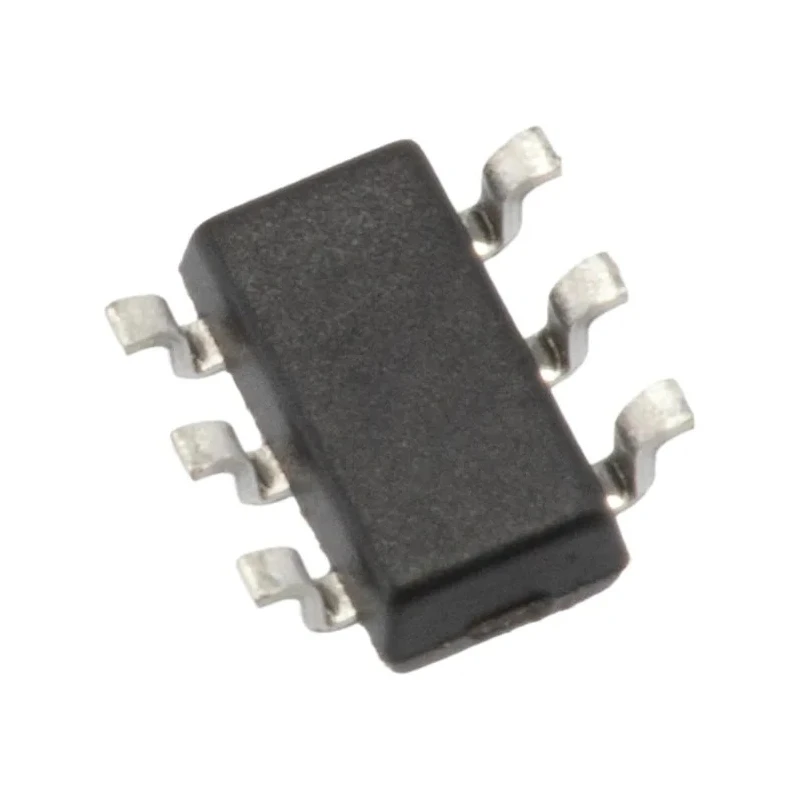

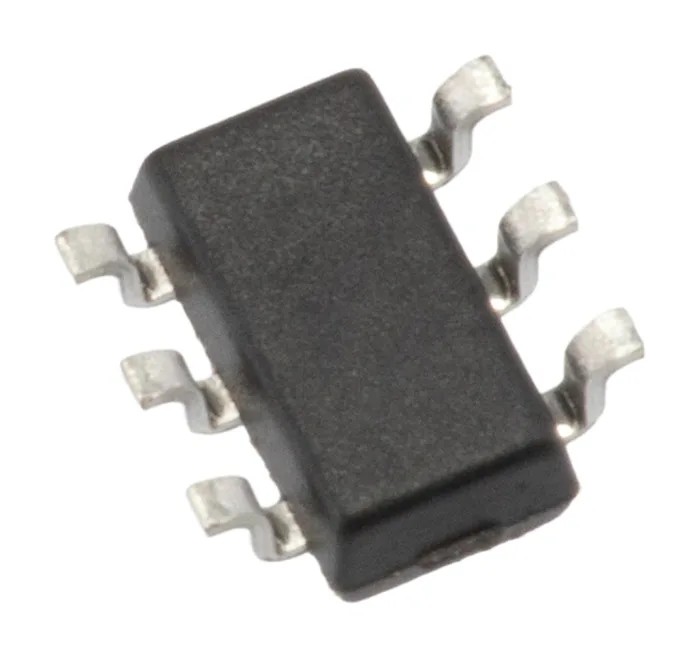

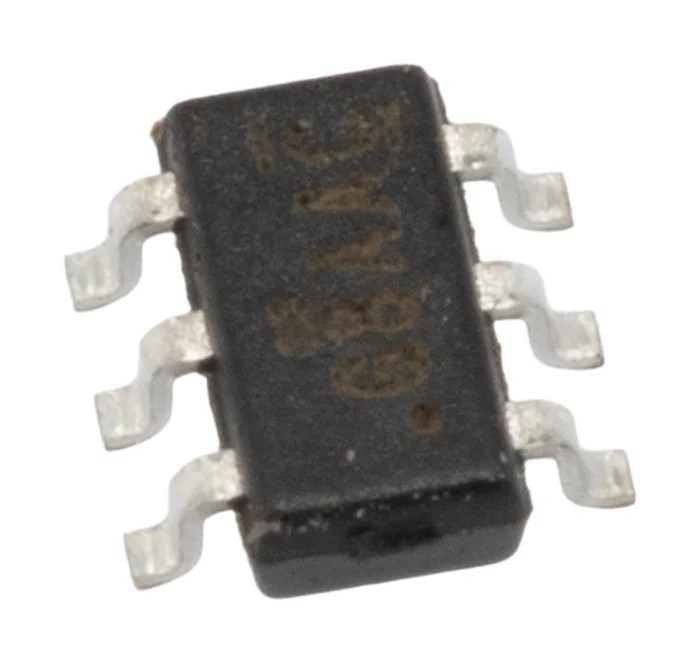

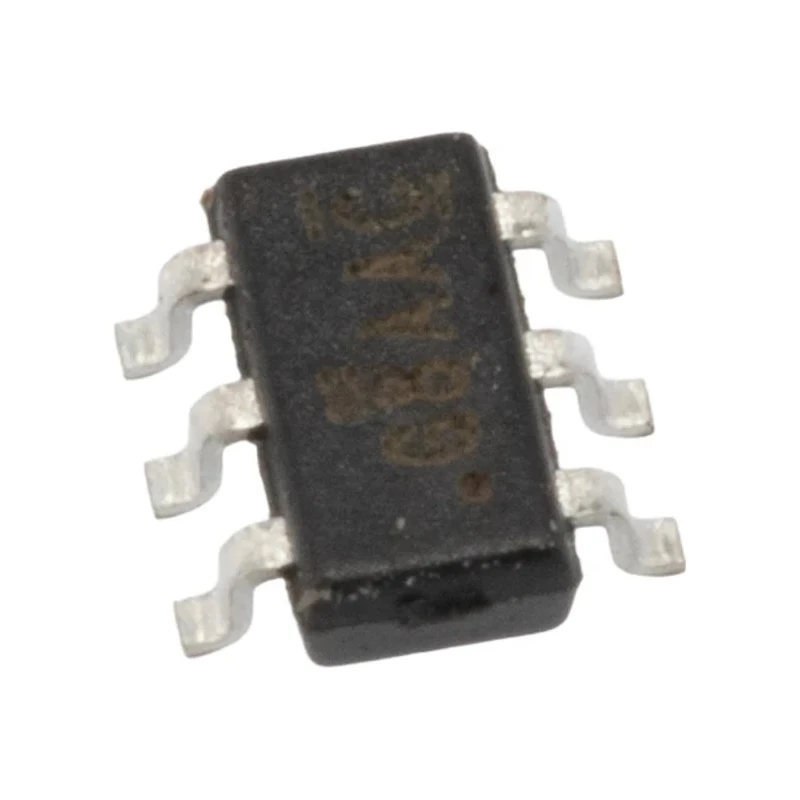

Vishay Analogue Switch, 1 CMOS Dual SPST, 6-Pin TSOP, Surface Mount, ±4.5V to 36V Supply, -40°C to 85°C DG468DV-T1-E3

Vishay DG468DV-T1-E3 analogue switch is a precisely engineered dual SPST analogue switch designed for high-voltage signal routing applications. It comes in a compact 6-pin Thin Small Outline Package (TSOP), facilitating automated PCB placement for efficient manufacturing processes.

Operating within a wide supply voltage range from ±4.5V up to 36V, the device accommodates harsh electrical environments while maintaining a maximum on-state resistance of 20 ohms, which minimizes signal loss and distortion in analogue circuits.

This component is rated to function reliably from -40°C to 85°C, providing a broad thermal tolerance suitable for industrial, commercial, laboratory, and mixed-signal electronic systems. Its CMOS logic family enables direct interfacing with CMOS and TTL logic devices for simple control and integration.

The DG468DV-T1-E3 contains a single switching element configured as dual single-pole single-throw (SPST), allowing two independent channels of signal switching controlled by one integrated chip. This feature makes it ideal for multiplexing sensor inputs, analogue audio switching, and complex signal routing in compact electronic devices.

Manufactured to meet RoHS compliance, it ensures reduced environmental impact and meets electronic assembly standards. Its small footprint with dimensions 3.05 mm length, 1.65 mm width, and 1 mm height, and surface-mount design makes it suitable for dense circuit boards.

Supports supply voltage range from ±4.5 to 36 volts. Operates efficiently between -40 degrees Celsius and 85 degrees Celsius. Features a maximum on-state resistance of 20 ohms ensuring low insertion loss. Dual SPST configuration offers two independent switching channels in one chip.

Compact 6-pin TSOP surface mount package enables automated PCB assembly. Compatible with CMOS/TTL logic families for direct logic-level control. Complies with RoHS directives reducing hazardous substances. Small dimensions: 3.05 mm L x 1.65 mm W x 1 mm H.

This analogue switch is widely used in industrial equipment, mixed-signal control boards, audio devices, multiplexers, and sensor switching applications where low on-resistance, high-voltage switching, and compact form factor are critical.
