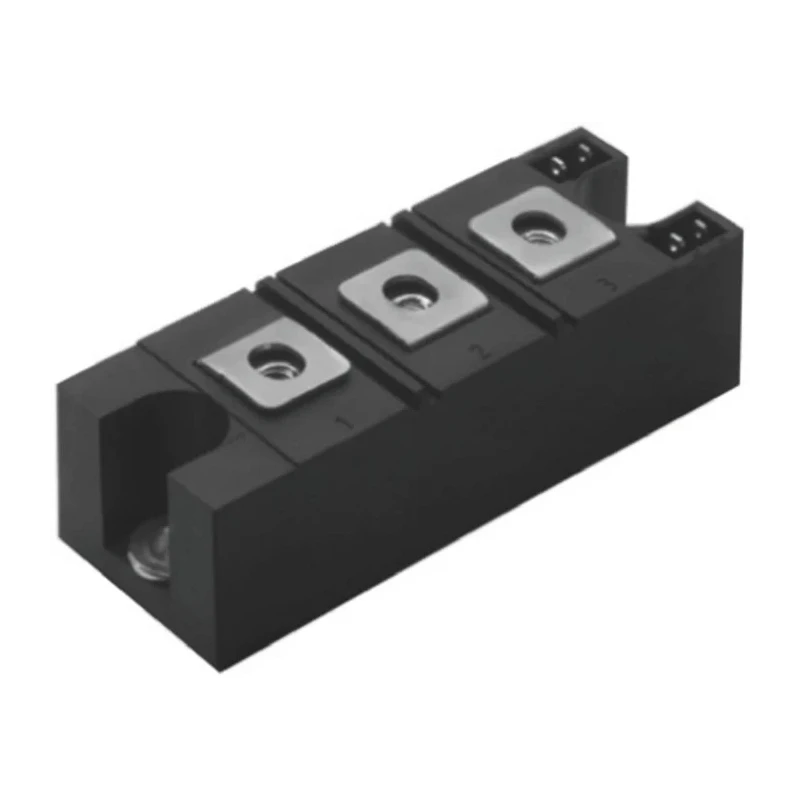

Vishay Thyristor Module 1600 V 5.1 kA 160 A 270 mA 1.54 V INT-A-PAK 7-Pin VS-VSKT162/16PBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 30mm |
| Length | 94mm |
| Model | VS-VSKT162/16PBF |
| Width | 35mm |
| Mount Type | Panel |
| Maximum Operating Temperature | 125°C |
| Package Type | INT-A-PAK |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-5068PBrand: VishayManufacturers Part No.: VS-VSKT162/16PBF |
| Pin Count | 7 |
| Rated Average On-State Current Irms | 160A |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 5.1kA |
| Maximum Gate Trigger Current Igt | 270mA |
| Maximum Holding Current Ih | 200mA |
| Maximum Gate Trigger Voltage Vgt | 4V |
| Peak On-State Voltage | 1.54V |
| Repetitive Peak Off-State Current | 50mA |
Key Features
- Rated average on-state current Irms of 160 A provides reliable conduction capacity.
- Panel mount type with INT-A-PAK packaging ensures secure installation.
- Maximum gate trigger current is 270 mA, enabling precise triggering control.
- Thyristor module incorporates 7 pins for versatile connectivity.
- Designed to operate up to 125°C for high-temperature industrial environments.
- Peak on-state voltage is 1.54 V ensuring efficient conduction with low losses.
- Maximum holding current of 200 mA stabilizes switching performance.
- Repetitive peak off-state current limited to 50 mA to minimize leakage.
Product Description
Vishay VS-VSKT162/16PBF Thyristor Module is a high-performance solid-state device designed for power control in industrial, manufacturing, and electronic equipment applications. Operating at a repetitive peak reverse voltage of 1600 V and a surge current rating of 5.1 kA, this module is engineered for robustness in demanding electrical environments.
The module employs a panel mount design with an industrial standard package type INT-A-PAK. It houses two thyristors configured as Silicon-Controlled Rectifiers (SCR), featuring a 7-pin interface for seamless integration into power control circuits. The maximum gate trigger current of 270 mA along with a holding current of 200 mA enables reliable switching precision, while the device can function effectively up to 125°C, supporting usage in harsh thermal environments.
This thyristor module is suitable for applications including battery chargers, welding equipment, regulated power supplies, and temperature and speed control systems. Its peak on-state voltage of 1.54 V ensures efficient conduction with minimal power losses. The module is encapsulated with an electrically isolated base plate, providing 3500 VRMS isolation from the metal base, enhancing device safety.
The compact dimensions (94 mm length, 35 mm width, 30 mm height) allow for space-saving installation in control panels. It does not conform to automotive standards but is UL approved under file E78996, underscoring its quality and reliability.
Rated average on-state current Irms of 160 A. Repetitive peak reverse voltage of 1600 V. Surge current rating of 5.1 kA for high transient tolerance. Panel mount type for reliable mechanical installation. Maximum gate trigger current of 270 mA and trigger voltage of 4 V.
Maximum operating temperature of 125°C. 7-pin configuration for diverse connection requirements. Electrically isolated base plate with 3500 VRMS isolation. Suitable for industrial power control and switching applications.
Explore Vishay's broad range of semiconductor and Thyristor Modules on EnvMart for quality power electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current of this module is 160 A, providing reliable conduction capacity.
This thyristor module can handle a maximum repetitive peak reverse voltage of 1600 V.
The surge current rating for this model is 5.1 kA, allowing it to tolerate high transient currents.
It is designed to operate at a maximum temperature of 125°C, suitable for high-temperature industrial environments.
This thyristor module incorporates a 7-pin configuration for versatile connectivity options.
The peak on-state voltage is 1.54 V, ensuring efficient conduction with low losses.
The maximum gate trigger current for this model is 270 mA, which enables precise triggering control.
The maximum holding current for this module is 200 mA, which stabilizes its switching performance.
The dimensions of this module are 94 mm in length, 35 mm in width, and 30 mm in height.
This thyristor module uses a panel mount type for secure installation.
The repetitive peak off-state current is limited to 50 mA to minimize leakage.
Yes, this thyristor module is UL approved under file E78996, indicating compliance with safety standards.
