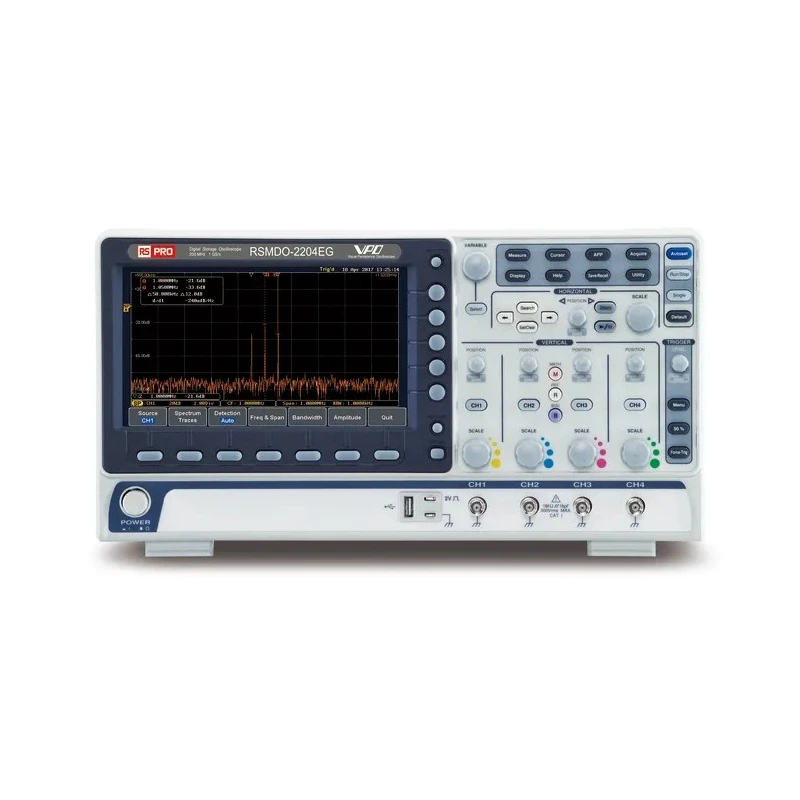

RS PRO 200 MHz Bench Mixed Domain Digital Oscilloscope, 4 Channels, 10Mpts Memory, 8 inch TFT LCD RSDM-2000EG Series 180-4800

RS PRO 180-4800 200 MHz Bench Mixed Domain Digital Oscilloscope from the RSDM-2000EG series is a high-precision instrument tailored for comprehensive electronic signal testing and waveform analysis. Designed with a bandwidth of 200 MHz and 4 channels, this bench oscilloscope suits both laboratory and industrial environments.

This oscilloscope integrates a spectrum analyzer and a dual channel 25 MHz arbitrary waveform generator, offering enhanced functionality beyond basic signal measurement. Its high-resolution 8 inch WVGA TFT LCD screen provides clear and detailed visualization of waveforms in real time.

Capable of handling memory depths of up to 10 million points and supporting a waveform refresh rate of 120,000 per second, it enables users to capture and analyze intricate signal details effectively. Real-time sample rates reach 1 GSa/s per channel on 2-channel models and 1 GSa/s maximum on 4-channel models, ensuring significant signal fidelity.

Interfaces include USB 2.0 host and device ports and serial communication buses such as CAN, IIC, LIN, RJ45, SPI, UART for versatile connectivity and control. Serial bus triggering and decoding support further enhance its utility for modern digital electronics development and debugging.

Additional features include mask testing, segmented memory sections with waveform search, frequency response analysis via included software, and long-duration data logging covering up to 1000 hours. These functions make it suitable for engineers, technicians, and quality assurance teams involved in electrical and electronic product design, manufacturing, and maintenance.

This unit’s compact dimensions of 384 mm width, 208 mm height, and 127.3 mm depth make it convenient for bench use. It operates on mains power with USB plug type connectivity. 200 MHz bandwidth with 4 analog channels for comprehensive signal capture.

Mixed-domain oscilloscope type with advanced spectral analysis capabilities. Large 8 inch TFT LCD display for crisp waveform viewing. 10Mpts deep memory supports detailed and segmented waveform recording. Integrated arbitrary waveform generator for signal simulation.

Extensive serial bus protocol analysis: I2C, SPI, UART, CAN, LIN. Fast waveform refresh rate of 120,000 per second for dynamic signals. Mask testing and data logging functions enhance quality control procedures. Multiple connectivity options including USB 2.0 and network interfaces.

Ideal for industrial, laboratory, field service, and electronic development applications.
