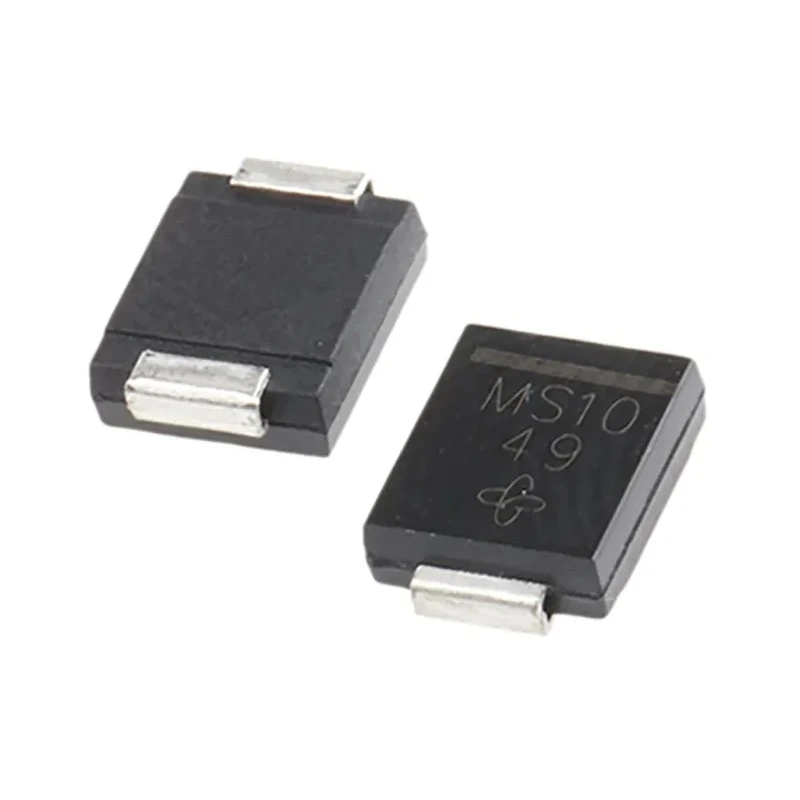

Vishay 100 V 3 A Schottky Diode 2-Pin Surface Mount DO-214AB SS3H10-E3/57T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SS3H10-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | SS3H10 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -65°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-0984Brand: VishayManufacturers Part No.: SS3H10-E3/57TDistrelec Article No.: 30152482 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 0.65V |
| Vishay 100 V 3 A Diode Schottky 2-Pin DO-214AB SS3H10-E3/57TRS Stock No. | 700-0984Brand: VishayManufacturers Part No.: SS3H10-E3/57TDistrelec Article No.: 30152482 |
Key Features
- Maximum continuous forward current of 3 A provides reliable operation.
- Reverse repetitive voltage rating of 100 V ensures robust blocking capability.
- Low maximum forward voltage of 0.65 V reduces power losses.
- Operating temperature range from -65°C to 175°C suits demanding environments.
- Compact DO-214AB package with dimensions 7.11 mm length, 6.22 mm width, and 2.42 mm height.
- Peak non-repetitive forward surge current capability of 100 A for transient conditions.
- Extremely fast switching and low reverse recovery losses typical of Schottky diodes.
Product Description
Vishay SS3H10-E3/57T is a high-performance Schottky diode designed for surface mount applications in power and discrete semiconductor electronics. This 2-pin diode in a DO-214AB (SMC) package offers a maximum continuous forward current of 3 A and a peak reverse repetitive voltage of 100 V, making it suitable for applications needing efficient switching and low conduction losses.
The diode features a low maximum forward voltage drop of 0.65 V and an operating temperature range from -65°C up to 175°C. Its compact form factor with dimensions 7.11 mm length, 6.22 mm width, and 2.42 mm height facilitates integration in dense circuit layouts and PCB designs requiring surface mount technology.
Its peak non-repetitive forward surge current of 100 A provides transient robustness, while the extremely short reverse recovery time inherent to Schottky rectifiers results in minimal switching losses. These characteristics make the diode ideal for power supplies, voltage clamping, and rectification in industrial, automotive, and electronic manufacturing environments.
Vishay’s SS3H10-E3/57T supports highly efficient power management in devices requiring fast switching diode protection and low forward voltage applications. The diode is RoHS compliant and suited for modern electronics production workflows.
Maximum continuous forward current of 3 A for reliable operation. Peak reverse repetitive voltage rating of 100 V for robust blocking. Low forward voltage drop of 0.65 V reduces energy losses. Wide operating temperature range from -65°C to 175°C.
Compact DO-214AB package simplifies PCB assembly. Surge current capability of 100 A supports transient events. Extremely fast switching minimizes power loss and heat. Explore the Vishay range on EnvMart to find complementary semiconductors for your industrial, laboratory, construction, HVAC, manufacturing, or electronics projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay SS3H10-E3/57T Schottky diode is 3 A.
This model has a peak reverse repetitive voltage rating of 100 V, ensuring robust blocking capability.
The diode features a low maximum forward voltage drop of 0.65 V, which helps to reduce power losses.
The operating temperature range for this diode is from -65°C to 175°C, making it suitable for demanding environments.
The dimensions of the DO-214AB package are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
This model can handle a peak non-repetitive forward surge current of 100 A, providing robustness for transient conditions.
The Vishay SS3H10-E3/57T is designed for surface mounting, facilitating integration into compact circuit layouts.
The diode configuration is single, typical for many applications requiring Schottky rectification.
The peak reverse current for this model is rated at 20 μA, which is typical for Schottky diodes.
Yes, the Vishay SS3H10-E3/57T is RoHS compliant, making it suitable for modern electronics production workflows.
This diode is suitable for applications in power supplies, voltage clamping, and rectification in industrial and automotive environments.
The brand is Vishay and the model is SS3H10-E3/57T, designed for high-performance surface mount applications.
