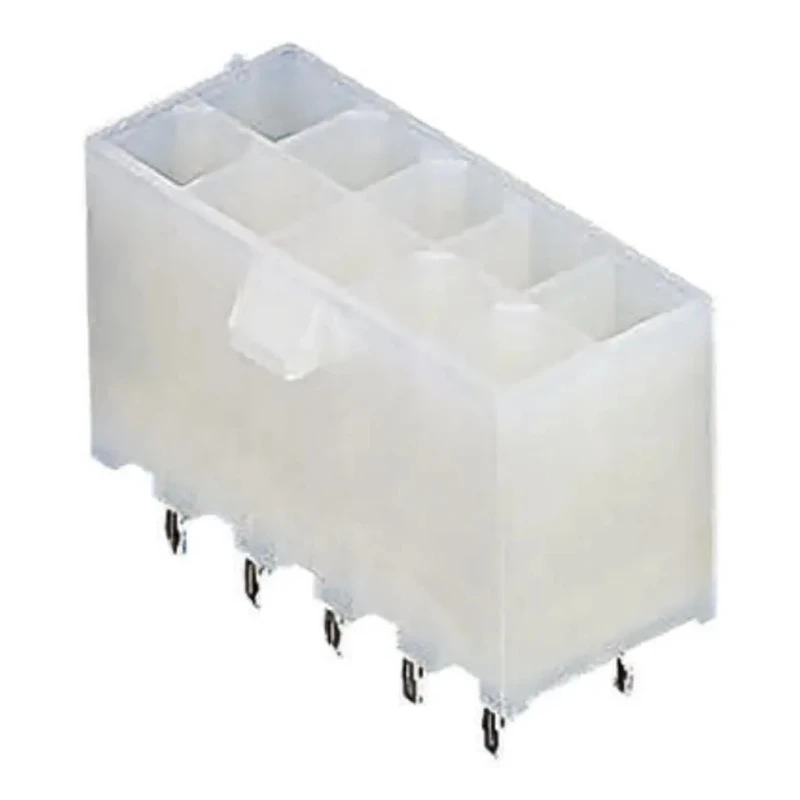

Molex Mini-Fit Plus Series Straight Through Hole PCB Header, 10 Contacts, 4.2 mm Pitch, 2 Row, Shrouded 46015-1002

Molex 46015-1002 Mini-Fit Plus Series Straight Through Hole PCB Header is a high-quality wire-to-board connector featuring 10 contacts arranged in 2 straight rows with a 4.2 mm pitch. It is shrouded to protect the contacts and ensure secure mating, making it ideal for industrial and electronic applications requiring reliable power and signal connections.

The housing is constructed from nylon, offering strong mechanical strength and excellent electrical insulation. The contacts are made of copper alloy with tin plating providing superior electrical performance and corrosion resistance. This connector handles currents up to 12A and voltages up to 600V, suitable for demanding power applications in manufacturing, automation, and power distribution electronics.

The header mounts through the PCB using through-hole technology and features solder termination for durable joints. It operates efficiently in temperatures ranging from -40°C to 105°C, accommodating various environments including industrial and commercial uses.

This product mates with Molex 5557 Series receptacle housings, facilitating system expansions and modular designs. The Mini-Fit Plus HCS design supports high current carrying capability, with snap-in PCB location pegs for secure placement during assembly.

This PCB header is shrouded for enhanced contact protection and features two rows of contacts. It supports a maximum current of 12A and voltage rating of 600V suitable for high-current applications. The housing is made from durable nylon material providing excellent insulation.

The connector has a straight orientation and through-hole mounting for easy PCB installation. Contact material is copper alloy with tin plating, ensuring corrosion resistance and good conductivity. Operating temperature ranges from -40°C to 105°C for wide environmental suitability.

The termination type is solder, compatible with standard soldering processes. Designed for use with Molex 5557 Series receptacle housings to ensure compatibility.

This PCB header is perfect for electronic assembly, industrial controls, automation systems, and power connector applications. For additional related components and high-quality power connectors, browse the Molex range on EnvMart.
