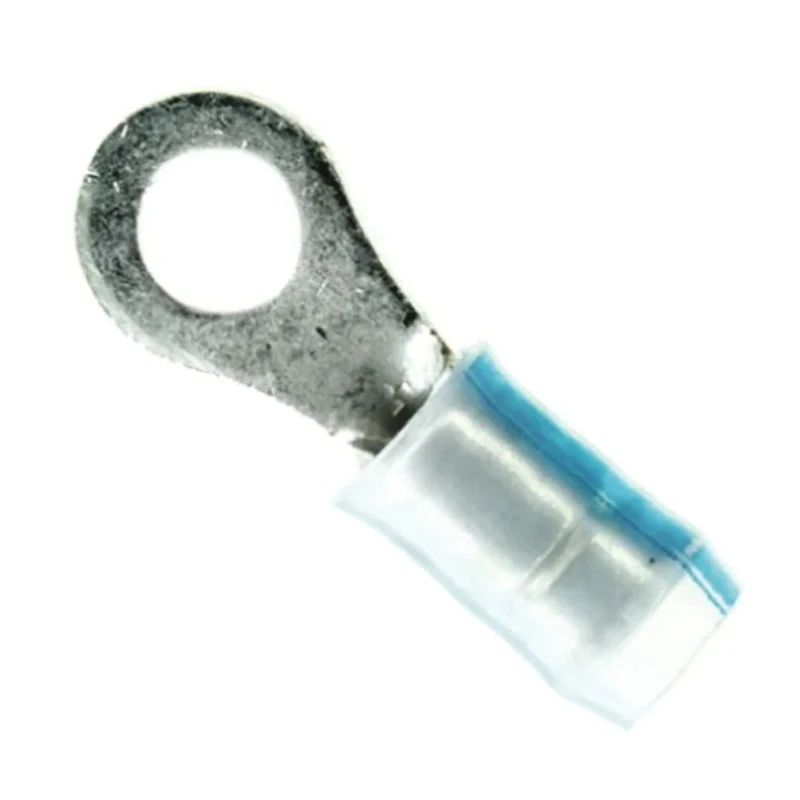

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 16 AWG 14 AWG Wire Size Natural 53417-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Natural |
| THICKNESS | 0.031in |
| Model | 53417-1 |
| Insulation | Insulated |
| Overall Length | 0.844in |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 150°C |
| Insulation Material | Polyvinyl Fluoride |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 0.312in |
| Inner Ring Diameter | 0.171in |
| Stud Size | M4 |
Key Features
- Constructed with high conductivity bright tin-plated copper for excellent electrical performance.
- Features a precision-formed metal wire barrel with serrations for maximum contact and tensile strength.
- Enclosed in a copper sleeve and encased in polyvinyl fluoride color-coded insulation for durability.
- Overall length is 0.844 inches with an outer ring diameter of 0.312 inches and inner ring diameter of 0.171 inches.
- Suitable for operating temperatures up to 150°C, ensuring safety and stability under heat.
- Natural color insulation enhances identification and compatibility with wiring standards.
- Thickness of the terminal is 0.031 inches, providing sturdy mechanical strength.
- Ideal for industrial, electronic, and power connector applications requiring secure wire terminations.
Product Description
TE Connectivity 53417-1 PIDG Insulated Ring Terminal M4 Stud Size is engineered for high-quality connections in electronics and industrial wiring. The terminal supports wire sizes between 16 AWG and 14 AWG, ensuring versatility across multiple applications.
This ring terminal is constructed from bright tin-plated copper, delivering excellent conductivity and corrosion resistance. Its precision-formed wire barrel with serrations guarantees maximum tensile strength and secure wire retention after crimping, enclosed in a copper sleeve for additional protection.
The insulation is made from polyvinyl fluoride (PVF2), a durable material offering color coding in natural shade for easy identification. This insulation supports a maximum operating temperature of 150°C, making it suitable for demanding thermal environments.
With an overall length of 0.844 inches, an outer ring diameter of 0.312 inches, and an inner ring diameter of 0.171 inches, this compact terminal fits M4 stud sizes securely. The thickness of 0.031 inches provides mechanical robustness needed for industrial usage.
This product finds applications in industrial electronic assemblies, power connectors, control panels, and other electrical wiring installations where reliable and robust connections are essential.
Constructed with high conductivity bright tin-plated copper. Precision-formed metal wire barrel with serrations for secure crimping. Copper sleeve enclosed and PVF2 insulated for durability. Supports wire sizes 16 AWG to 14 AWG and M4 stud size.
Maximum operating temperature of 150°C for thermal reliability. Natural color for easy identification and compliance. Compact size with strong mechanical construction. Explore the range of TE Connectivity Ring Terminals and connectors in the Electronics & Electricals category on EnvMart for industrial-grade components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal supports wire sizes between 16 AWG and 14 AWG, ensuring versatility for various applications.
The maximum operating temperature of this model is 150°C, making it suitable for demanding thermal environments.
It is constructed from bright tin-plated copper for excellent conductivity and corrosion resistance, and the insulation is made from polyvinyl fluoride.
The overall length is 0.844 inches, with an outer ring diameter of 0.312 inches and an inner ring diameter of 0.171 inches.
The thickness of this terminal is 0.031 inches, providing the mechanical strength required for industrial usage.
The terminal is insulated with polyvinyl fluoride (PVF2), which offers durability and color coding for easy identification.
This terminal is designed for M4 stud sizes, ensuring a secure fit for connections.
The precision-formed metal wire barrel features serrations to ensure maximum contact and tensile strength for secure wire retention after crimping.
It is suitable for industrial electronic assemblies, power connectors, control panels, and other electrical wiring installations requiring reliable connections.
The terminal is manufactured in India.
The contact plating of this terminal is tin, which enhances its conductivity and corrosion resistance.
The natural color of the insulation enhances identification and compatibility with wiring standards, making it easier to use in various applications.
