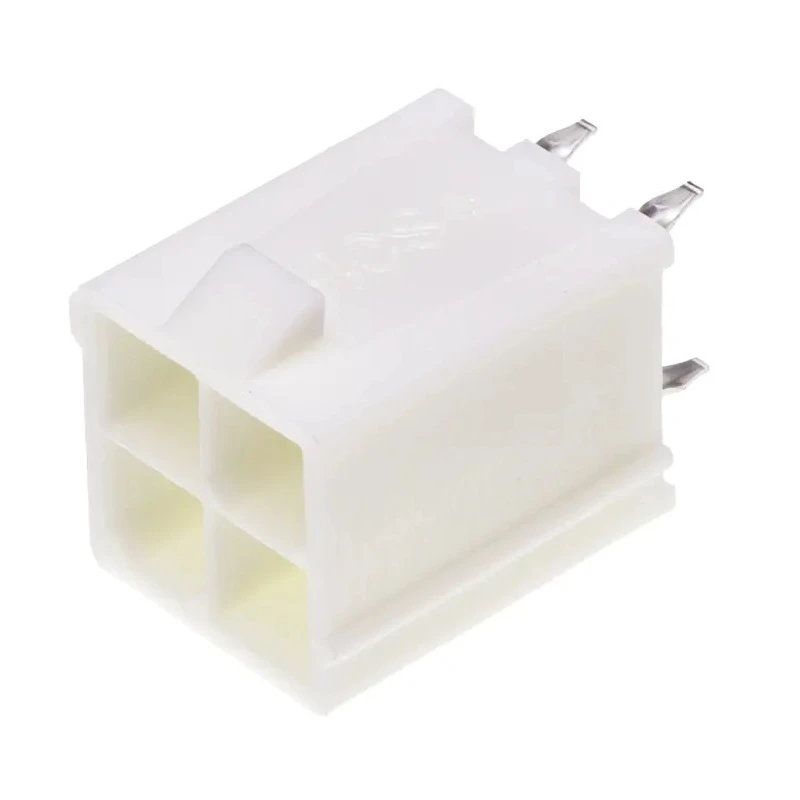

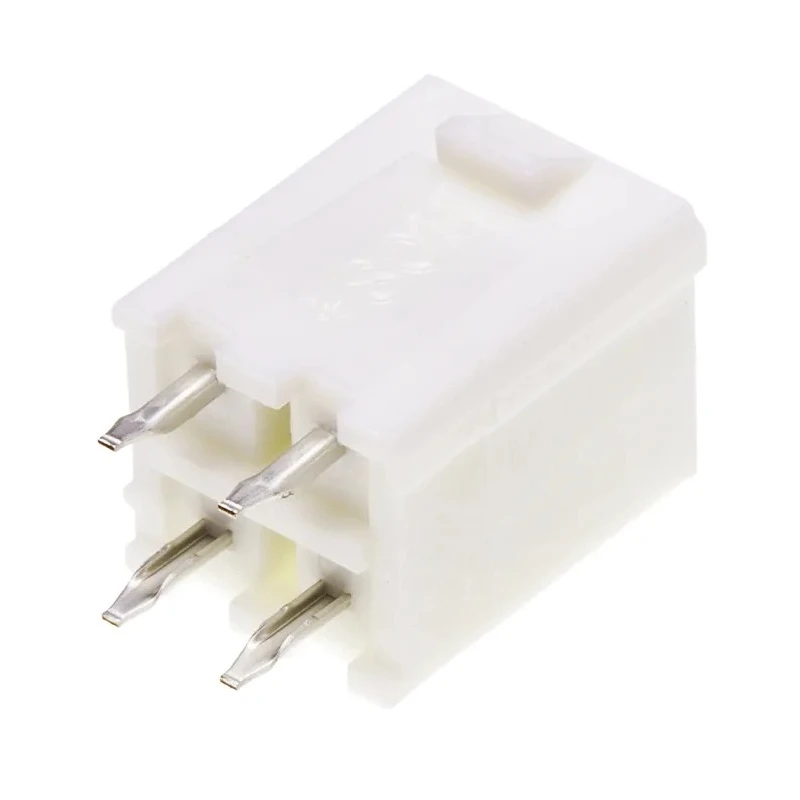

Molex Mini-Fit Plus Series Straight Through Hole PCB Header 4 Contact 4.2 mm Pitch 2 Row Shrouded 46015-0402
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Copper Alloy |
| Series | Mini-Fit Plus |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This header supports a current rating of 12A suitable for high current applications.
- Constructed with a nylon housing and a copper alloy contact material ensuring durability.
- The contacts are tin plated for reliable solder termination.
- Designed for through hole mounting with a wire-to-board connector system.
- The header operates reliably between -40°C and 105°C.
- Rated for 600V, suitable for power connector applications.
- Features a straight orientation and male contact gender for standard connectivity.
- Compatible with Molex 5557 Series receptacle housings to provide system flexibility.
Product Description
Molex 46015-0402 Mini-Fit Plus Series Straight Through Hole PCB Header is designed for power and industrial electronic applications requiring secure wire-to-board connections.
This PCB header features 4 contacts arranged in 2 rows with a pitch of 4.2 mm that supports a high current capacity of up to 12A, dependent on wire size and number of contacts used. The housing is made from durable nylon, offering excellent insulating properties, while the copper alloy contacts are tin plated to provide reliable solder terminations for consistent electrical performance.
The straight orientation and shrouded design provide protection to the contacts and ensure correct mating with connectors. This header is suitable for through hole mounting, ensuring strong mechanical support on PCBs in electronic devices, power supplies, and industrial control systems.
Operating at voltages up to 600V and temperatures ranging from -40°C to 105°C, the 46015-0402 Mini-Fit Plus header is ideal for demanding environments including manufacturing and HVAC systems. It mates specifically with Molex 5557 Series receptacles, enabling flexible configuration in wire harness assemblies.
Supports 12A current for high-power applications. Durable nylon housing provides insulation and mechanical strength. Copper alloy contacts with tin plating ensure reliable solder joints. Through hole mount for secure PCB attachment.
Operating temperature range from -40°C to 105°C for diverse environments. Rated up to 600V for power connector systems. Straight, shrouded design minimizes damage and misalignment. Compatible with Molex 5557 Series receptacle housings.
This Molex Mini-Fit Plus header is commonly used in electronic component assemblies, power distribution units, and industrial automation equipment requiring precise and robust connections. Explore related PCB connectors and wire housings in the EnvMart electronics catalog to find compatible accessories and tools for your projects.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 12A, making it suitable for high current applications.
It is rated for a maximum voltage of 600V, suitable for power connector applications.
The operating temperature range for this header is from -40°C to 105°C, allowing it to function in diverse environments.
The housing is made from nylon, while the contacts are constructed from copper alloy with tin plating for reliable solder terminations.
This model features 4 contacts arranged in 2 rows with a pitch of 4.2 mm.
It is designed for through hole mounting, ensuring strong mechanical support on PCBs.
This header is compatible with a wire-to-board connector system, specifically designed to mate with Molex 5557 Series receptacles.
The orientation of this header is straight, which helps minimize damage and misalignment during connection.
The termination type for this header is solder, providing reliable electrical connections.
This model is shrouded, which provides additional protection to the contacts and ensures correct mating with connectors.
The country of origin for this PCB header is India.
It is commonly used in electronic component assemblies, power distribution units, and industrial automation equipment requiring robust connections.
