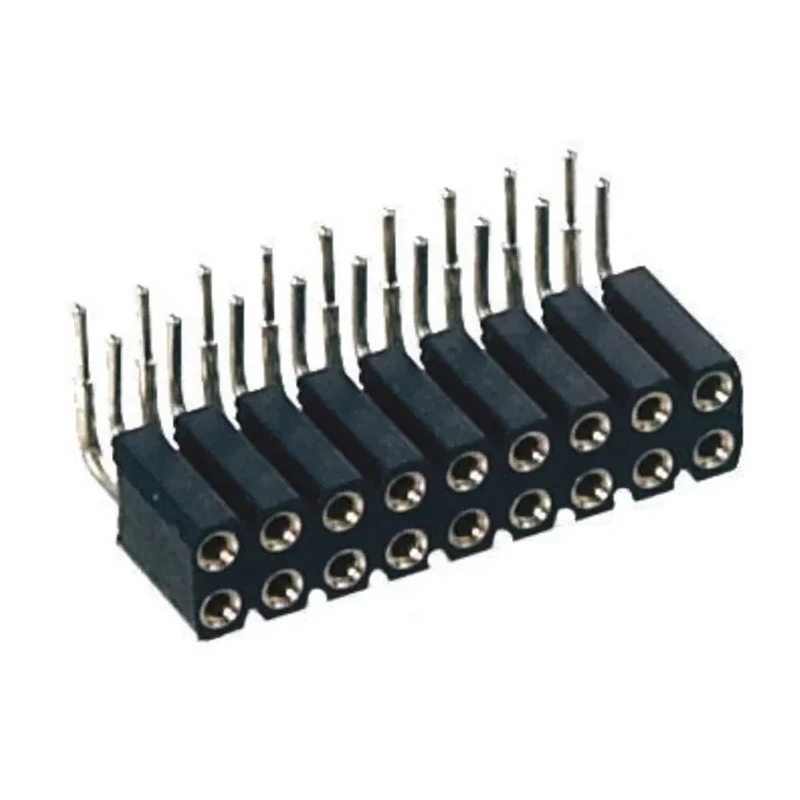

Preci-Dip 803 Series Right Angle Surface PCB Socket 16-Contact 2 Row 2.54 mm Pitch Solder 803-87-016-20-001101

Preci-Dip 803-87-016-20-001101 is a right angle surface mount PCB socket designed for board-to-board connections, featuring 16 contacts in 2 rows with a 2.54 mm pitch. This socket supports a maximum current of 12A and a voltage rating of 150V, making it suitable for industrial electronics and manufacturing applications requiring reliable and precise connectors.

The housing material is black glass-filled polyester, providing robustness and electrical insulation. Contacts are made from beryllium copper alloy, known for strength and conductivity, enhanced by gold flash plating for corrosion resistance and superior signal integrity.

This connector facilitates a secure and stable connection on printed circuit boards with a surface mount, right angle configuration, optimizing space on complex PCBs. The socket operates reliably in a wide temperature range from -55°C to 125°C, supporting demanding industrial and laboratory environments.

Manufactured in Switzerland, the Preci-Dip 803 series underpins exacting quality standards essential for electronics assembly, prototyping, and production. The termination is solder type, ensuring durable integration onto PCB pads.

The 803 series includes both through-hole and surface mount options; this model provides a right angle design ideal for applications that require reduced profile and efficient board layout.

The socket has 16 contacts arranged in 2 rows with a 2.54 mm pitch. Constructed with black glass-filled polyester housing for durability. Features beryllium copper alloy contacts with gold flash plating for excellent conductivity.

Capable of handling 12A current and 150V operating voltage. Surface mount design with right-angle orientation suits compact PCB layouts. Operating temperature range from -55°C to 125°C ensures stability under varied environments.

Designed for board-to-board connector systems offering secure interfacing. Swiss manufacturing guarantees high quality and precision engineering. Termination is solder type for a strong, permanent connection.

This PCB socket is ideal for use in electronic manufacturing, laboratory instrumentation, industrial control systems, and communications equipment. It supports precise connectivity and is part of various automation and electronic testing setups.
