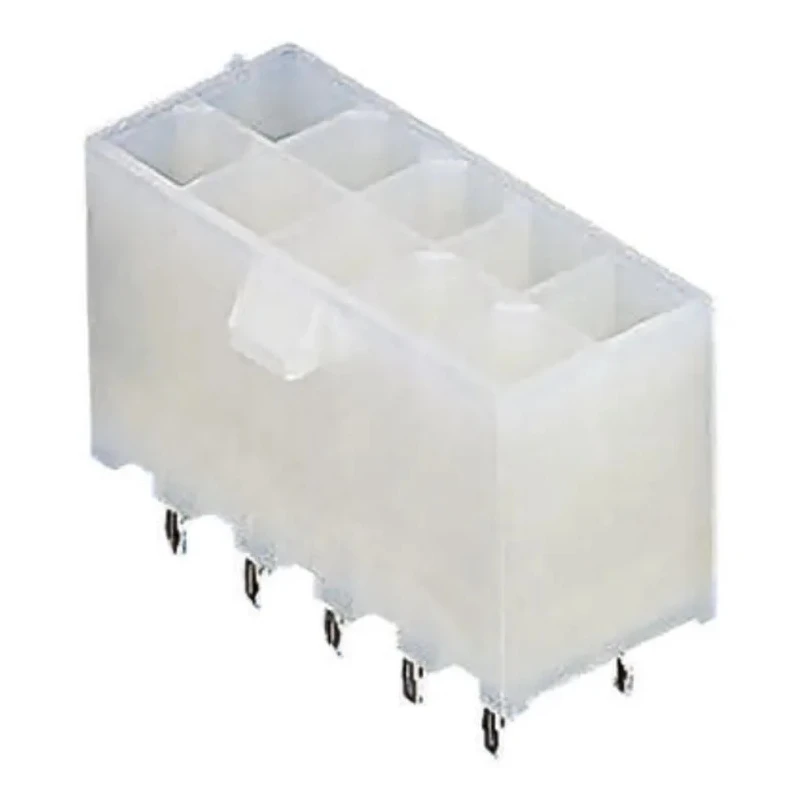

Molex Mini-Fit Plus Series Straight Through Hole PCB Header 8 Contacts 4.2 mm Pitch 2 Row Shrouded 46015-0802

Molex 46015-0802 Mini-Fit Plus Series Straight Through Hole PCB Header is engineered for power and electronic applications requiring robust and reliable wire-to-board connectors. This PCB header features 8 contacts organized in 2 rows with a 4.2 mm pitch, providing secure and efficient electrical connections in high-current environments up to 12A and voltage ratings of 600V.

The connector housing is made of durable nylon material, offering mechanical strength and excellent insulation. Its shrouded design protects the contacts and ensures proper orientation during mating, while the male contact gender metals are copper alloy with tin plating to maximize electrical conductivity and corrosion resistance over time.

Through-hole mounting combined with solder termination type secures the header firmly to printed circuit boards, enhancing assembly stability in industrial and manufacturing settings. Operating temperature ranges from -40°C to 105°C, making this connector suitable for diverse industrial, commercial, and HVAC electronic applications.

Additional features include snap-in PCB location pegs that simplify installation by aiding in proper alignment and placement on the PCB. The header mates with Molex 5557 Series receptacle housings, allowing easy system expansion or replacements. Although no formal certifications are stated, the component is manufactured to meet demanding quality standards common in electronic components.

The connector features a straight, two-row, shrouded design for reliable mating. Constructed with a nylon housing enhancing durability and insulating properties. Contacts are made of copper alloy with tin plating to ensure conductivity and corrosion resistance.

Rated for 12 amps current and 600 volts operating voltage to handle demanding circuits. Designed for through-hole mounting with solder termination type for stable PCB attachment. Operates between -40°C to 105°C, suitable for various temperature environments.

Features snap-in PCB location pegs aiding in easy assembly and placement. Compatible with 5557 Series receptacle housings for versatile connectivity options. Meets industrial quality requirements without specific certifications listed.

This PCB header is ideal for industrial, manufacturing, electronics, power distribution, and HVAC systems requiring reliable wire-to-board connections. Browse more PCB Headers and connectors on EnvMart for comprehensive electronic components solutions.
