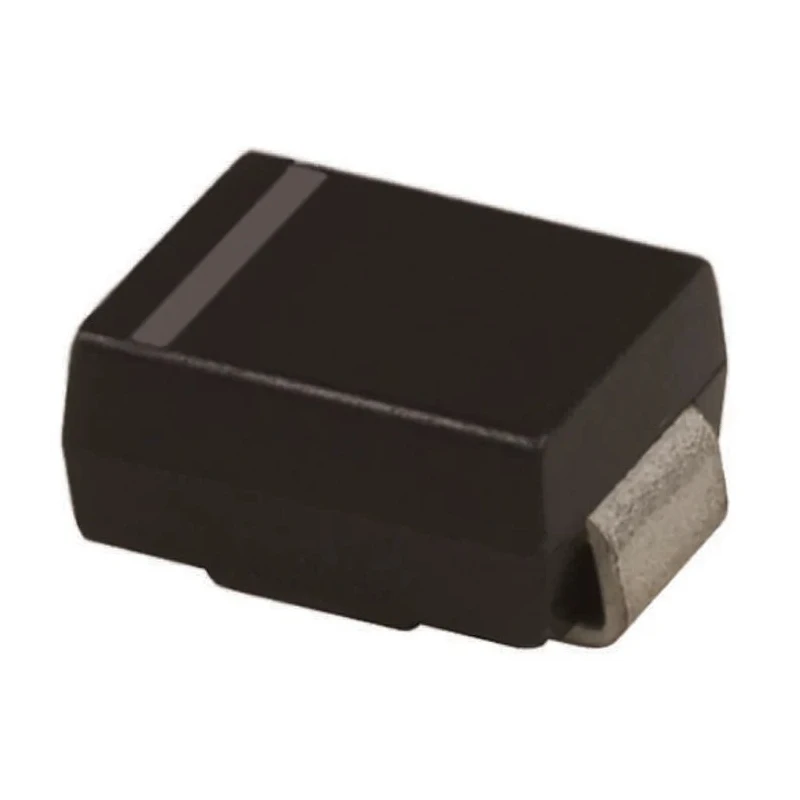

Taiwan Semiconductor 400 V 2 A Switching Diode Surface Mount DO-214AA RS2G R5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.41mm |
| Length | 4.75mm |
| Model | RS2G R5 |
| Width | 3.73mm |
| Mount Type | Surface |
| Series | RS2 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA (SMB) |
| Minimum Operating Temperature | -55°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 688-2114P Brand: [Taiwan Semiconductor](https://in.rsdelivers.com/brands/taiwan-semiconductor)Manufacturers Part No.: RS2G R5 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 150ns |
| Taiwan Semiconductor 400 V 2 A Diode Switching 2-Pin DO-214AARS Stock No. | 688-2114PBrand: Taiwan SemiconductorManufacturers Part No.: RS2G R5 |
Key Features
- Designed for efficient switching applications with a peak reverse recovery time of 150 ns.
- Operates reliably between -55°C minimum and 150°C maximum temperatures.
- Offers a maximum forward voltage drop of 1.3 V at rated current.
- Compact dimensions of 4.75 mm length, 3.73 mm width, and 2.41 mm height suitable for surface mounting.
- Single diode configuration with 2 pins in DO-214AA (SMB) package type.
- Peak forward surge current capacity of 50 A for short transient loads.
- Low peak reverse current of 5 μA ensures high efficiency and low leakage.
- Ideal for industrial, electronic, and power management applications requiring durable switching diodes.
Product Description
Taiwan Semiconductor RS2G R5 is a high-performance switching diode designed for electronic and industrial applications that require a durable and reliable semiconductor device. It features a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 400 V, ensuring robust operation in power and switching circuits.
The diode is housed in a surface mount DO-214AA package (SMB), making it ideal for efficient PCB integration with compact footprints. Its single diode configuration with 2 pins facilitates straightforward use in various rectifier and switching applications.
The device offers a maximum forward voltage of 1.3 V and an impressively fast peak reverse recovery time of 150 nanoseconds, optimizing switching efficiency and reducing power loss in high-frequency circuits. It withstands a minimum operating temperature of -55°C up to a maximum of 150°C, suitable for harsh industrial environments.
Physically, it measures 4.75 mm in length, 3.73 mm in width, and 2.41 mm in height, ensuring a small yet durable component suitable for surface mount technology. The diode also supports a peak forward surge current of 50 amps, making it capable of handling transient current spikes without degradation.
Though this model does not carry specific approvals or automotive standards, it serves as a reliable component in power management, electronics manufacturing, and various industrial systems. Its low peak reverse current of 5 microamperes enhances efficiency by minimizing leakage currents.
Designed for high-speed switching with 150 ns peak reverse recovery time. Robust thermal operating range from -55°C to 150°C fits demanding environments. Compact DO-214AA (SMB) surface mount package suits modern PCBs. High surge current capacity of 50 A ensures reliability during transient loads.
Low forward voltage and leakage currents optimize performance and power consumption. Single diode configuration simplifies circuit design and integration. Suitable for industrial, power supply, and electronic device applications.
Explore more semiconductor switching diodes and related components in the Electronics & Electricals category on EnvMart for your design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 2 A.
This diode is housed in a DO-214AA (SMB) package type.
The dimensions are 4.75 mm in length, 3.73 mm in width, and 2.41 mm in height.
It supports a peak forward surge current capacity of 50 A.
It operates reliably between -55°C and 150°C.
The maximum forward voltage drop is 1.3 V at rated current.
This model has a single diode configuration with 2 pins.
It is suitable for industrial, electronic, and power management applications.
This unit is classified as a switching rectifier.
