| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | Taiwan Semiconductor |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | SR106 |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | SR106 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 688-2202PBrand: Taiwan SemiconductorManufacturers Part No.: SR106 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 0.7V |
| Taiwan Semiconductor 60 V 1 A Diode Schottky 2-Pin DO-41RS Stock No. | 688-2202PBrand: Taiwan SemiconductorManufacturers Part No.: SR106 |

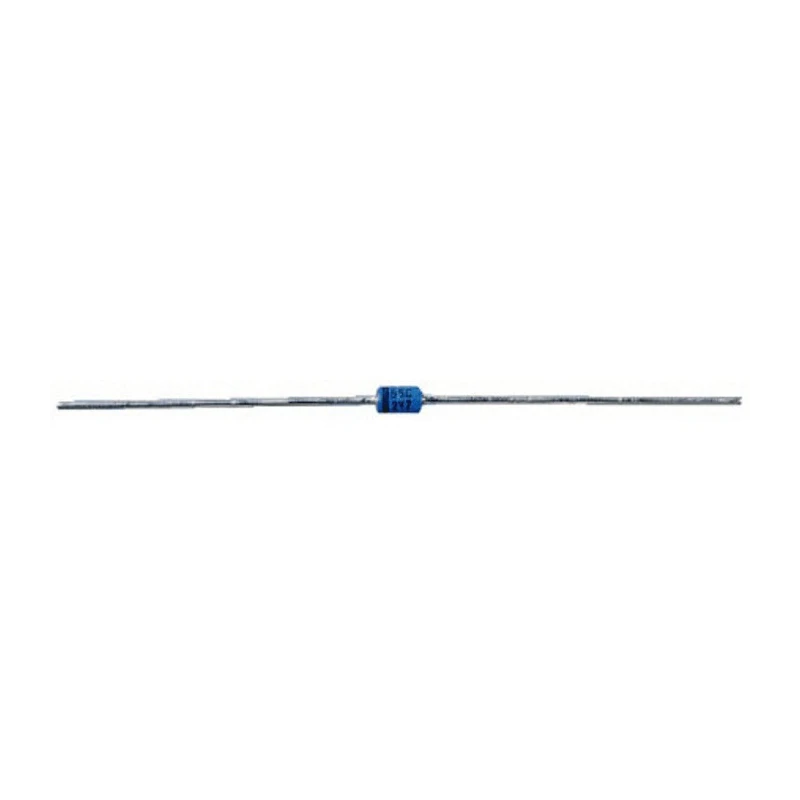

Taiwan Semiconductor SR106 Schottky Diode 2-Pin in DO-41 package offers a reliable semiconductor diode solution with a continuous forward current of 1 Ampere and a peak reverse repetitive voltage of 60 Volts. This Schottky rectifier diode is designed for efficient low power loss and high current capability in electronic and industrial applications.
The device's Schottky barrier technology enables low forward voltage drop (maximum 0.7V) and fast switching speeds, ideal for power management and high-frequency circuits. Its through-hole mount type and compact dimensions of 5.2 mm length and 2.7 mm diameter allow easy PCB integration.
With a peak reverse current of only 500 microamperes, minimum operating temperature of -65°C, and maximum operating temperature of 150°C, this diode performs reliably across a wide temperature range. It also withstands a peak non-repetitive forward surge current of 30A, giving robust surge protection.
Compliance with the automotive industry AEC-Q101 standard underlines its suitability for automotive electronics and high-reliability applications. The SR106 model diode is ideal for use in industrial power supplies, electronic equipment, and automotive circuits requiring efficient, durable, and low-loss rectification.
Low forward voltage drop minimizes energy loss in circuits. High current handling capability up to 1 Amp continuous. Compact DO-41 through-hole package ensures easy PCB mounting. Wide operating temperature range from -65°C to 150°C.
Automotive grade AEC-Q101 certified for enhanced reliability. Fast switching Schottky technology supports high-frequency applications. Surge current capability of 30 Amps for transient events.
The Taiwan Semiconductor SR106 is a high-performance Schottky diode suitable for use in power management, industrial electronics, automotive systems, and general semiconductor diode applications. Explore our Semiconductor and Schottky Diode selections on EnvMart for comprehensive options.
