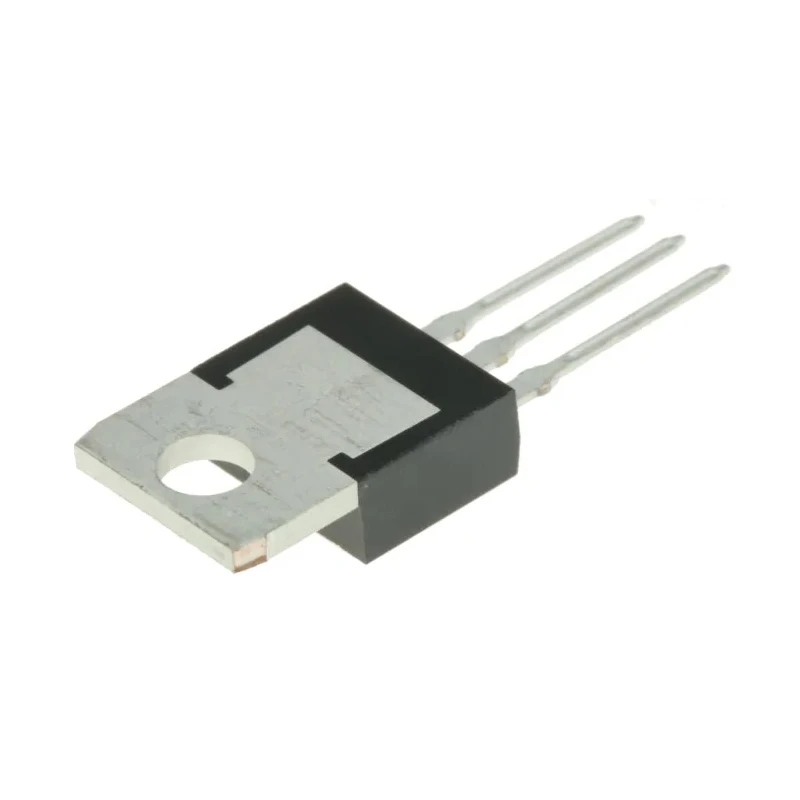

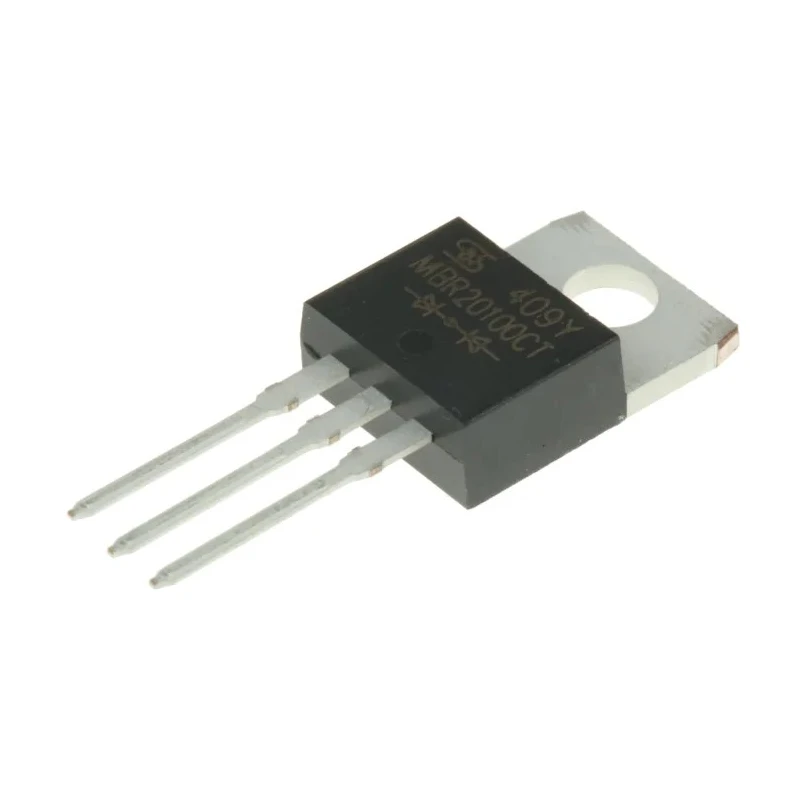

Taiwan Semiconductor 100 V 20 A Schottky Barrier Diode TO-220AB MBR20100CT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 8.24mm |
| Length | 10.5mm |
| Model | MBR20100CT |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220AB |
| Minimum Operating Temperature | -65°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 688-2003Brand: Taiwan SemiconductorManufacturers Part No.: MBR20100CTDistrelec Article No.: 304-43-913 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 1.23V |
| Taiwan Semiconductor 100 V 20 A Diode Schottky 3-Pin TO-220ABRS Stock No. | 688-2003Brand: Taiwan SemiconductorManufacturers Part No.: MBR20100CTDistrelec Article No.: 304-43-913 |
Key Features
- Mount type is through-hole for secure PCB integration.
- Maximum continuous forward current of 20 amperes supports high load applications.
- Peak reverse repetitive voltage of 100 volts ensures reliability.
- Low forward voltage drop of 1.23 volts reduces power loss.
- Can operate efficiently between -65°C and 150°C temperature range.
- Features common cathode diode configuration with Schottky rectifier type.
- Compact dimensions of 10.5 mm length, 8.24 mm height, and 4.7 mm width.
- Designed to meet automotive standard AEC-Q101.
Product Description
Taiwan Semiconductor MBR20100CT is a Schottky Barrier Diode designed for high-efficiency power applications. Featuring a through-hole mount and TO-220AB package type, this diode offers a maximum continuous forward current of 20 amperes and a peak reverse repetitive voltage rating of 100 volts. It is configured with a common cathode and has a Schottky rectifier type for low forward voltage drop performance at 1.23 volts.
This diode is engineered to operate reliably within a wide temperature range from -65°C up to 150°C, making it suitable for demanding industrial and automotive environments that require high surge current tolerance and stable operation. The compact physical dimensions of 10.5 mm length, 8.24 mm height, and 4.7 mm width allow for ease of integration in densely populated electronic assemblies.
Notably compliant with the automotive standard AEC-Q101, the MBR20100CT ensures robustness and quality in vehicle electronics and other rigorous applications. The device’s three-pin configuration supports straightforward connection compatibility and enhanced circuit design flexibility.
Mount type is through-hole for reliable PCB installation. Maximum continuous forward current of 20A supports heavy current loads. Peak reverse repetitive voltage rating of 100V for enhanced protection. Low forward voltage drop of 1.23V minimizes power dissipation.
Operational temperature range from -65°C to 150°C for harsh environments. Common cathode diode configuration with Schottky rectifier benefits. Compact TO-220AB packaging facilitates space-saving circuit designs. Meets automotive AEC-Q101 quality standards.
Supports high peak surge current of 150A for transient tolerance. Three-pin design enables standard electrical interface.
This diode is ideal for industrial power management, automotive electronic circuits, consumer electronics, and other applications demanding efficient, low-loss rectification with high thermal and surge current endurance. Explore a wide range of semiconductor and discrete electronic components in the EnvMart catalog for diverse engineering requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the MBR20100CT is 20 amperes, making it suitable for high load applications.
This model has a peak reverse repetitive voltage rating of 100 volts, providing enhanced protection in various applications.
It operates efficiently within a temperature range of -65°C to 150°C, allowing for use in harsh environments.
The MBR20100CT features a common cathode diode configuration, which is typical for Schottky rectifiers.
The forward voltage drop of this diode is 1.23 volts, which helps to minimize power loss during operation.
This diode has compact dimensions of 10.5 mm in length, 8.24 mm in height, and 4.7 mm in width, facilitating easy integration into electronic assemblies.
The MBR20100CT is packaged in a TO-220AB type, which is suitable for through-hole mounting.
The peak non-repetitive forward surge current rating for this model is 150 amperes, allowing it to handle transient conditions effectively.
Yes, the MBR20100CT is designed to meet the automotive standard AEC-Q101, ensuring quality for automotive applications.
The peak reverse current for this model is 100 microamperes, which indicates its low leakage characteristics.
This diode uses a through-hole mount type, which allows for secure integration on printed circuit boards.
It is suitable for industrial power management, automotive electronic circuits, and consumer electronics, particularly where efficient, low-loss rectification is needed.
