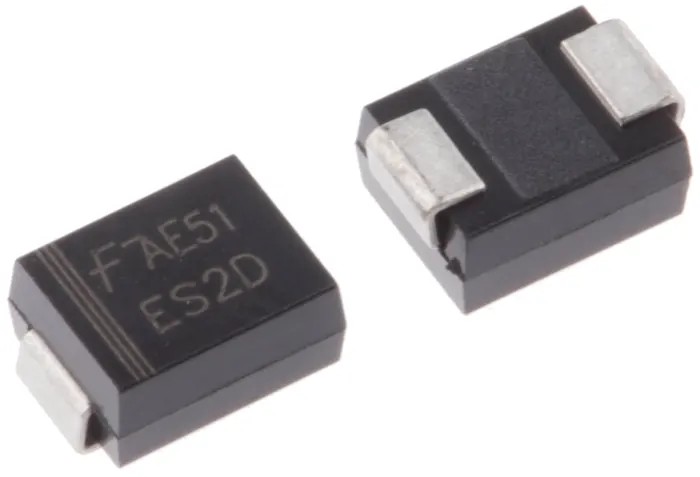

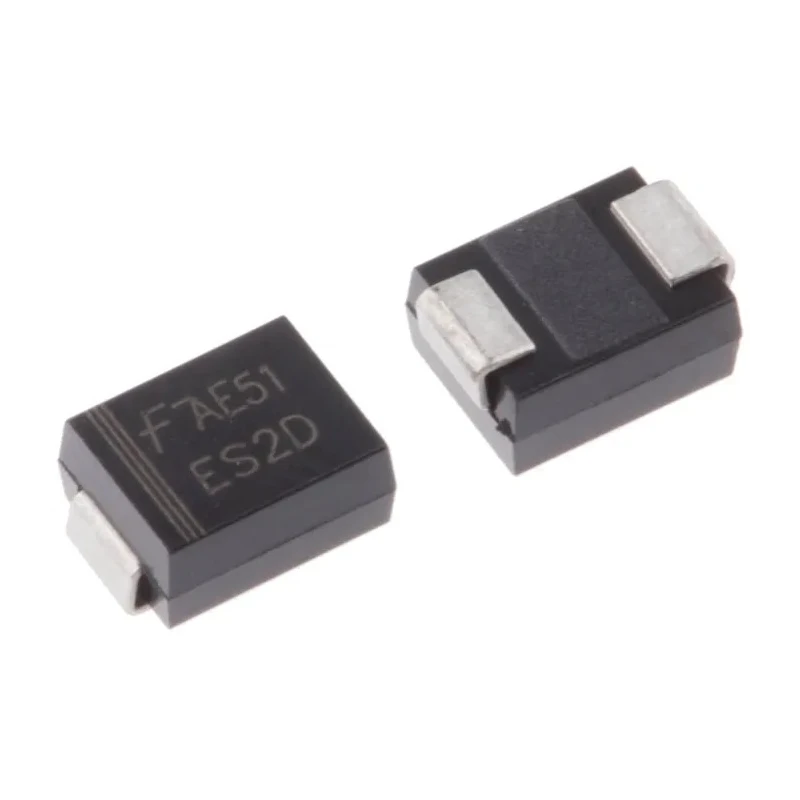

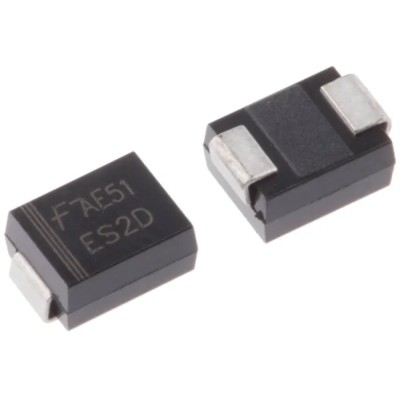

onsemi 200 V 2 A Surface Mount Switching Diode 2-Pin DO-214AA ES2D
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.45mm |
| Length | 4.75mm |
| Model | ES2D |
| Width | 3.95mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 900mV |
| Peak Reverse Recovery Time trr | 20ns |
| STMicroelectronics 200 V 2 A Diode Switching 2-Pin DO-214AA STTH2R02UBrand | STMicroelectronics |
Key Features
- Compact 2-pin DO-214AA surface mount package suitable for PCB mounting.
- Maximum continuous forward current of 2 amperes for moderate current handling.
- Peak reverse repetitive voltage rating of 200 volts ensures effective switching and blocking.
- Low maximum forward voltage of 900 millivolts reduces power loss during conduction.
- Fast peak reverse recovery time of 20 nanoseconds for efficient switching operations.
- Wide operating temperature range from -55°C to 150°C for harsh environments.
- Single diode configuration optimized for rectifier and switching applications.
- Peak non-repetitive forward surge current capability of 50 amperes for transient conditions.
Product Description
onsemi ES2D is a single switching diode packaged in a surface-mount 2-pin DO-214AA form factor. Rated for a maximum continuous forward current of 2 amperes and a peak reverse repetitive voltage of 200 volts, this diode is designed for efficient rectification and switching in electronic circuits.
The diode features a low maximum forward voltage of 900 millivolts, ensuring minimal conduction losses and improved power efficiency. Its fast peak reverse recovery time of 20 nanoseconds enables rapid switching suitable for various power and signal applications.
Designed to withstand harsh operating environments, the ES2D diode operates reliably between temperatures of -55°C and 150°C. This makes it suitable for industrial, electronics manufacturing, communication equipment, and power management applications.
The compact DO-214AA package measures 4.75 millimeters in length, 3.95 millimeters in width, and 2.45 millimeters in height, allowing tight PCB layouts and space-efficient designs.
The diode’s peak non-repetitive forward surge current rating of 50 amperes supports transient current spikes during startup or switching events, enhancing device durability. Compact surface mount 2-pin DO-214AA package. 2 A maximum continuous forward current rating.
200 V peak reverse repetitive voltage capability. 900 mV maximum forward voltage drop. 20 ns peak reverse recovery time for fast switching. Wide temperature range from -55°C to 150°C. Single diode construction for rectification and switching.
50 A peak non-repetitive surge current capacity. Precise dimensions enable compact PCB assembly.
This onsemi ES2D diode is ideal for use in industrial control systems, electronic instrumentation, automotive electronics (non-automotive standard rating), power supply design, and telecommunications equipment. Its quality and packaging compliance make it a reliable choice for engineers and manufacturers.
Explore more semiconductor devices and switching diodes at EnvMart for your detailed industrial and electronic component needs.
