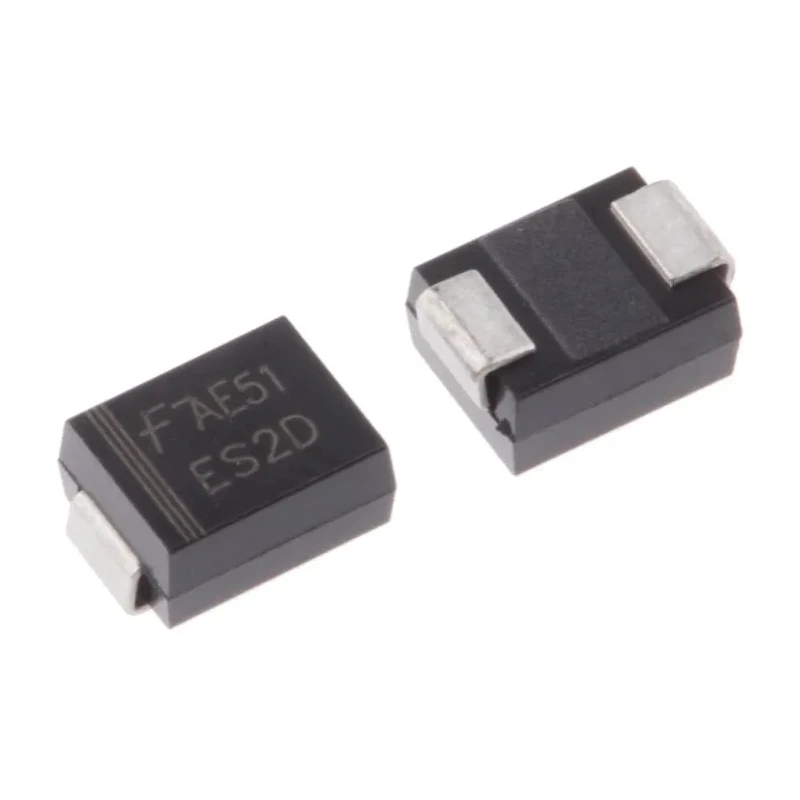

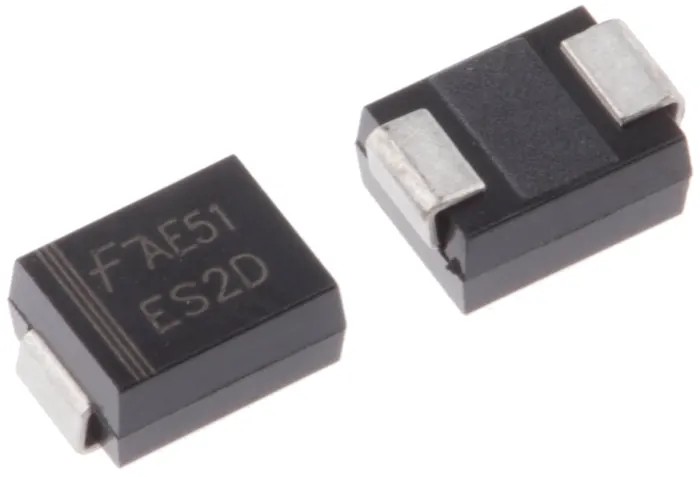

onsemi 200 V 2 A Surface Mount Switching Diode 2-Pin DO-214AA ES2D
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.45mm |
| Length | 4.75mm |
| Model | ES2D |
| Width | 3.95mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 900mV |
| Peak Reverse Recovery Time trr | 20ns |
Key Features
- Designed for surface mounting in electronic circuits.
- Operates at a peak reverse repetitive voltage of 200 V.
- Supports continuous forward current up to 2 A.
- Features a switching rectifier diode configuration with 2 pins.
- Maximum forward voltage drop is 900 mV ensuring efficient operation.
- Robust operation spanning a wide temperature range from -55°C to 150°C.
- Compact dimensions with length 4.75 mm, width 3.95 mm, and height 2.45 mm.
- Peak non-repetitive forward surge current up to 50 A for transient tolerance.
Product Description
onsemi ES2D diode is a single switching rectifier diode designed for use in various electronic applications requiring reliable surface mount components. It supports a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 200 V, making it suitable for medium power switching circuits.
The diode comes in a compact DO-214AA package with precise dimensions of 4.75 mm length, 3.95 mm width, and 2.45 mm height. Its maximum forward voltage of 900 mV supports efficient energy use while maintaining performance stability.
This switching diode is built to withstand minimum operating temperatures as low as -55°C and maximum operating temperatures up to 150°C, allowing it to perform reliably in harsh environmental conditions typical in industrial and commercial electronics.
The device exhibits a fast peak reverse recovery time of 20 ns, providing excellent switching speed for power conversion and signal rectification tasks. It also endures peak non-repetitive forward surge currents of 50 A, which protects circuits from current spikes and transient events.
Ideal for use in electronic manufacturing, industrial automation, power supply modules, and switching power applications, the onsemi ES2D diode is a dependable component for design engineers and repair professionals.
Designed for surface mounting in electronic circuits. Operates at a peak reverse repetitive voltage of 200 V. Supports continuous forward current up to 2 A. Features a switching rectifier diode configuration with 2 pins.
Maximum forward voltage drop is 900 mV ensuring efficient operation. Robust operation spanning a wide temperature range from -55°C to 150°C. Compact dimensions with length 4.75 mm, width 3.95 mm, and height 2.45 mm. Peak non-repetitive forward surge current up to 50 A for transient tolerance.
Fast peak reverse recovery time of 20 ns ideal for switching applications. Explore the onsemi range of high-quality semiconductors and rectifiers at EnvMart for advanced industrial, electronic, and power management solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 2 A.
It operates at a peak reverse repetitive voltage of 200 V.
This model has dimensions of 4.75 mm in length, 3.95 mm in width, and 2.45 mm in height.
The maximum forward voltage drop is 900 mV.
It can operate within a temperature range from -55°C to 150°C.
The peak non-repetitive forward surge current is rated at 50 A.
This diode is designed for surface mounting in electronic circuits.
It features a 2-pin configuration.
The peak reverse recovery time is 20 ns, allowing for fast switching applications.
This model features a single switching rectifier diode configuration.
The country of origin for this diode is India.
It is suitable for use in electronic manufacturing, industrial automation, power supply modules, and switching power applications.
