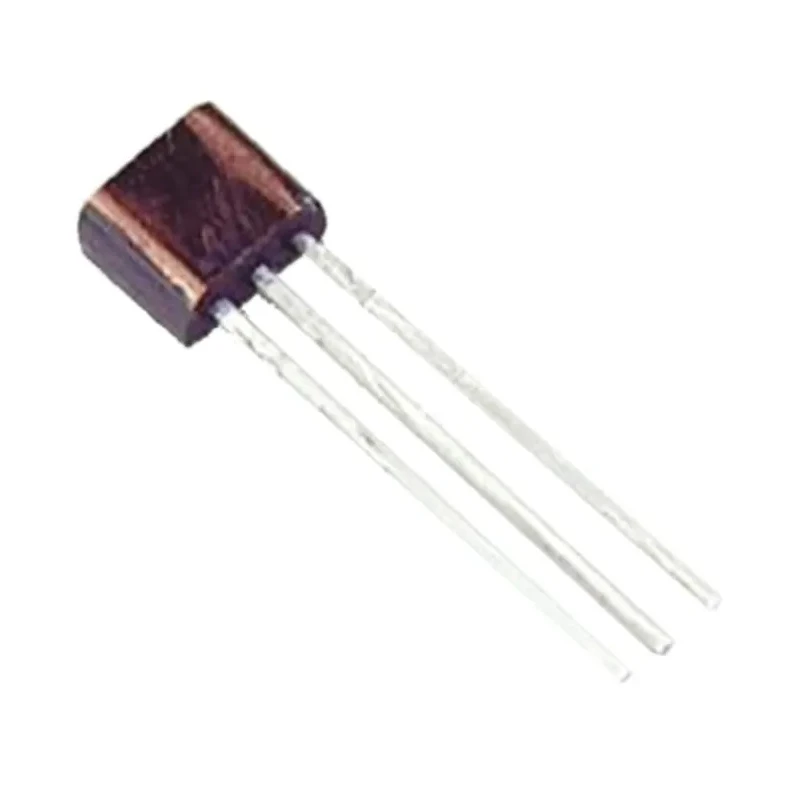

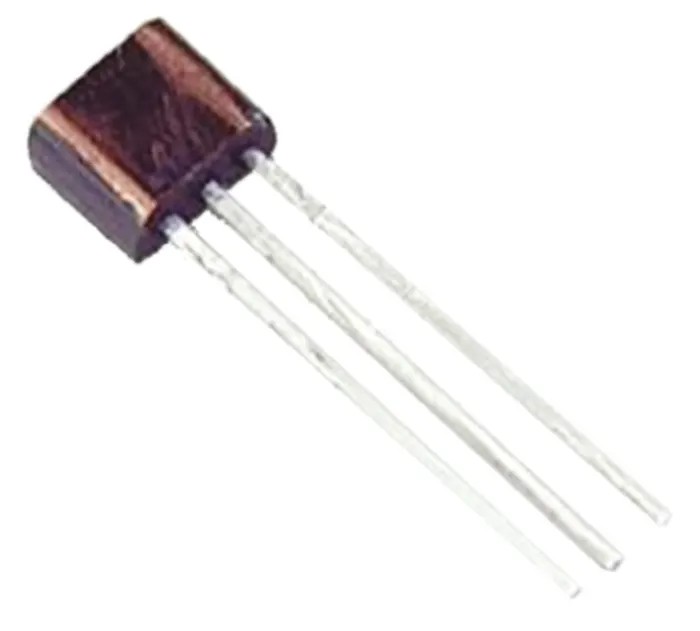

DiodesZetex Transistor PNP 2 A, 40 V, 3-Pin E-Line Through Hole ZTX790ASTZ

DiodesZetex ZTX790ASTZ is a robust PNP bipolar transistor designed for general purpose electronic circuits requiring up to 2 A of collector current. Its 3-pin E-Line package allows for through-hole mounting on printed circuit boards, facilitating easy assembly and soldering.

This transistor supports a maximum collector-emitter voltage of 40 V and collector-base voltage up to 50 V, ensuring reliable switching and amplification in low- to medium-voltage applications.

With a power dissipation rating of 1 W and a frequency transition up to 100 MHz, the ZTX790ASTZ is suitable for high-frequency switching tasks and small signal amplification in consumer electronics, industrial controls, and communication equipment.

The device is rated to operate over an extended temperature range from -55°C to 200°C, making it well-suited for harsh industrial and automotive environments, though it does not carry an automotive standard certification.

The minimum current gain hFE of 150 guarantees effective amplification gain for various bipolar applications. The package and configuration allow seamless integration into legacy and new electronic designs.

High current PNP transistor with a maximum DC collector current of 2 A. Through-hole E-Line package type for robust mounting and durability. Maximum power dissipation of 1 watt supports consistent performance. Wide operating temperature from -55°C to 200°C.

Maximum transition frequency of 100 MHz enables high-speed switching. Three pins for simple circuit integration and control. Suitable for industrial, laboratory, and consumer electronic applications.

This transistor is appropriately categorized under Bipolar Transistor components, ideal for use in electronics assembly, prototyping, and manufacturing projects requiring PNP transistor features. Explore more in our Electronics & Electricals, Semiconductor, and Bipolar Transistor collections to find complementary components for your circuits.
