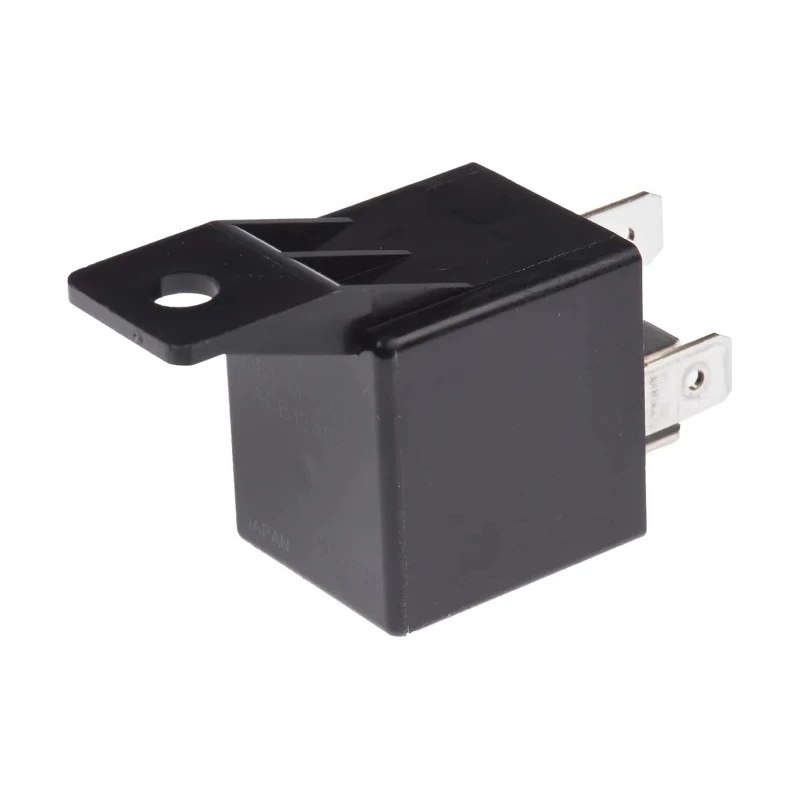

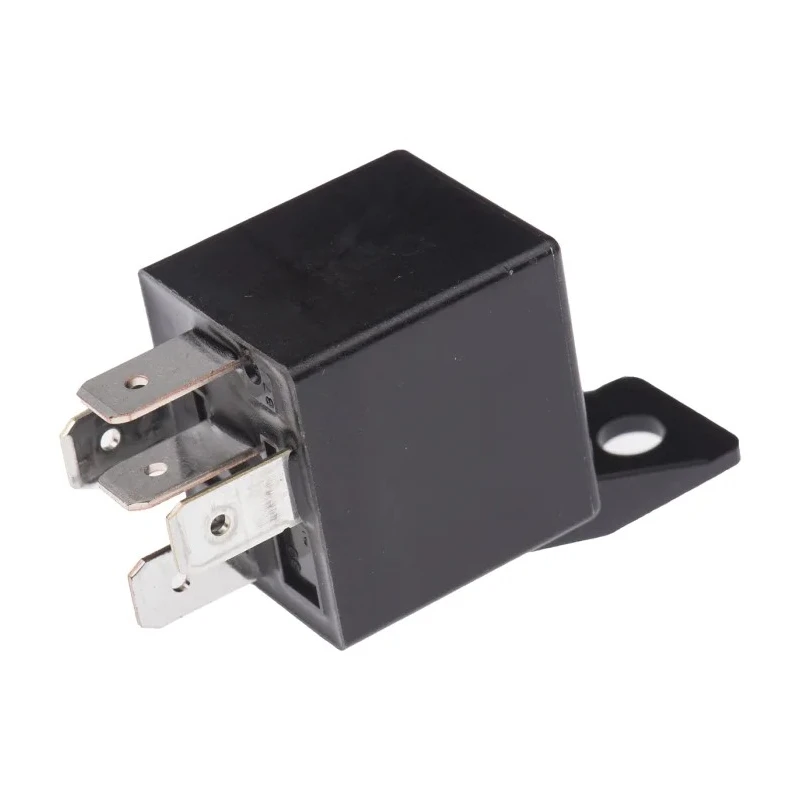

Panasonic Automotive Relay PCB Mount, 24V DC Coil Voltage, 20A Switching Current, SPDT Contact Configuration CB1-M-24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 25mm |
| Length | 26mm |
| Model | CB1-M-24V |
| Depth | 22mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | CB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 320Ω |
| Coil Power | 1.8W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- The relay is designed for PCB mounting in automotive and industrial applications.
- SPDT (Single Pole Double Throw) contact configuration offers flexible switching options.
- Coil power consumption is 1.8W with coil resistance of 320 ohms.
- Suitable for operating temperatures from -40°C up to 85°C, ensuring reliable performance in harsh environments.
- Built with silver alloy contacts for durable and efficient electrical conduction.
- Provides 500Vrms isolation between coil and contacts, ensuring electrical safety.
- Mini-ISO terminal arrangement enhances ease of installation and connection.
- Ideal for use in automotive, construction equipment, and agricultural machinery relay applications.
Product Description
Panasonic CB1-M-24V automotive relay PCB mount is engineered for high switching capacity and reliability in compact form, suitable for automotive and industrial uses requiring 24V DC coil voltage and 20A switching current with SPDT contact configuration.
This relay features a coil power of 1.8W and coil resistance of 320 ohms, ensuring energy-efficient operation. Its SPDT contact design allows switching between two circuits, enhancing functionality in complex electrical systems.
With compact dimensions of 26mm length, 25mm height, and 22mm depth, the relay is space-saving and designed for PCB mounting. It operates reliably within a broad temperature range from -40°C to 85°C, suitable for harsh environmental conditions.
The contacts are made of silver alloy, providing excellent electrical conductivity and durability. It offers 500Vrms coil-to-contact isolation, ensuring safety and noise immunity in sensitive circuits.
The mini-ISO terminal arrangement allows for quick-connect terminal usage, simplifying installation and maintenance. Typical applications include automotive electronics, construction equipment control systems, and agricultural machinery.
The relay is designed for PCB mounting in automotive and industrial applications. SPDT (Single Pole Double Throw) contact configuration offers flexible switching options. Coil power consumption is 1.8W with coil resistance of 320 ohms.
Compact dimensions: 26mm length, 25mm height, and 22mm depth for space-efficient integration. Suitable for operating temperatures from -40°C up to 85°C, ensuring reliable performance in harsh environments. Built with silver alloy contacts for durable and efficient electrical conduction.
Provides 500Vrms isolation between coil and contacts, ensuring electrical safety. Mini-ISO terminal arrangement enhances ease of installation and connection. Ideal for use in automotive, construction equipment, and agricultural machinery relay applications.
Explore more high-quality Automotive Relays and electrical components at EnvMart for industrial and automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It has a switching current capacity of 20A.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The relay has dimensions of 26mm in length, 25mm in height, and 22mm in depth.
The coil power consumption is 1.8W.
The coil resistance is 320 ohms.
It operates reliably within a temperature range of -40°C to 85°C.
The relay features a mini-ISO terminal arrangement for easy installation and connection.
It provides 500Vrms isolation between the coil and contacts.
The contacts are made of silver alloy, ensuring efficient electrical conduction.
This relay is suitable for automotive electronics, construction equipment, and agricultural machinery applications.
The relay is manufactured in Japan.
