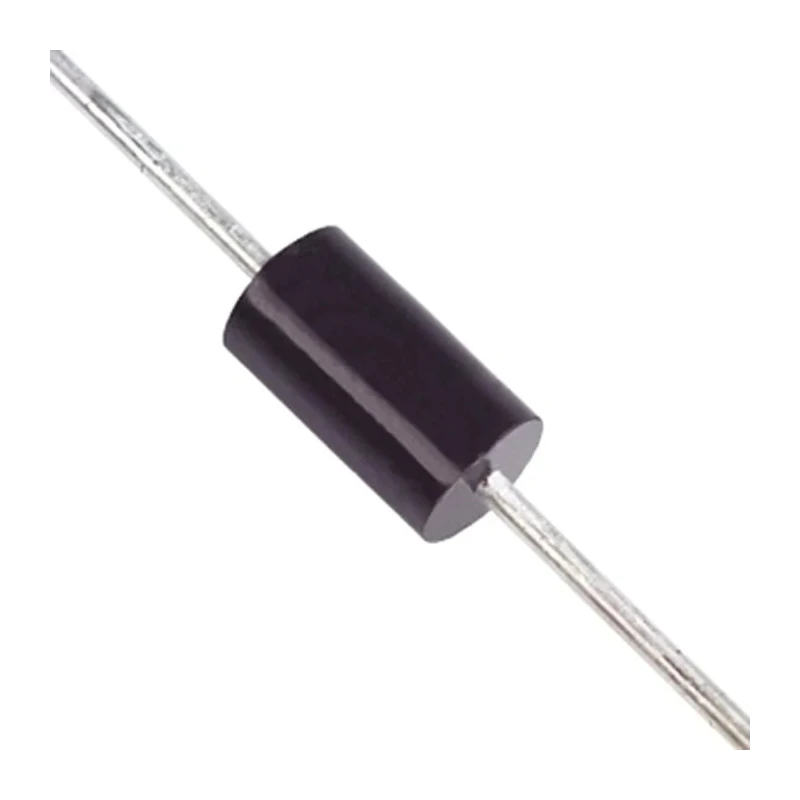

Taiwan Semiconductor 40 V 3 A Diode Rectifier Diode 2-Pin DO-201AD 1N5822 R0
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.6mm |
| Brand | Taiwan Semiconductor |
| Height | 5.6mm |
| Length | 9.5mm |
| Model | 1N5822 R0 |
| Width | 5.6mm |
| Mount Type | Through Hole |
| Series | 1N5822 |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Rectifier Diode |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 950mV |
Key Features
- Through hole mount type for ease of PCB assembly.
- Single diode configuration with 2 pins.
- Maximum forward voltage drop of 950 mV minimizes power loss.
- High peak non-repetitive forward surge current of 70 A for robust performance.
- Operating temperature range from -65°C to 125°C for wide industrial applications.
- Peak reverse current of 500 μA and peak reverse repetitive voltage of 40 V ensures reliable rectification.
- No automotive or specific standards approvals indicated.
- Ideal for power management and discrete semiconductor applications.
Product Description
Taiwan Semiconductor 1N5822 R0 Schottky Diode Rectifier Diode in 2-pin DO-201AD package offers a maximum continuous forward current of 3 A and peak reverse repetitive voltage of 40 V. This single diode is designed for through-hole mounting and provides a low forward voltage drop of 950 mV, making it efficient for power electronics and discrete semiconductor circuits.
The diode operates reliably across temperatures from -65°C to 125°C, suitable for varied industrial, electronic component, and power management applications. Its compact dimensions - length 9.5 mm with a diameter, height, and width of 5.6 mm - facilitate space-efficient PCB designs.
Key characteristics include a peak non-repetitive forward surge current of 70 A and a low peak reverse current of 500 μA, enabling robust rectification performance. The device is free from automotive-specific standards but is ideal for general Schottky diode applications in electronics and electrical systems.
This diode is commonly used in semiconductor discrete component implementations, power supply circuits, and electronic designs requiring efficient rectification under demanding conditions.
Through hole mount type for easy assembly on printed circuit boards. Single diode configuration with 2 pins in a DO-201AD package. Max forward voltage drop of 950 mV to reduce power dissipation. High surge current rating of 70 A for surge tolerance.
Wide operating temperature range of -65°C to 125°C for industrial use. Compact size with length 9.5 mm and diameter 5.6 mm. Reliable peak reverse current and voltage ratings ensure stable operation.
This Taiwan Semiconductor diode represents a high-performance Schottky rectifier solution suitable for various electronics, power management, and discrete semiconductor applications. Browse our semiconductor and diode categories for compatible products at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 3 A.
The peak reverse repetitive voltage rating is 40 V.
It operates within a temperature range of -65°C to 125°C.
The maximum forward voltage drop is 950 mV.
The peak non-repetitive forward surge current rating is 70 A.
This diode uses a through-hole mounting type for easy PCB assembly.
The dimensions are 9.5 mm in length and 5.6 mm in diameter.
This model has a single diode configuration with 2 pins.
The peak reverse current rating is 500 μA.
It comes in a DO-201AD package type.
This diode is suitable for power management and discrete semiconductor applications.
The country of origin for this diode is India.
