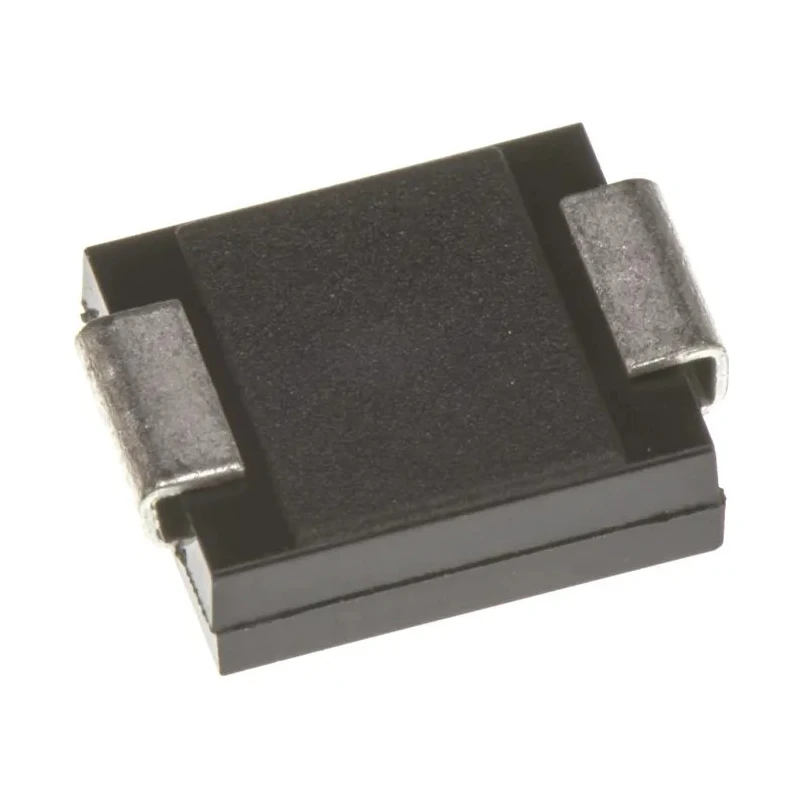

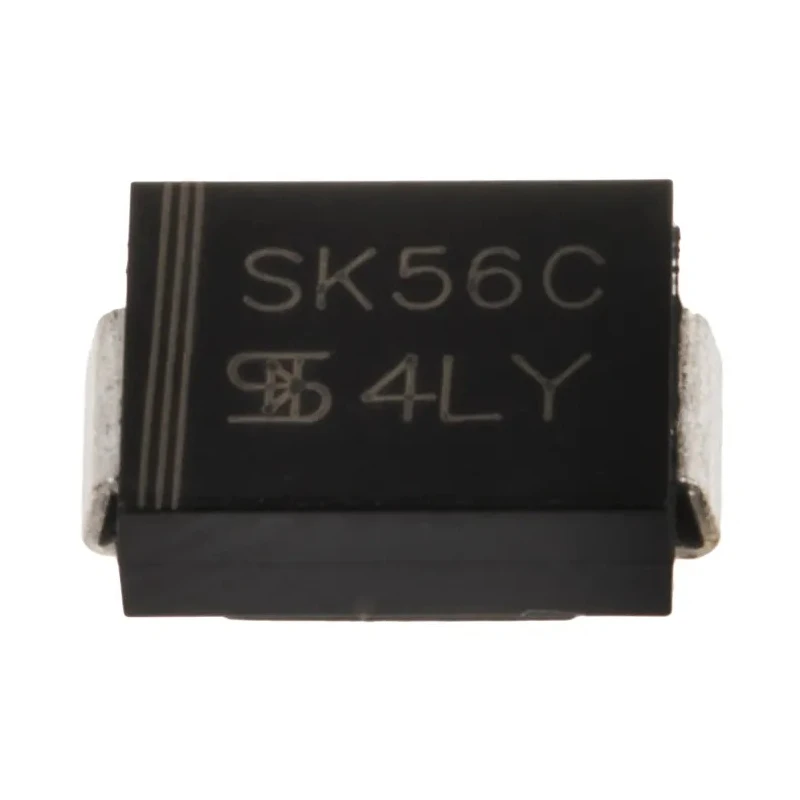

Taiwan Semiconductor 60 V 5 A Surface Mount Schottky Diode DO-214AB SK56C
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SK56C |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | SK56C |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 750mV |
Key Features
- High current capability up to 5 amperes for demanding applications.
- Low forward voltage drop of 750 millivolts to reduce power loss.
- Compact surface mount DO-214AB (SMC) package with 2 pins.
- Peak reverse repetitive voltage rating of 60 volts for robust performance.
- Wide operating temperature range from -55°C to 150°C suitable for various environments.
- High surge current rating of 120 amperes for transient conditions.
- Single diode configuration optimized for rectifier use.
- Designed without automotive standards compliance for industrial electronics.
Product Description
Taiwan Semiconductor SK56C is a 60 V, 5 A Schottky diode provided in a compact surface mount DO-214AB (SMC) package. This diode features a low forward voltage drop of 750 mV, enabling efficient power rectification with low power dissipation. Its single diode configuration and robust maximum continuous forward current rating make it suitable for general purpose power rectification in electronic circuits.
The device supports a peak reverse repetitive voltage of 60 V and can handle a high peak non-repetitive forward surge current of 120 A, making it reliable under transient load conditions. It operates reliably over a broad temperature range from -55°C to 150°C, ensuring suitability for industrial environments with varying temperature demands.
The SK56C offers a surface mount design with two pins, measuring 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, allowing for compact PCB layouts. This Schottky diode is engineered without automotive certification, targeting general electronics, power management, and industrial applications requiring efficient rectifier elements.
High current carrying capacity of 5 A. Low forward voltage drop to minimize conduction losses. Robust peak surge current rating of 120 A. Wide operating temperature range for durability. Compact, surface mount DO-214AB package.
Single diode configuration optimized for rectifier use. Suitable for industrial and power management electronics. Dimensions allow dense PCB integration. Reliable performance with 60 V reverse voltage rating.
This Taiwan Semiconductor SK56C Schottky Diode is ideal for use in industrial power supplies, electronic devices requiring efficient power conversion, and various semiconductor applications. Its compact package and high electrical ratings make it a versatile component for electronics designers.
Explore more semiconductor components and Schottky diodes within the EnvMart catalog for your industrial and electronic design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 5 A.
This Schottky diode has a peak reverse repetitive voltage rating of 60 V.
The forward voltage drop for this diode is 750 mV.
The dimensions of the DO-214AB package are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
It operates over a wide temperature range from -55°C to 150°C.
The peak non-repetitive forward surge current rating is 120 A.
This model uses a single diode configuration optimized for rectifier use.
The maximum peak reverse current is 500 μA.
It is suitable for industrial power supplies, electronic devices requiring efficient power conversion, and various semiconductor applications.
The mount type of this diode is surface mount.
This diode belongs to the SK56C series.
The SK56C is manufactured in India.
