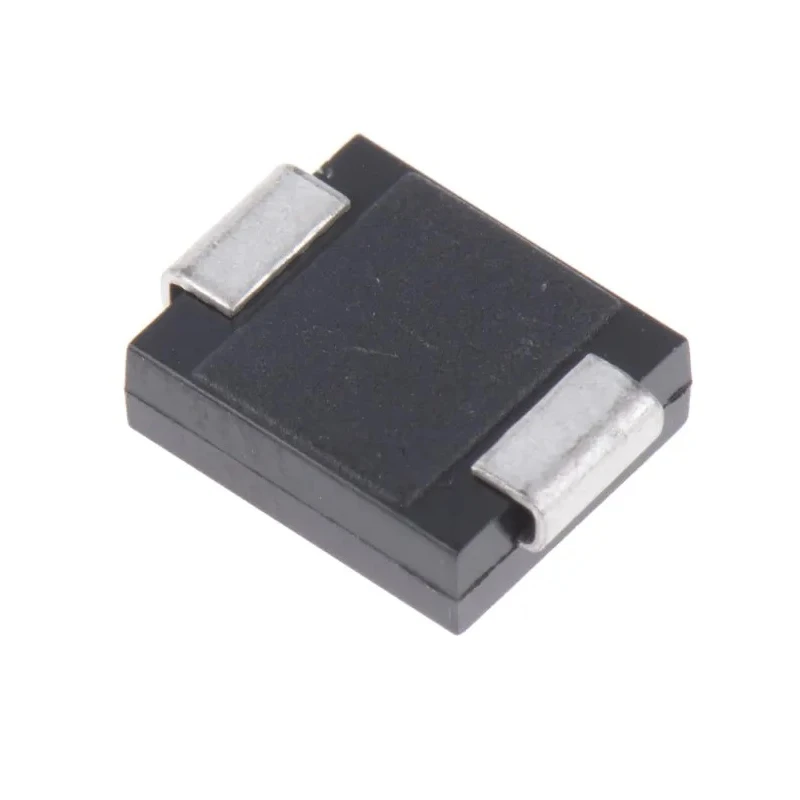

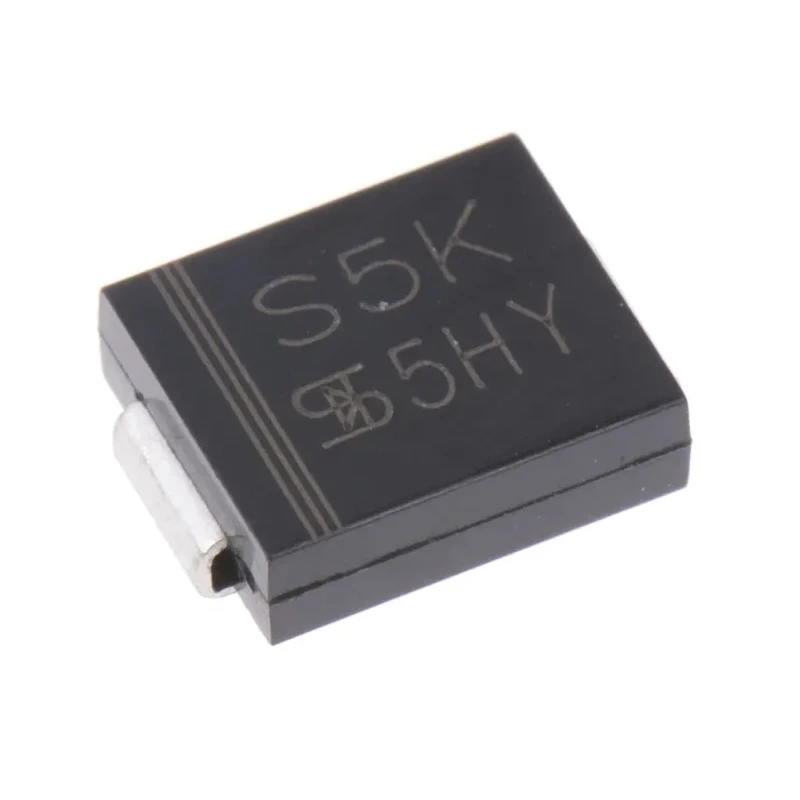

Taiwan Semiconductor 800 V 5 A Recovery Diode 2-Pin DO-214AB Surface Mount S5K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | S5K |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | S5K |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Single |
| Rectifier Type | Recovery |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 1.15V |
| Peak Reverse Recovery Time trr | 1500ns |
| Taiwan Semi 600V 5A, Diode, 2-Pin DO-214AB S5J R6Brand | Taiwan Semiconductor |
Key Features
- This diode is designed for recovery type rectification applications.
- Mount type is surface mount to suit modern PCB designs.
- The DO-214AB (SMC) package ensures compact and reliable installation.
- Maximum continuous forward current is 5 amps, suitable for medium power circuits.
- Peak reverse repetitive voltage is 800 volts, providing protection against high voltage.
- The device features a fast peak reverse recovery time of 1500 nanoseconds.
- Operating temperature ranges from -55°C to 150°C for robust performance.
- The diode configuration is single with 2-pin connectivity.
Product Description
Taiwan Semiconductor S5K Recovery Diode 2-Pin DO-214AB is a high-performance semiconductor device designed for power rectification and switching applications. It is surface mount type, packaged in DO-214AB (SMC) for compact integration into modern electronics assemblies.
With a maximum continuous forward current of 5 amperes and a peak reverse repetitive voltage rating of 800 volts, this diode reliably handles moderate power loads in industrial, automotive, and consumer electronics circuits. The device exhibits a peak reverse recovery time of 1500 nanoseconds, enabling efficient switching and reduced power loss in circuit designs requiring fast recovery.
Its operating temperature range from -55°C to 150°C supports harsh environmental conditions encountered in automotive and industrial applications. The single diode configuration with 2 pins ensures straightforward installation and compatibility with various PCB layouts.
The diode features a maximum forward voltage drop of 1.15 volts, contributing to energy efficiency and thermal management. Compact dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height make this diode suitable for space-constrained designs.
This diode is designed for recovery type rectification applications. Surface mount DO-214AB package for compact design. Maximum forward current of 5A supports medium power needs. Operating voltage up to 800V ensures high voltage protection.
Fast reverse recovery time improves switching efficiency. Wide temperature range from -55°C to 150°C for durability. Single diode configuration with 2 pins for easy mounting. Low forward voltage drop minimizes power loss.
Compact dimensions suitable for dense PCB layouts.
This high-quality diode from Taiwan Semiconductor is suitable for use in power management circuits, motor control systems, industrial automation, automotive electronics, power supplies, and renewable energy systems. EnvMart offers this product for engineers and technicians seeking reliable semiconductor components for demanding electronic applications.
Explore more semiconductor devices and rectifiers in our extensive EnvMart catalog to find the perfect components for your electronics projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 5 amperes, suitable for medium power circuits.
This diode has a peak reverse repetitive voltage rating of 800 volts, providing protection against high voltage.
It is packaged in a DO-214AB (SMC) format, which is designed for surface mount applications.
The peak reverse recovery time is 1500 nanoseconds, enabling efficient switching in circuit designs.
The operating temperature range is from -55°C to 150°C, allowing it to perform in harsh environmental conditions.
The dimensions of this model are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
The maximum forward voltage drop is 1.15 volts, which contributes to energy efficiency.
It features a single diode configuration with 2-pin connectivity for straightforward installation.
This diode is suitable for power management circuits, motor control systems, industrial automation, automotive electronics, and power supplies.
The peak non-repetitive forward surge current is rated at 100 amperes.
The peak reverse current is specified at 10 microamperes (10μA).
This diode is manufactured by Taiwan Semiconductor.
