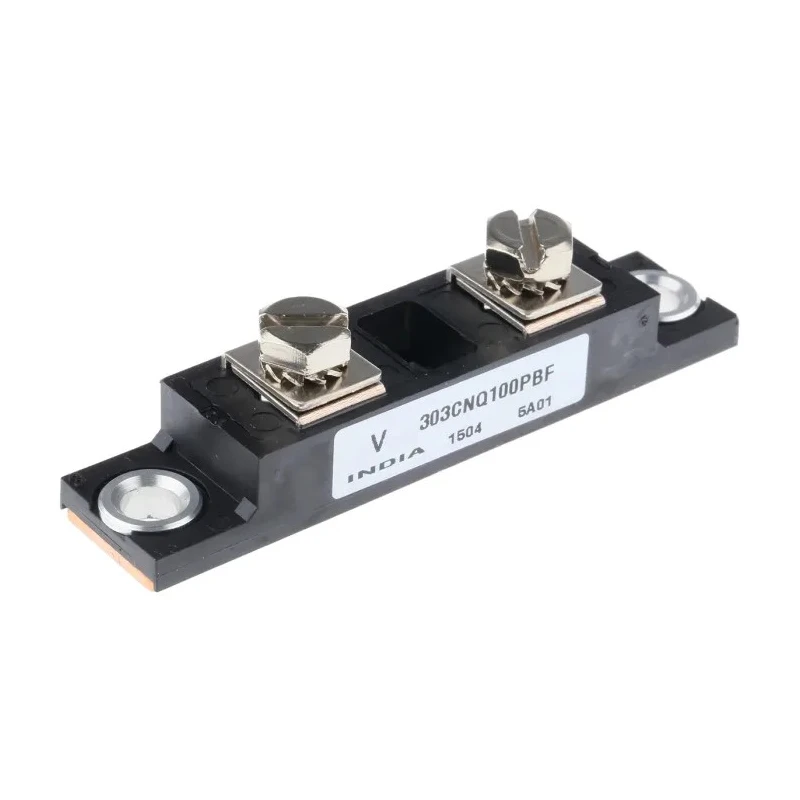

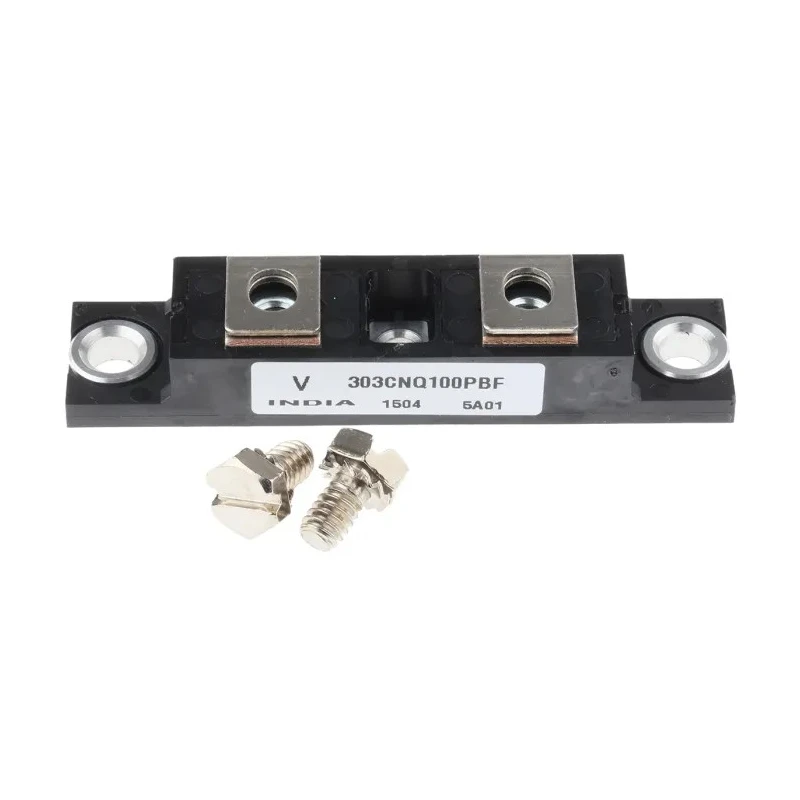

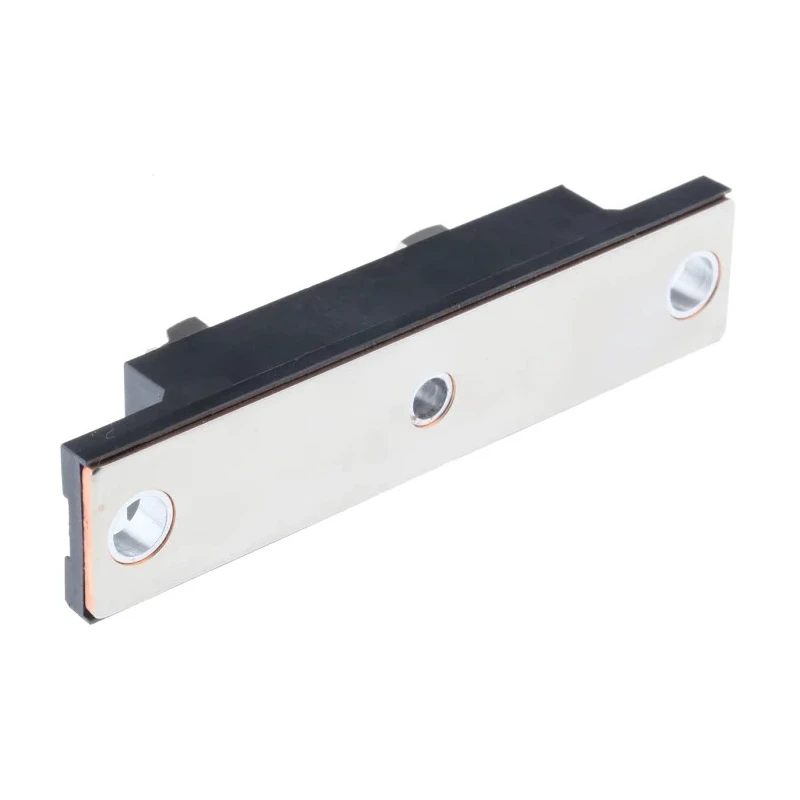

Vishay 100 V 300 A Schottky Diode 3-Pin TO-244 VS-303CNQ100PBF
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 12.6mm |
| Brand | Vishay |
| Height | 17.5mm |
| Length | 93mm |
| Model | VS-303CNQ100PBF |
| Width | 21mm |
| Mount Type | Panel |
| Series | VS |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-244 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 300A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 4.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 22kA |
| Maximum Forward Voltage Vf | 0.75V |
| Vishay 100 V 200 A Diode Schottky 3-Pin TO-244Brand | Vishay |
| DAWIN 100V 400A, Dual Schottky Diode, 2-Pin 3DM-2NIE DH2S200N010SEBrand | DAWIN Electronics |
Key Features
- This diode features a panel mount type and TO-244 package.
- It has a maximum continuous forward current of 300A.
- The peak reverse repetitive voltage is rated at 100V.
- With a maximum forward voltage of 0.75V, it enables low power losses.
- It supports a peak non-repetitive forward surge current up to 22kA.
- Operating temperature ranges from -55°C to 175°C for wide thermal tolerance.
- The diode configuration is common cathode with 3 pins.
- Physical dimensions include 93mm length and 21mm width.
Product Description
Vishay VS-303CNQ100PBF Schottky Diode 3-Pin TO-244 is a high performance semiconductor diode designed to deliver efficient power rectification with very low forward voltage drop and fast switching times.
This diode is ideal for industrial power electronics, automotive power supplies, and high-frequency switching applications where minimal power loss and thermal resistance are critical.
The device features a robust TO-244 package with panel mount capability and operates reliably across a wide temperature range from -55°C to 175°C.
The diode supports a maximum continuous forward current of 300A and can withstand peak non-repetitive forward surge currents up to 22kA, making it suitable for high transient conditions.
Key electrical parameters include a peak reverse voltage of 100V, a maximum forward voltage drop of 0.75V and a low peak reverse leakage current of 4.5mA, which contribute to higher efficiency and durability in demanding environments.
This diode has a common cathode configuration with 3 pins for panel mounting. Compact dimensions and low thermal resistance support integration in dense electronic assemblies. It complies with industry standards but is not certified under automotive specific approvals.
The component is new and made for use in industrial, automotive, and electronic manufacturing applications. Explore the Electronics & Electricals category at EnvMart for more semiconductors and discrete components suited for precision and power electronic engineering.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-303CNQ100PBF Schottky diode is 300A.
This diode has a peak reverse repetitive voltage rating of 100V.
The maximum forward voltage drop for the VS-303CNQ100PBF is 0.75V.
The physical dimensions of this diode are 93mm in length, 21mm in width, and 17.5mm in height.
This model can withstand a peak non-repetitive forward surge current of up to 22kA.
The operating temperature range for the Vishay VS-303CNQ100PBF is from -55°C to 175°C.
This diode features a panel mount type configuration.
The VS-303CNQ100PBF has a common cathode configuration with 3 pins.
The peak reverse leakage current for this model is rated at 4.5mA.
This diode uses a TO-244 package type.
The Vishay VS-303CNQ100PBF is manufactured in India.
This Schottky diode is suitable for industrial power electronics, automotive power supplies, and high-frequency switching applications.
