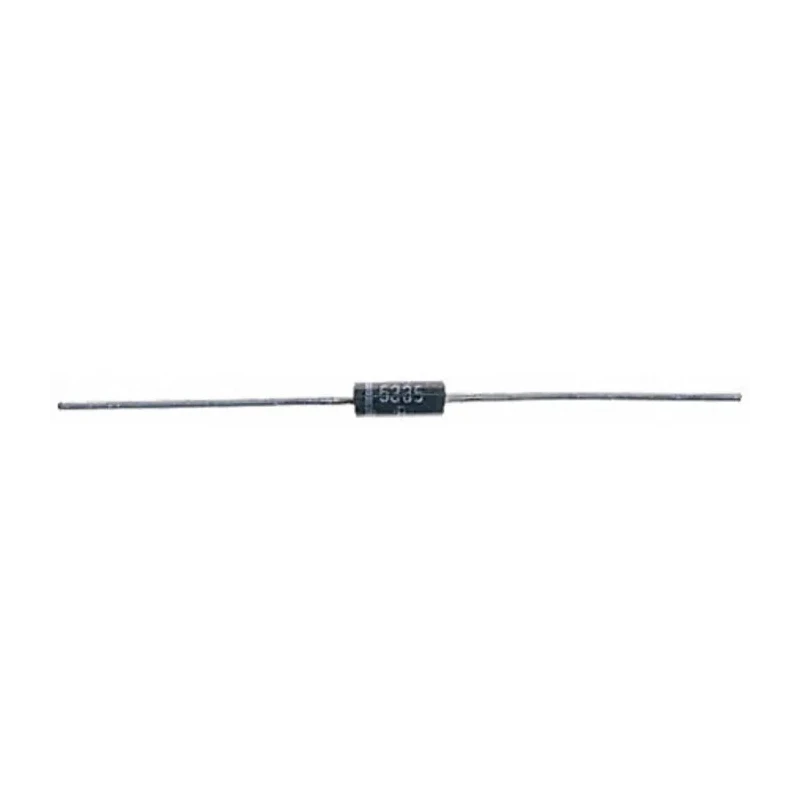

Vishay 600 V 1 A Glass Passivated Junction Fast Switching Rectifier General Purpose 2-Pin DO-204AL 1N4946GP-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | Vishay |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N4946GP-E3/54 |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | 1N4942GP thru 1N4948GP |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-204AL |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | WEEE 2002/96/EC, JESD 22-B106, MIL-S-19500, RoHS 2002/95/EC, UL 94 V-0 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 250ns |
| Vishay 600V 1A, Silicon Junction Diode, 2-Pin DO-204AL 1N4946GPBrand | Vishay |
Key Features
- Mount type is through hole ensuring easy PCB installation.
- Maximum continuous forward current rated at 1 ampere.
- Peak reverse repetitive voltage of 600 volts for high-voltage applications.
- Fast switching with a peak reverse recovery time of 250 nanoseconds.
- Operates reliably between -65°C to 175°C ambient temperature.
- Single diode configuration with 2-pin DO-204AL package.
- Maximum forward voltage drop of 1.3 volts for efficient power usage.
- Meets automotive standard AEC-Q101 for enhanced reliability.
Product Description
Vishay 1N4946GP-E3/54 is a glass passivated junction fast switching rectifier designed for general-purpose use in power electronics. It supports a maximum continuous forward current of 1 ampere and can withstand peak reverse repetitive voltage up to 600 volts, making it suitable for a wide range of industrial and electronic applications.
This diode utilizes a through-hole mounting type in a DO-204AL 2-pin package, facilitating straightforward assembly on printed circuit boards. The device features a fast reverse recovery time of 250 nanoseconds, enabling efficient switching in high-frequency circuits.
Temperature tolerance ranges from -65°C minimum to 175°C maximum, ensuring reliable performance under harsh environmental conditions. The forward voltage drop is capped at 1.3 volts to reduce power loss during conduction. Its compact physical dimensions, with length 5.2 mm and diameter 2.7 mm, allow for dense installation in circuit layouts.
The rectifier meets key international standards including RoHS compliance, JESD 22-B106, MIL-S-19500, and UL 94 V-0 for flammability. Additionally, it adheres to automotive standard AEC-Q101, confirming its robustness for automotive electronics.
Mount type is through hole ensuring easy PCB installation. Maximum continuous forward current rated at 1 ampere. Peak reverse repetitive voltage of 600 volts for high-voltage applications. Fast switching with a peak reverse recovery time of 250 nanoseconds.
Operates reliably between -65°C to 175°C ambient temperature. Single diode configuration with 2-pin DO-204AL package. Maximum forward voltage drop of 1.3 volts for efficient power usage. Meets automotive standard AEC-Q101 for enhanced reliability.
Complies with RoHS 2002/95/EC and other international standards. Compact dimensions: length 5.2 mm, height and width 2.7 mm.
This diode is ideal for industrial, electronic manufacturing, automotive, and power supply applications where fast switching and reliable rectification are critical. Explore more Vishay semiconductors and power component solutions at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is rated at 1 ampere.
This diode can withstand a peak reverse repetitive voltage of up to 600 volts.
The maximum forward voltage drop for this rectifier is 1.3 volts.
It features a fast reverse recovery time of 250 nanoseconds.
This diode operates reliably between -65°C and 175°C.
It utilizes a through-hole mounting type in a DO-204AL package, facilitating easy PCB installation.
The dimensions of this model are 5.2 mm in length and 2.7 mm in diameter.
It meets the automotive standard AEC-Q101 for enhanced reliability in automotive applications.
This diode complies with RoHS 2002/95/EC, JESD 22-B106, MIL-S-19500, and UL 94 V-0 for flammability.
The peak non-repetitive forward surge current rating for this diode is 25 amperes.
This model has a single diode configuration with a 2-pin setup.
The peak reverse current for this rectifier is rated at 1 microampere.
