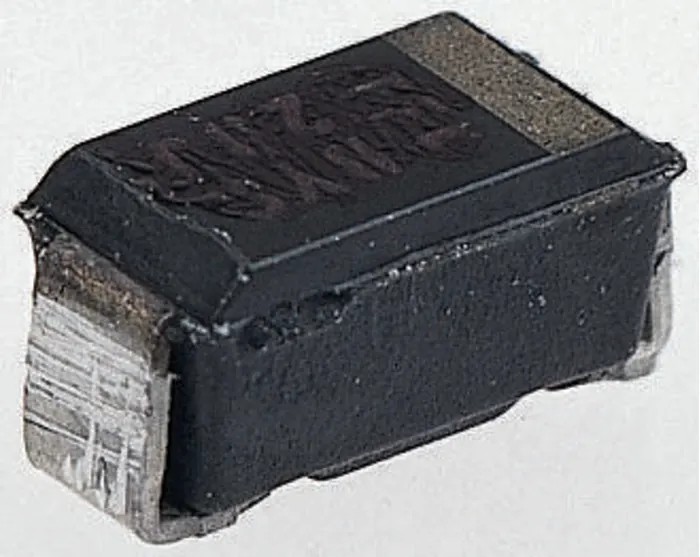

Vishay Standard Recovery General Purpose Diode 50 V 1.5 A Surface Mount DO-214AA S2A-E3/52T
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 13in |
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | S2A-E3/52T |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | S2A thru S2M |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA (SMB) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1.5A |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 1A |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 1.15V |
| Peak Reverse Recovery Time trr | 2μs |
Key Features
- Designed for general purpose rectification in electronic circuits.
- Compact DO-214AA (SMB) package suitable for surface mounting.
- Maximum forward voltage drop of 1.15 V ensures efficient operation.
- Wide operating temperature range from -55°C to 150°C for reliability.
- Peak non-repetitive forward surge current of 50 A for transient conditions.
- Automotive qualified with AEC-Q101 standard compliance.
- RoHS compliant and meets UL 94V-0 flammability standards.
- Fast recovery time of 2 microseconds supports high-speed switching applications.
Product Description
Vishay S2A-E3/52T is a standard recovery general purpose diode designed for robust electronic circuit applications requiring reliable rectification. Featuring a peak reverse repetitive voltage rating of 50 V and a maximum continuous forward current of 1.5 A, this diode ensures efficient and dependable operation within various electronic devices.
The diode is housed in a compact DO-214AA (SMB) surface mount package with dimensions of approximately 4.57 mm length, 3.94 mm width, and 2.24 mm height. It incorporates a single diode configuration with a low forward voltage drop of 1.15 V, optimizing power efficiency and minimizing heat generation during operation.
Operating over a broad temperature range from -55°C to 150°C, the Vishay S2A-E3/52T diode suits demanding industrial, automotive, and consumer electronics environments. It is compliant with the AEC-Q101 automotive standard, RoHS 2002/95/EC directives, and meets UL 94V-0 flammability criteria, underscoring its quality and safety credentials.
The device supports a peak non-repetitive forward surge current of 50 A, providing resilience against transient overloads. Its fast peak reverse recovery time of 2 microseconds facilitates high-speed switching applications, vital for advanced power management and signal rectification tasks.
Typical use cases include general purpose rectification, power supply circuits, voltage clamping, and signal demodulation across industrial, automotive, and electronic manufacturing sectors. Vishay’s semiconductor diode series S2A to S2M offers versatile options meeting diverse electronic design requirements.
Designed for general purpose rectification in electronic circuits. Compact DO-214AA (SMB) package suitable for surface mounting. Maximum forward voltage drop of 1.15 V ensures efficient operation. Wide operating temperature range from -55°C to 150°C for reliability.
Peak non-repetitive forward surge current of 50 A for transient conditions. Automotive qualified with AEC-Q101 standard compliance. RoHS compliant and meets UL 94V-0 flammability standards. Fast recovery time of 2 microseconds supports high-speed switching applications.
2-pin diode configuration optimized for versatile use in power and signal circuits. Explore the full Vishay range in Schottky diodes and rectifiers at EnvMart for reliable performance in your semiconductor applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse repetitive voltage rating of this diode is 50 V.
This model has a maximum continuous forward current capacity of 1.5 A.
The DO-214AA package has dimensions of approximately 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.
The maximum forward voltage drop for this diode is 1.15 V, which ensures efficient operation.
It operates over a wide temperature range from -55°C to 150°C.
The diode supports a peak non-repetitive forward surge current of 50 A.
Yes, this model is automotive qualified with AEC-Q101 standard compliance.
It has a fast peak reverse recovery time of 2 microseconds, suitable for high-speed switching applications.
This diode has a 2-pin configuration.
The S2A-E3/52T is a general purpose rectifier diode.
It is RoHS compliant and meets UL 94V-0 flammability standards.
This diode is suitable for general purpose rectification, power supply circuits, voltage clamping, and signal demodulation.
