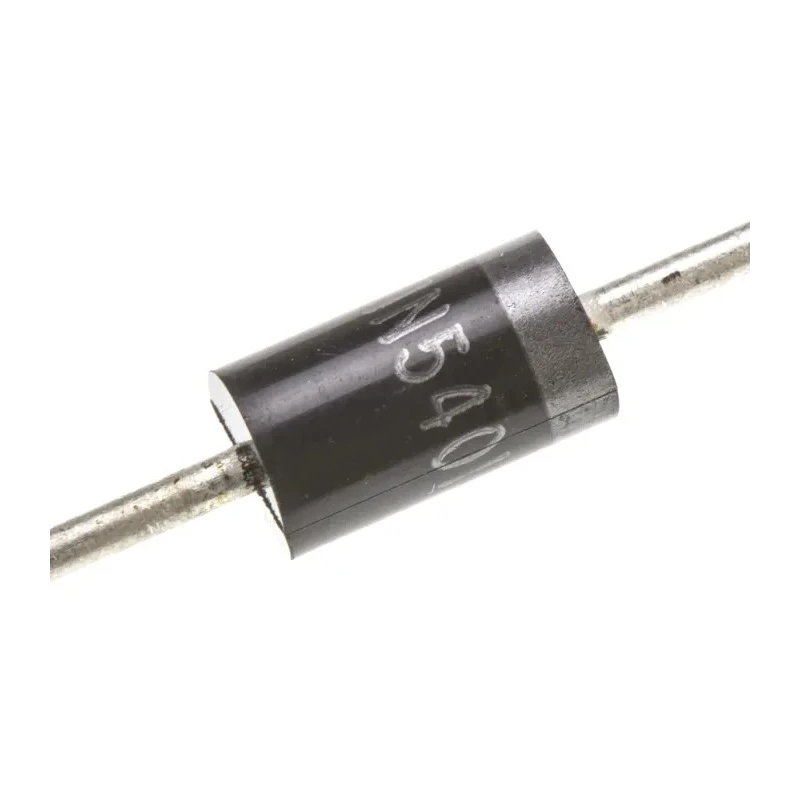

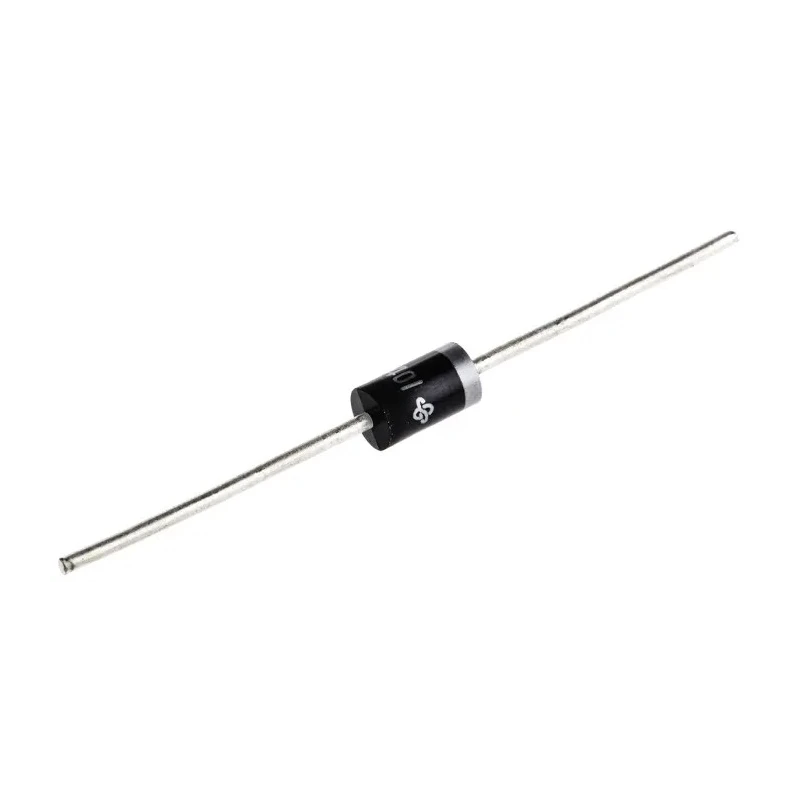

Vishay 100 V 3 A General Purpose Rectifier Diode 2-Pin DO-201AD 1N5401-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 9.5mm |
| Length | 9.5mm |
| Model | 1N5401-E3/54 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1N5401 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -50°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 1.2V |
| Vishay 100V 3A, Silicon Junction Diode, 2-Pin DO-201AD 1N5401Brand | Vishay |
| onsemi 100V 3A, Silicon Junction Diode, 2-Pin DO-201AD 1N5401Brand | ON Semiconductor |
Key Features
- Features a through-hole mount type and DO-201AD package size.
- Supports a peak non-repetitive forward surge current of up to 200 A.
- Operates effectively in temperatures ranging from -50°C to 150°C.
- Boasts a low forward voltage drop of 1.2 V for efficient rectification.
- Matte tin plated leads ensure excellent solderability compliant with industry standards.
- Designed with a molded epoxy body and flame retardant to UL94 V-0 rating.
- Wide industrial applications including converters, inverters, freewheeling diodes, and power supplies.
Product Description
The Vishay 1N5401-E3/54 diode is a high-performance general purpose rectifier that delivers a maximum forward current rating of 3 A and a peak reverse voltage of 100 V. Packaged in the DO-201AD form factor, this diode features a robust molded epoxy body which provides durability and excellent thermal resistance for demanding industrial environments.
Key benefits of this device include a low forward voltage drop of 1.2 V, ensuring efficient energy use during rectification, and a very low leakage current which enhances performance stability. The diode supports surge currents up to 200 A non-repetitively, protecting circuits during transient events.
Constructed to operate reliably across a wide temperature range from -50°C to 150°C, it is ideal for use in power electronic circuits requiring dependable switching and rectification in harsh conditions. Matte tin plated leads guarantee strong solderability and mechanical strength, complying with J-STD-002 and JESD 22-B102 standards. Additionally, the device is flame retardant to UL94 V-0, enhancing safety in thermal events.
Applications include general purpose rectification in power converters, inverters, freewheeling diode circuits, and power supply units typically found in industrial, manufacturing, and electronic assembly contexts.
Features a through-hole mount and DO-201AD package enabling easy PCB integration. Supports 3 A continuous forward current and 100 V peak reverse voltage ratings. Capable of withstanding 200 A peak non-repetitive forward surge current for transient immunity.
Wide operating temperature range from -50°C to 150°C for reliable performance. Low forward voltage drop of 1.2 V reduces power loss in circuits. Molded epoxy body with flame retardant UL94 V-0 rating for durability and safety.
Matte tin plated leads ensure excellent solderability and mechanical reliability.
Choose Vishay 1N5401-E3/54 for dependable, efficient rectification in a variety of industrial applications. Explore more high-quality semiconductor components in the Vishay range through EnvMart’s extensive catalog.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating for this diode is 3 A.
The peak reverse voltage for the 1N5401-E3/54 diode is 100 V.
This diode can support a peak non-repetitive forward surge current of up to 200 A.
It operates effectively in temperatures ranging from -50°C to 150°C.
The forward voltage drop for the 1N5401-E3/54 is 1.2 V.
This model features a through-hole mount type, suitable for PCB integration.
The diode is packaged in a DO-201AD form factor.
The dimensions are 9.5 mm in length, 9.5 mm in height, and 5.3 mm in diameter.
The diode has a molded epoxy body and matte tin plated leads for improved solderability.
It is suitable for general purpose rectification in power converters, inverters, freewheeling diode circuits, and power supply units.
The peak reverse current for the 1N5401-E3/54 is rated at 5 μA.
The molded epoxy body is flame retardant and has a UL94 V-0 rating.
