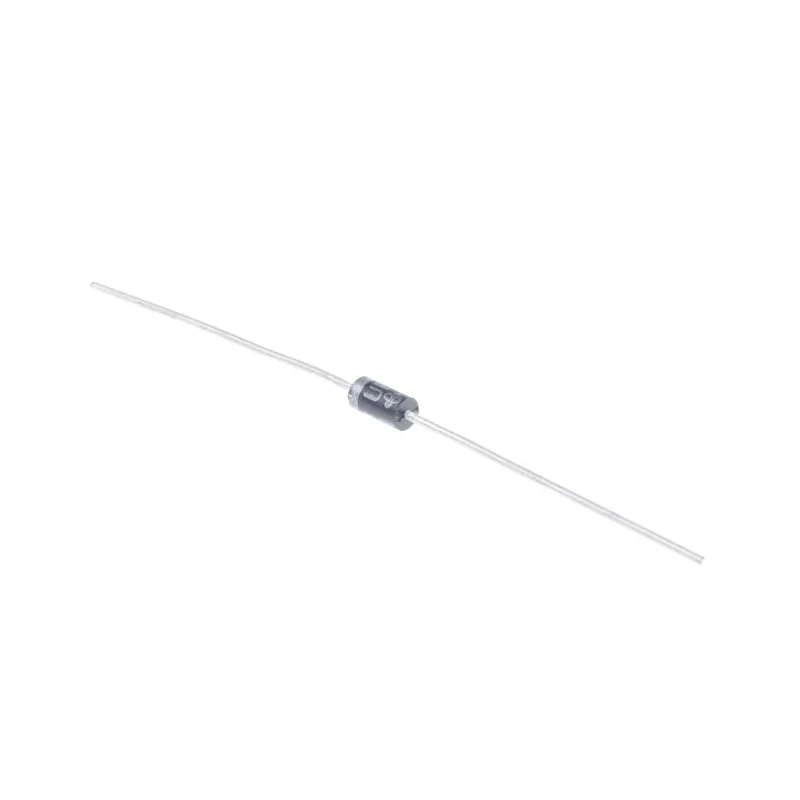

Vishay 200 V 1 A General Purpose Diode 2-Pin DO-204AL UF4003-E3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | Vishay |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | UF4003-E3 |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | UF400 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-204AL |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | UL 94 V-0, RoHS, J-STD-002, JESD 22-B106, JESD 22-B102, JESD 201 Class 1A |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 50ns |
Key Features
- Through hole mount type suitable for various circuit applications.
- DO-204AL package ensures compact size with 2.7 mm height and diameter.
- Maximum forward voltage rated at 1 V for efficient conduction.
- Peak reverse repetitive voltage of 200 V for reliable blocking performance.
- Fast peak reverse recovery time of 50 ns enhances switching performance.
- Operates within temperature range from -55°C to 150°C.
- Pin count of 2 for straightforward integration in electronic designs.
- Equipped with ultrafast recovery diode technology for SMPS and inverter use.
Product Description
Vishay UF4003-E3 is a general purpose diode designed for efficient performance in electronic and power applications. This diode features a 200 V peak reverse voltage and a 1 A maximum continuous forward current, making it ideal for switched-mode power supplies, inverters, and other high-frequency circuits.
The diode utilizes a through-hole mounting style and is housed in a compact DO-204AL package with dimensions approximately 2.7 mm in height, width, and diameter, and a length of 5.2 mm. Its maximum forward voltage is 1 V, ensuring lower conduction losses and energy efficiency.
With a peak reverse recovery time of just 50 ns, the UF4003-E3 enables rapid switching, enhancing circuit responsiveness and reducing electromagnetic interference. It operates reliably within a wide temperature range from -55°C to 150°C, suitable for industrial, laboratory, and commercial environments.
The device complies with key standards including UL 94 V-0 flammability, RoHS directives, and J-STD-002, ensuring quality and environmental compliance. Its design is optimized for durability and performance without automotive standard certification.
Through hole mount type suitable for various circuit applications. DO-204AL package ensures compact size with 2.7 mm height and diameter. Maximum forward voltage rated at 1 V for efficient conduction. Peak reverse repetitive voltage of 200 V for reliable blocking performance.
Fast peak reverse recovery time of 50 ns enhances switching performance. Operates within temperature range from -55°C to 150°C. Pin count of 2 for straightforward integration in electronic designs. Equipped with ultrafast recovery diode technology for SMPS and inverter use.
Conforms to industry standards including UL 94 V-0, RoHS, and J-STD-002. This diode is ideal for use in industrial electronics, power conversion, manufacturing, laboratory settings, and commercial electronics systems. Explore more high-quality semiconductor electronic components and discrete devices on EnvMart for your technical and industrial applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak reverse repetitive voltage for the Vishay UF4003-E3 diode is 200 V.
This diode can handle a maximum continuous forward current of 1 A.
The maximum forward voltage rating for the UF4003-E3 is 1 V.
The DO-204AL package has a height, width, and diameter of approximately 2.7 mm, and a length of 5.2 mm.
The peak reverse recovery time for the Vishay UF4003-E3 is 50 ns, which enhances its switching performance.
This diode operates reliably within a temperature range from -55°C to 150°C.
The UF4003-E3 uses a through-hole mounting style, suitable for various circuit applications.
This diode has a pin count of 2, allowing for straightforward integration in electronic designs.
The diode complies with UL 94 V-0, RoHS directives, and J-STD-002, ensuring quality and environmental compliance.
This diode is suitable for use in switched-mode power supplies, inverters, and other high-frequency circuits.
The peak non-repetitive forward surge current for the UF4003-E3 is 30 A.
The peak reverse current for the UF4003-E3 is 10 μA.
