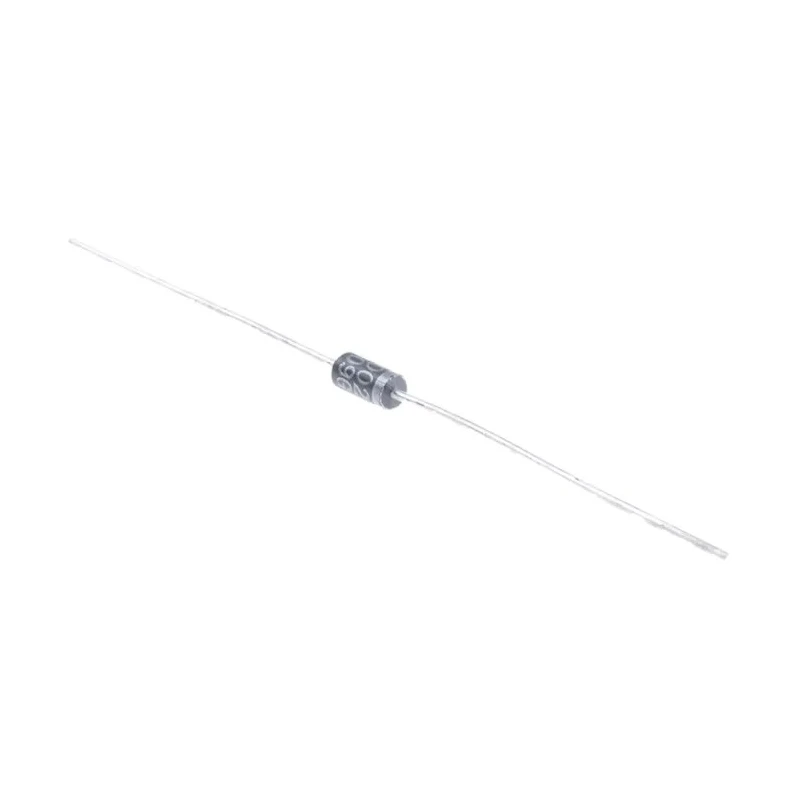

Vishay General Purpose Ultrafast Recovery Rectifier Diode 100 V 1 A DO-204AL UF4002-E3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | Vishay |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | UF4002-E3 |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | UFX |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-204AL |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 50ns |
Key Features
- Through hole mount type for reliable mechanical placement.
- Ultrafast recovery rectifier with peak reverse recovery time of 50 ns.
- Maximum forward voltage of 1 V ensures efficient conduction.
- Wide operating temperature range from -55°C to 150°C.
- General purpose single diode configuration suitable for various power electronics.
- Capable of peak non-repetitive forward surge current of 30 A.
- Designed for switched mode power supplies, inverters, and freewheeling diode applications.
Product Description
Vishay UF4002-E3 is a high-performance general purpose ultrafast recovery rectifier diode designed for use in electronic components and power connectors. It supports a peak reverse repetitive voltage of 100 V and a maximum continuous forward current of 1 A, packaged in a sturdy DO-204AL through hole mount package.
Featuring a peak reverse recovery time as low as 50 nanoseconds, this diode excels in fast switching applications such as very high frequency switched mode power supplies (SMPS), power inverters, and freewheeling diode circuits. Its low forward voltage drop of 1 V enhances the efficiency of electronic designs.
The diode offers reliable operation across a wide temperature range from -55°C to 150°C, ensuring durability in harsh industrial and commercial environments. With a compact form factor measuring 5.2 mm in length and 2.7 mm in diameter, it is suitable for compact PCB layouts.
The UF4002-E3 features a single diode configuration and a pin count of 2, conforming to the UFX series by Vishay. It is not automotive standard certified and does not carry additional industry approvals.
Through hole mount type. DO-204AL package ensuring easy PCB integration. Peak reverse current of 10 μA enhances circuit stability. Peak non-repetitive forward surge current capability of 30 A supports transient loads. Designed for industrial, laboratory, and general electronic component applications.
This diode offers dependable performance as part of Vishay's semiconductor product range. It is an ideal component for manufacturers and engineers working on power rectification and electronic circuit protection.
Explore more electronic components like Vishay semiconductors in the broader Electronics & Electricals category on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse repetitive voltage for the Vishay UF4002-E3 diode is 100 V.
This model can handle a maximum continuous forward current of 1 A.
The peak reverse recovery time for the UF4002-E3 is as low as 50 nanoseconds.
The diode operates within a temperature range of -55°C to 150°C.
The maximum forward voltage drop for this diode is 1 V.
This diode uses a through hole mount type for reliable mechanical placement.
The package type for this model is DO-204AL.
The UF4002-E3 measures 5.2 mm in length and has a diameter of 2.7 mm.
The diode is capable of handling a peak non-repetitive forward surge current of 30 A.
This diode has a pin count of 2.
The UF4002-E3 features a single diode configuration.
This model is suitable for applications in switched mode power supplies, inverters, and freewheeling diode circuits.
