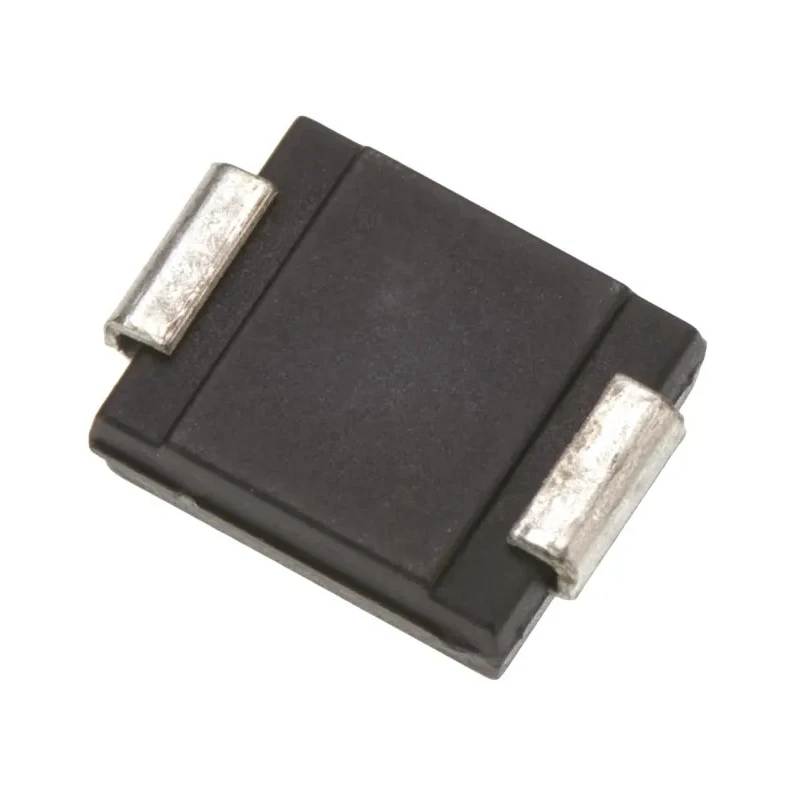

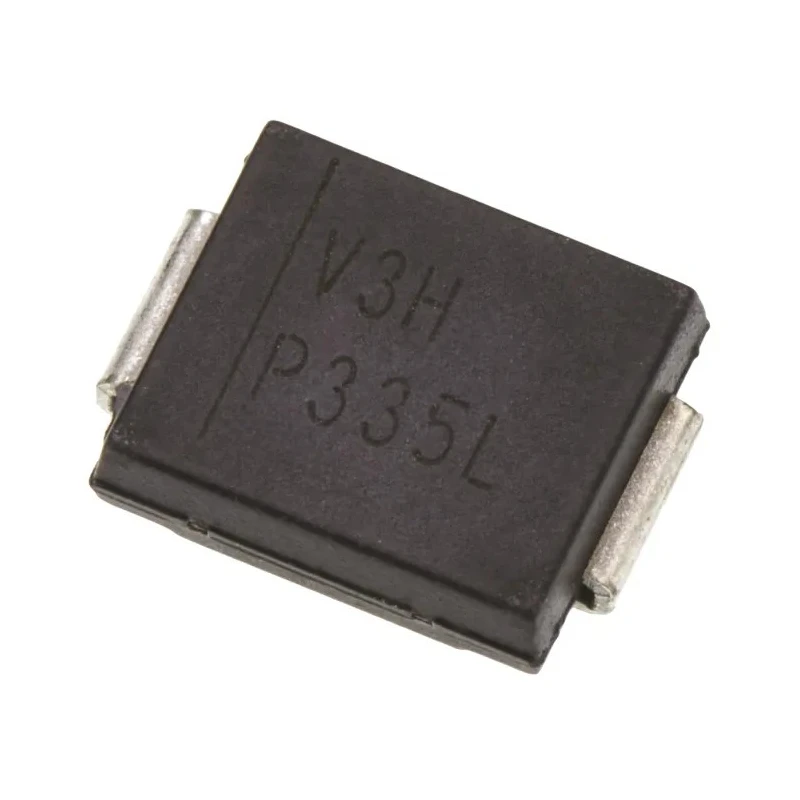

Vishay Schottky Diode 60 V 3 A Surface Mount 2-Pin DO-214AB Package VS-30BQ060-M3/9AT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 7.11mm |
| Model | VS-30BQ060-M3/9AT |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.2kA |
| Maximum Forward Voltage Vf | 520mV |
| Schottky barrier diode,30BQ060 3A 60VBrand | Vishay |
Key Features
- This diode uses a 2-pin DO-214AB (SMC) package type suitable for surface mounting.
- It supports a maximum continuous forward current of 3 amperes.
- The peak reverse repetitive voltage of this diode is rated at 60 volts.
- The maximum forward voltage drop is low at 520 millivolts, improving efficiency.
- Operating temperature ranges from -55°C to +150°C for robust performance.
- Peak non-repetitive forward surge current is rated at 1.2 kiloamperes, ensuring surge protection.
- The diode configuration is single with Schottky rectifier characteristics.
- Physical dimensions include length of 7.11 mm and width of 6.22 mm for compact PCB layouts.
Product Description
Vishay VS-30BQ060-M3/9AT Schottky diode is a high-performance discrete semiconductor designed for surface mounting applications. This device features a 2-pin DO-214AB (SMC) package and is engineered for industrial-grade fast switching with low forward voltage drop, making it highly efficient for power rectification tasks.
With a maximum continuous forward current rating of 3 A and a peak reverse repetitive voltage of 60 V, this diode is suitable for a wide range of electronic and power semiconductor uses. Its low maximum forward voltage of 520 mV reduces power loss and heat generation during operation.
The diode operates reliably over a broad temperature range from -55°C to 150°C, handling harsh environmental conditions found in industrial and commercial electronics manufacturing. Its peak non-repetitive forward surge current of 1.2 kA provides protection against transient current spikes.
Compact physical dimensions of 7.11 mm length and 6.22 mm width allow for efficient PCB space utilization, and its single diode configuration is targeted at rectifier applications where rapid switching is key. The very low peak reverse current (500 µA) enhances leakage performance, minimizing power waste in circuits.
Typical applications for this Vishay Schottky diode include high-speed rectification in industrial power supplies, automotive electronics systems that do not require automotive approval, and other commercial semiconductor uses.
This product is provided in new condition, ensuring fresh components for integration. It complies with relevant semiconductor and diode industry standards but does not carry specific certifications. Discover reliable semiconductor components like this Schottky diode in the Semiconductors category at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is rated at 3 amperes.
This model has a peak reverse repetitive voltage rating of 60 volts.
The maximum forward voltage drop for this diode is 520 millivolts, which improves efficiency during operation.
The diode has a length of 7.11 mm and a width of 6.22 mm, making it suitable for compact PCB layouts.
It operates reliably over a temperature range from -55°C to 150°C.
The peak non-repetitive forward surge current is rated at 1.2 kiloamperes.
This diode uses a 2-pin DO-214AB (SMC) package type suitable for surface mounting.
The diode configuration is single, featuring Schottky rectifier characteristics.
The peak reverse current is rated at 500 microamperes.
Typical applications include high-speed rectification in industrial power supplies and automotive electronics systems.
The country of origin for this diode is India.
This diode is a Schottky rectifier, known for its fast switching capabilities and low forward voltage drop.
