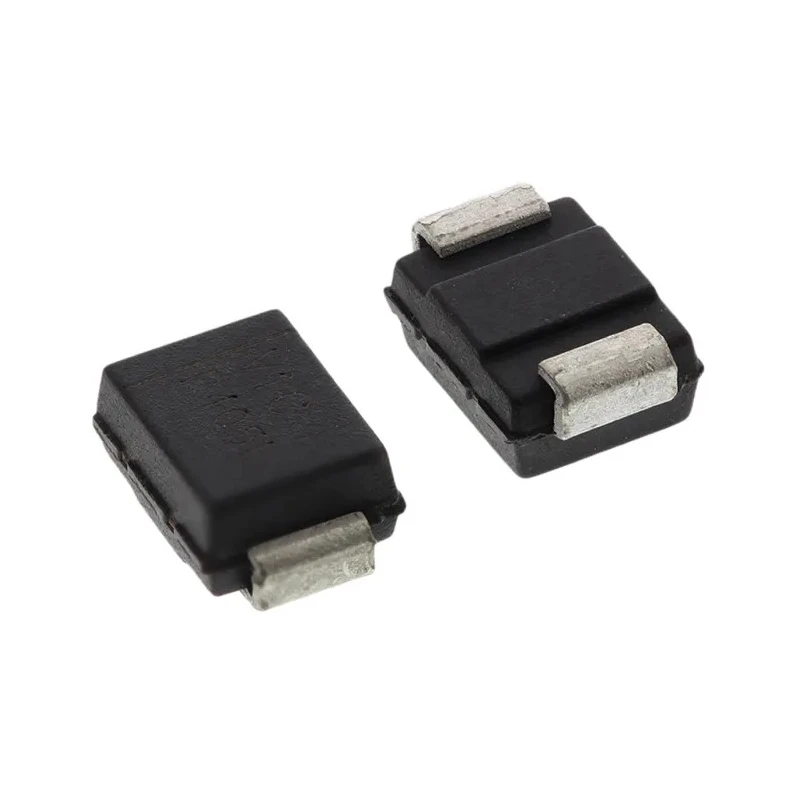

Vishay 15 V 1 A Schottky Diode 2-Pin DO-214AA VS-10BQ015-M3/5BT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 4.7mm |
| Model | VS-10BQ015-M3/5BT |
| Width | 3.8mm |
| Mount Type | Surface |
| Series | VSX |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 15V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 140A |
| Maximum Forward Voltage Vf | 440mV |
Key Features
- High-performance Schottky rectifier suitable for fast switching applications.
- Low forward voltage drop of 440 mV enhances efficiency.
- Surface mount type in compact DO-214AA package with 2 pins.
- Operates reliably within -55°C to 125°C temperature range.
- Peak non-repetitive forward surge current is rated at 140 A.
- Extremely short reverse recovery time minimizes power loss.
- Ideal for power and electronic component applications requiring quick switching.
- Single diode configuration in VSX series from Vishay.
Product Description
Vishay VS-10BQ015-M3/5BT is a high-performance Schottky diode designed for surface mount applications in electronic circuits requiring fast switching and low power loss. It is housed in a compact 2-pin DO-214AA package, measuring 4.7 mm in length and 3.8 mm in width, ensuring space-efficient integration into PCBs and electronic devices.
This diode supports a maximum continuous forward current of 1 A and withstands a peak reverse repetitive voltage of 15 V. Its maximum forward voltage drop of 440 mV contributes to enhanced energy efficiency, while the peak non-repetitive forward surge current rating of 140 A ensures robustness against transient surges.
The device operates reliably across a wide temperature range from -55°C up to 125°C, making it suitable for demanding industrial, power electronics, and communication equipment applications. The Schottky rectifier's extremely short reverse recovery time enables rapid switching capabilities, reducing switching losses significantly in power supply circuits and DC-DC converters.
As a member of Vishay's VSX series, this single diode configuration provides dependable performance for engineers designing efficient and compact electronic systems. It does not carry automotive standards or specific approvals but meets the essential requirements for high-speed rectification.
High-performance Schottky rectifier suitable for fast switching applications. Low forward voltage drop of 440 mV enhances efficiency. Surface mount type in compact DO-214AA package with 2 pins. Operates reliably within -55°C to 125°C temperature range.
Peak non-repetitive forward surge current is rated at 140 A. Extremely short reverse recovery time minimizes power loss. Ideal for power and electronic component applications requiring quick switching. Single diode configuration in VSX series from Vishay.
This Vishay Schottky diode is an excellent choice for industrial, electronics manufacturing, power management, telecommunications, and other commercial applications that demand efficient, reliable rectification solutions.
Discover additional Vishay semiconductor and diode products to meet your specific engineering needs by browsing the EnvMart range of professional electronic components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 1 A.
It has a peak reverse repetitive voltage rating of 15 V.
The maximum forward voltage drop is 440 mV.
It operates reliably within a temperature range of -55°C to 125°C.
This diode is housed in a compact DO-214AA package.
The diode features a 2-pin configuration.
The peak non-repetitive forward surge current is rated at 140 A.
The diode has an extremely short reverse recovery time, which minimizes power loss.
It supports surface mounting.
This model is part of the VSX series from Vishay.
The peak reverse current is rated at 500 μA.
The diode is manufactured in India.
