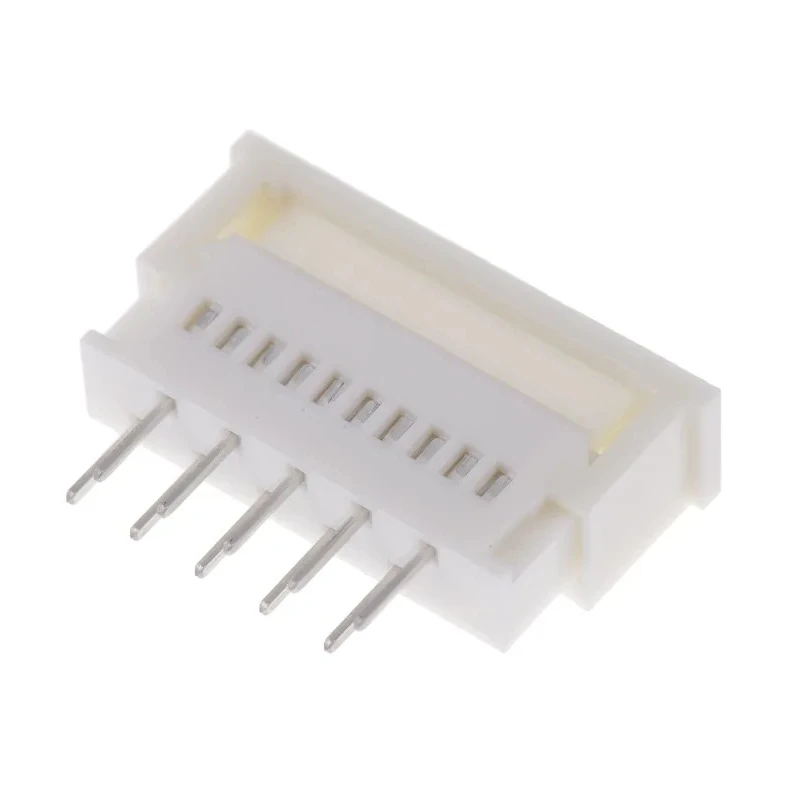

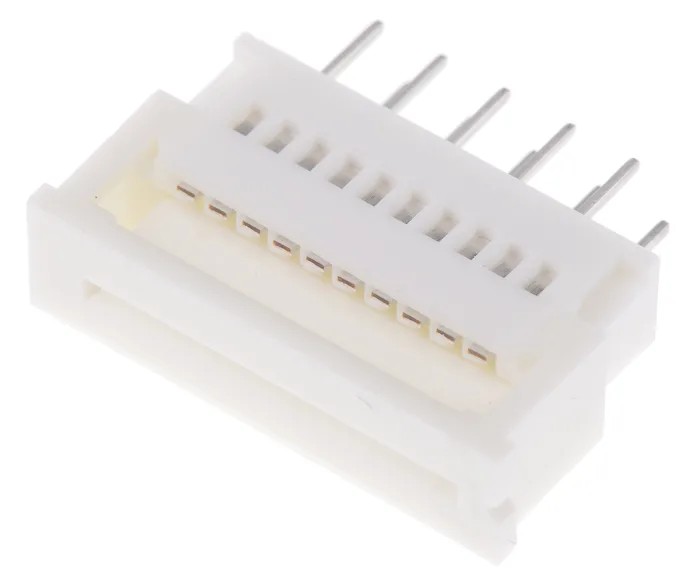

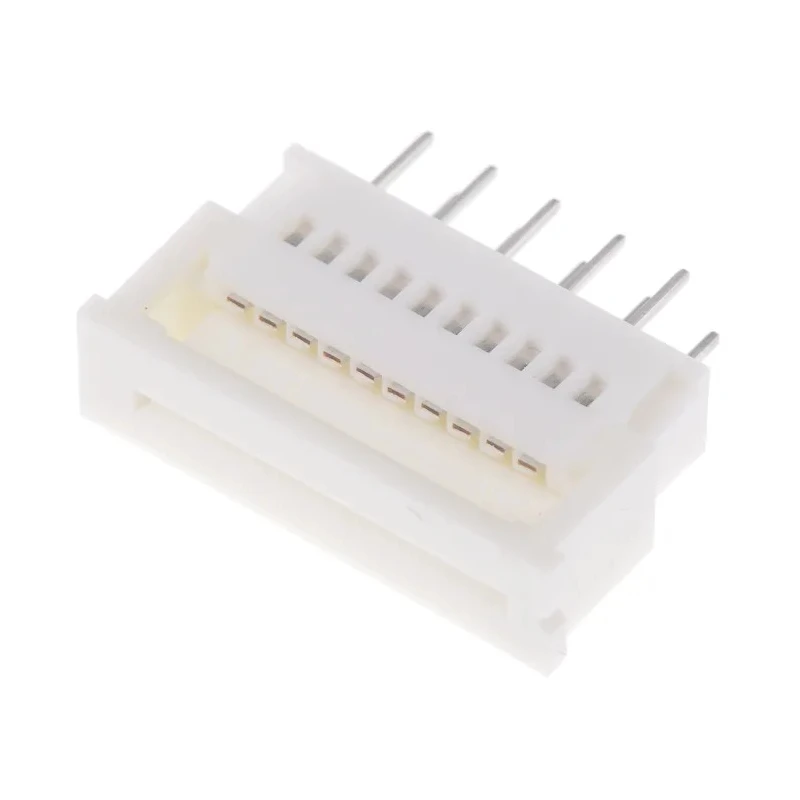

Molex 5597 1.25 mm Pitch 10 Way Straight Female FPC Connector Through Hole Solder 39-53-2105

Molex 39-53-2105 is a 5597 series 10 way straight female FPC connector featuring a fine 1.25 mm pitch designed specifically for compact electronic applications. This connector utilizes a Zero Insertion Force (ZIF) mechanism to reduce wear during repeated mating cycles, making it ideal for applications requiring frequent connect and disconnect.

The connector's phosphor bronze contacts are plated with tin over nickel to ensure reliable electrical conductivity and resistance to corrosion. Its polyethylene terephthalate housing provides robustness and chemical resistance, supporting use in various industrial environments. Rated for 1 amp current and 200 volts, it accommodates typical signal and low power electrical demands.

With its through hole mounting and locking mechanisms, this Molex FPC connector ensures firm and secure attachment to PCBs, suited for automotive electronics, consumer electronics, and industrial instrumentation. The single row, female-contact configuration supports flexible printed circuit (FPC) cables with slide type actuators for easy and secure cable insertion.

The connector operates reliably within temperature ranges from -20°C to 80°C, maintaining contact integrity under different environmental conditions. Its space-saving design is optimized for tight packaging constraints often found in modern electronic devices.

Zero Insertion Force (ZIF) enables minimal wear on mating contacts. Durable phosphor bronze contacts with tin over nickel plating. Polyethylene terephthalate housing for high chemical and temperature resistance. Through hole mount with locking mechanism ensures stable PCB attachment.

Supports 1A current and 200V voltage ratings for various electronic applications. Single row, 10 way female connector for flexible circuit connections. Operates from -20°C to 80°C in temperature varying environments. Slide type actuator for secure and easy cable connection.

This Molex 5597 series FPC Connector finds frequent use in automotive electronics, manufacturing, industrial controls, and consumer electronics subsystems where reliable FPC connections are essential. It supports efficient PCB assembly and long lifecycle operation in demanding industrial and laboratory environments. EnvMart customers sourcing connectors for precision electronics will benefit from its quality and design reliability.
