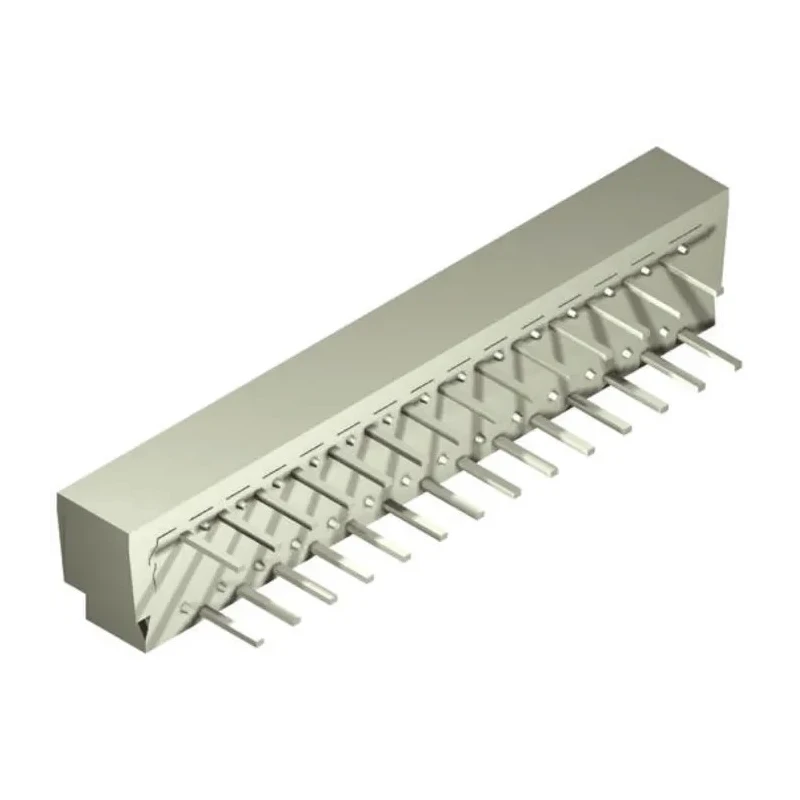

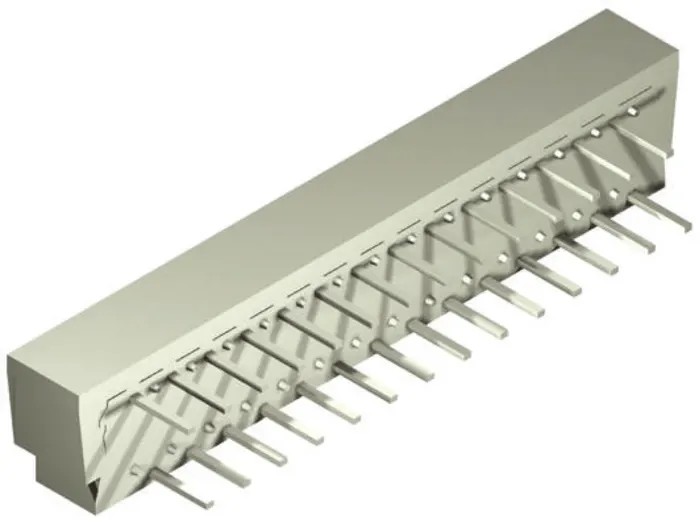

Molex 5597 1.25 mm Pitch 13 Way Right Angle Female FPC Connector, Solder 39-53-2134
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 13 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- Features a 13-contact female connector for FPC applications.
- Zero Insertion Force (ZIF) design ensures minimum wear over repeated cycles.
- Right angle orientation suitable for compact PCB layouts.
- Contact material is phosphor bronze with tin bismuth over nickel plating for reliable conductivity.
- Housing is made of durable polybutylene terephthalate suited for industrial use.
- Supports current rating of 1A and operating voltage up to 200V.
- Operates effectively between -20°C and 80°C temperature range.
- Slide type actuator provides easy insertion and secure connection of flexible printed circuits.
Product Description
Molex 39-53-2134 1.25 mm Pitch 13 Way Right Angle Female FPC Connector is a precision electronic component designed for secure, reliable interconnections in compact circuit board assemblies.
The connector features phosphor bronze contacts plated with tin bismuth over nickel, ensuring excellent electrical conductivity and corrosion resistance. Its right angle orientation and through-hole mounting type are ideal for space-limited applications where vertical clearance is a concern.
This connector uses a zero insertion force (ZIF) design with a slide-type actuator, enabling easy insertion of flexible printed circuits (FPC) with minimal wear, enhancing long-term durability. The locking mechanism ensures a secure, stable connection suitable for environments with mechanical vibrations or thermal cycling.
Rated for 1 Ampere current and 200 Volts operating voltage, the connector functions reliably within a temperature range from -20°C up to 80°C, making it suitable for electronic automotive and industrial applications. The housing material, polybutylene terephthalate, offers strong mechanical strength and heat resistance.
Applications include automotive electronics, consumer device assemblies, and other precision electronic manufacturing where dependable FPC connections are critical. 13 contact female connector optimized for FPC connections.
Phosphor bronze contact system with tin bismuth over nickel plating. Right angle orientation with through-hole mount construction. ZIF slide actuator for repeatable and low-force insertion. Locking mechanism provides secure mating under vibration.
Rated for 1A current and 200V voltage in industrial environments. Operating temperature range from -20°C to 80°C. Durable polybutylene terephthalate housing material. Manufactured in Japan maintaining high quality and reliability standards.
Discover more FPC Connectors and related components in the Electronics & Electricals category on EnvMart for precision industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of 1 Ampere.
The maximum operating voltage for this connector is 200 Volts.
It operates effectively within a temperature range of -20°C to 80°C.
The contact material is phosphor bronze with tin bismuth over nickel plating, and the housing is made of polybutylene terephthalate.
This model features a right angle orientation, making it suitable for compact PCB layouts.
This connector has 13 contacts.
It utilizes a through-hole mounting type.
The connector employs a zero insertion force (ZIF) design, which ensures minimal wear over repeated cycles.
The termination type is solder.
It is suitable for automotive electronics, consumer device assemblies, and other precision electronic manufacturing applications.
It includes a locking mechanism that provides a secure connection under vibration.
This connector is manufactured in Japan, maintaining high quality and reliability standards.
