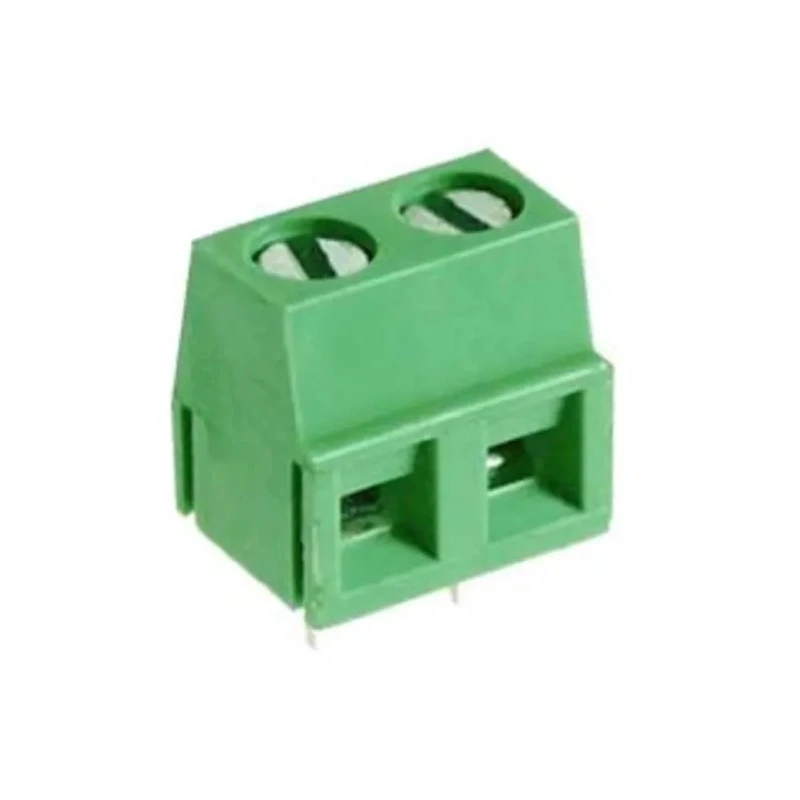

RS PRO PCB Terminal Block 2-Contact 5.08 mm Pitch Through Hole Mounting Polyamide 66 Housing 300V 10A 146-8345
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| Colour | Green |
| Orientation | Vertical |
| Current | 10A |
| Length | 10.16mm |
| Model | 146-8345 |
| Depth | 10.1mm |
| Width | 8.3mm |
| Mount Type | Through Hole |
| Housing Material | Polyamide 66 |
| Series | RS PRO |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | RoHS, cRUus approved |
| Number of Contacts | 2 |
| Minimum Wire Size mm² | 0.13mm² |
| Maximum Wire Size mm² | 1.31mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 16AWG |
| RS PRO PCB Terminal Block, 2-Contact, 5.08 mm Pitch, Through Hole, 1 RowBrand | RS PRO |
Key Features
- Constructed with polyamide 66 housing providing flame retardance and mechanical impact resistance.
- Supports a current rating of 10 A and voltage rating of 300 V for reliable electrical performance.
- Features screw termination for secure wire connections with wire sizes ranging from 0.13 mm² to 1.31 mm².
- Designed with vertical body orientation and green color for easy identification.
- Single row terminal block with two contacts spaced at a 5.08 mm pitch.
- Tin-plated brass contacts offer excellent conductivity and resistance to oxidation.
- Complies with RoHS and cRUus approvals ensuring environmental and safety standards.
Product Description
RS PRO 146-8345 PCB Terminal Block is a 2-contact, 5.08 mm pitch connector engineered to provide efficient and secure electrical connections on printed circuit boards. Manufactured using polyamide 66 material, this terminal block exhibits strong mechanical resilience with UL 94-V0 flame retardance for enhanced safety in electronic assemblies.
The terminal block features a through hole mount style that facilitates easy direct mounting on PCBs. Its vertical orientation and green housing color simplify integration and identification in industrial and consumer electronic devices.
Designed for screw termination, this terminal block is equipped to handle wire sizes from 0.13 mm² to 1.31 mm² and accommodates AWG wire gauges 26 to 16. It supports a maximum current of 10 A and a voltage rating of 300 V, making it ideal for a variety of low to medium power electronic applications.
Contacts are made from tin-plated brass, ensuring conductive efficiency while resisting oxidation and wear over time, thus maintaining connection integrity. Compliance with RoHS and cRUus approvals guarantees adherence to environmental directives and electrical safety standards.
Polyamide 66 housing offers impact resistance and flame retardance. Two-contact design for PCB wiring with 5.08 mm pitch spacing. Through hole mounted for secure and robust PCB integration. Screw termination method for reliable wire connection.
Tin-plated brass contacts for enhanced conductivity. Rated for 10 A current and 300 V voltage. Green vertical body for easy identification on circuit boards. RoHS and cRUus certifications ensuring safety and compliance.
This PCB terminal block is suitable for use in industrial equipment, consumer electronics, control panels, and other electronic assembly environments. It ensures safe and reliable wire-to-board connections and supports efficient circuit design and maintenance.
Explore more professional-grade PCB Terminal Blocks and power connectors available at EnvMart to support your project and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage rating of 300 V and a current rating of 10 A, making it suitable for low to medium power electronic applications.
The contacts are spaced at a pitch of 5.08 mm, which is standard for many PCB applications.
It utilizes a through hole mounting style, allowing for direct and secure installation on printed circuit boards.
It accommodates wire sizes ranging from 0.13 mm² to 1.31 mm², or AWG gauges 26 to 16.
The housing is constructed from polyamide 66, which provides flame retardance and mechanical impact resistance.
This model features two contacts, designed for single row wiring on PCBs.
It is green in color, which aids in easy identification on circuit boards during installation and maintenance.
It has a length of 10.16 mm, a width of 8.3 mm, and a depth of 10.1 mm.
It employs a screw termination method, ensuring secure wire connections.
It complies with RoHS and cRUus approvals, ensuring adherence to environmental and safety standards.
It is suitable for use in industrial equipment, consumer electronics, control panels, and other electronic assembly environments.
The terminal block is designed with a vertical orientation, which can facilitate easier integration in certain PCB layouts.
