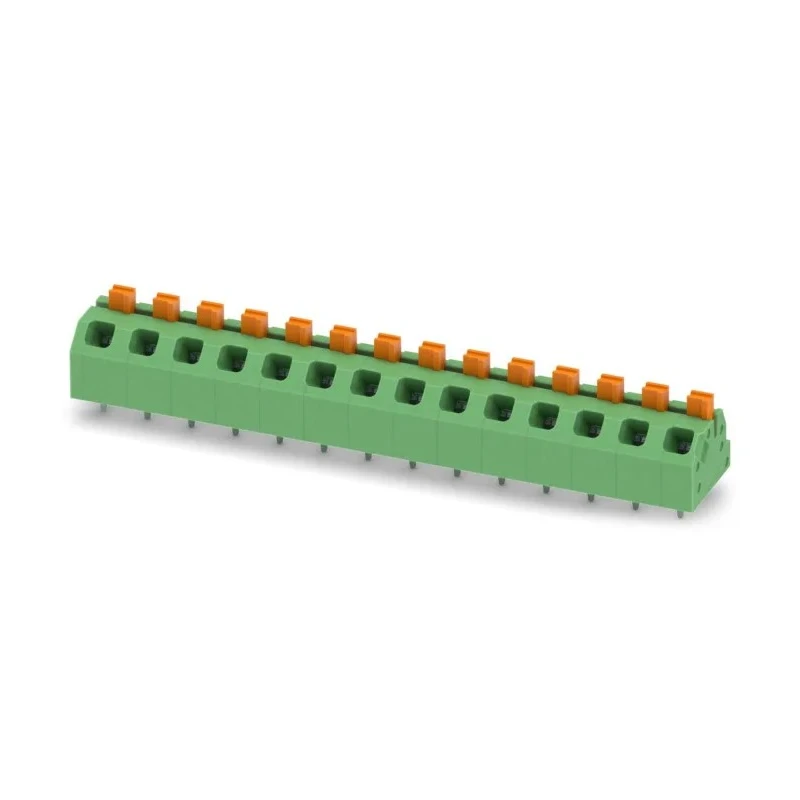

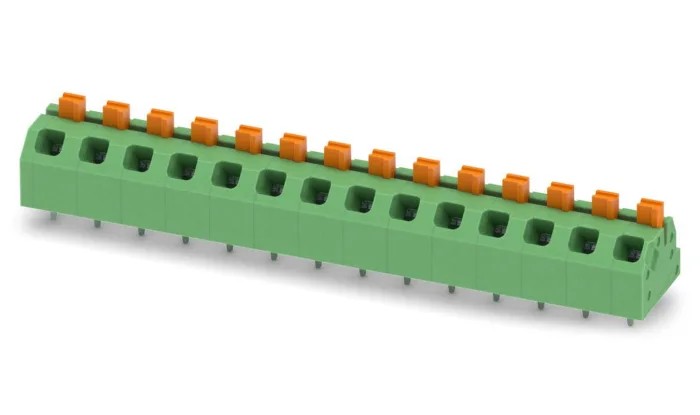

Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block, 14 Contacts, 5 mm Pitch, 16 A, 320 V, Polyamide 1862534

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block, 14 Contacts, 5 mm Pitch, 16 A, 320 V, Polyamide 1862534

Name: Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block, 14 Contacts, 5 mm Pitch, 16 A, 320 V, Polyamide 1862534
Brand: PHOENIX CONTACT
SKU: 214619
Price: 5.89 USD
Availability: InStock



Category PCB Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	320V
Brand	Phoenix Contact
Orientation	Angled
Current	16A
Model	1862534
Mount Type	Wave Soldering Mount
Housing Material	Polyamide
Series	SPTAF 1/14-5.0-EL
Number of Rows	1
Pitch	5mm
Standards/Approvals	EU RoHS, cULus Recognised
Number of Contacts	14
PCB Terminal block, nominal current	16 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 14, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green

Key Features

Constructed with durable polyamide housing for reliable insulation.
Features push-in spring connection for time-saving, tool-free wiring.
Angled orientation with 45° conductor and PCB connection direction.
Mountable via wave soldering ensuring secure attachment.
Includes finger-operated release button for convenient operation.
Integrated test option for quick and easy circuit verification.
Compact size ideal for space-restricted PCB applications.
Compliant with EU RoHS and recognized by cULus standards.

Product Description

Phoenix Contact 1862534 is an angled wave soldering mount PCB terminal block designed for industrial and electronic applications. It supports a nominal current of 16 A and nominal voltage of 320 V with a 5 mm pitch and 14 contact positions. The terminal block employs a push-in spring connection method, enabling quick and tool-free conductor insertion, saving assembly time and ensuring reliable contact force over the product's life.

The terminal block's polyamide housing provides excellent electrical insulation and mechanical stability. Its 45° conductor to PCB connection orientation allows for efficient board layout in compact assemblies where space is limited.

Mounting is by wave soldering, providing a strong and permanent connection to the PCB. A finger-operated release button facilitates wire removal and repositioning without additional tools.

The product also features an integrated test option, allowing convenient electrical testing without dismantling the connection. This terminal block meets industry standards including EU RoHS compliance and cULus recognition, ensuring safety and environmental compatibility.

Typical applications include industrial control panels, power distribution units, electronic equipment, and automation systems where secure, compact, and reliable PCB connections are critical.

Constructed with durable polyamide housing for reliable insulation. Features push-in spring connection for time-saving, tool-free wiring. Angled orientation with 45° conductor and PCB connection direction. Mountable via wave soldering ensuring secure attachment.

Includes finger-operated release button for convenient operation. Integrated test option for quick and easy circuit verification. Compact size ideal for space-restricted PCB applications. Compliant with EU RoHS and recognized by cULus standards.

Explore more PCB Terminal Blocks and connectors at EnvMart for superior quality and performance solutions tailored to your industrial and electronic needs.
