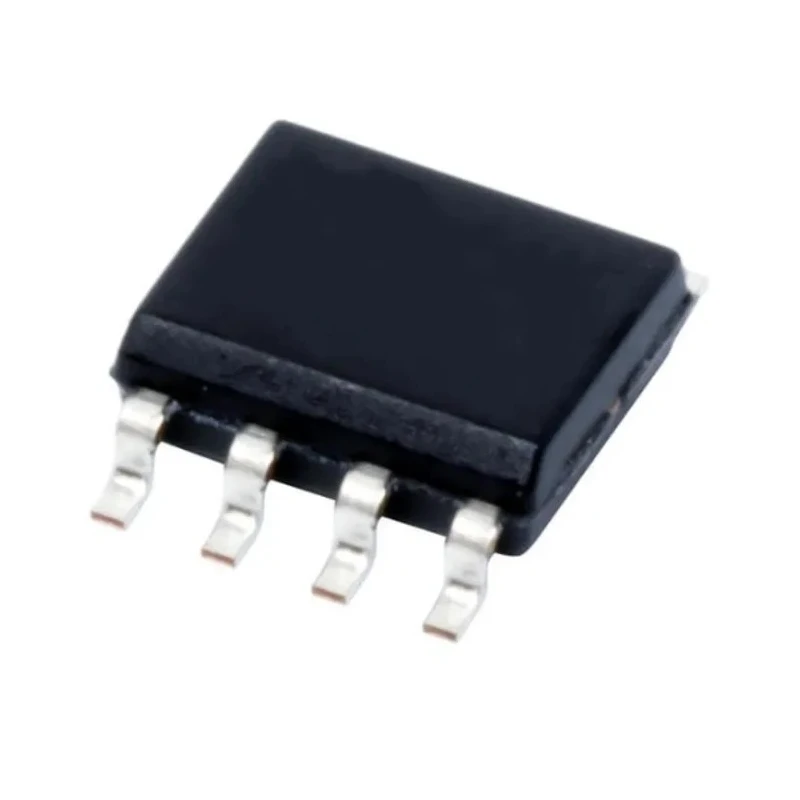

onsemi Insulated Gate Bipolar Transistor (IGBT) Module 6.5 A 22V 8-Pin SOIC NCD57090ADWR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.75mm |
| Length | 5mm |
| Model | NCD57090ADWR2G |
| Width | 4mm |
| Mount Type | Surface |
| Series | NCD57090 |
| Output Current | 6.5A |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Rise Time | 13ns |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 22V |
| Fall Time | 13ns |
| Driver Type | IGBT |
Key Features
- Supports complementary input with options such as active Miller clamp.
- Offers high system efficiency and internal 5 kVrms galvanic isolation.
- Features short propagation delays with accurate timing matching.
- Minimum and maximum operating temperatures range from -40°C to 125°C.
- Built for surface mount with an automotive standard AEC-Q100 compliance.
- Package dimensions are 5mm length, 4mm width, and 1.75mm height.
- Driver type is IGBT with five driver outputs included.
- Rise and fall times are both 13ns ensuring fast switching.
Product Description
onsemi NCD57090ADWR2G is a high-current single channel Insulated Gate Bipolar Transistor (IGBT) module designed to deliver up to 6.5 A output current. Encapsulated in a compact 8-pin Small Outline Integrated Circuit (SOIC) package, this module operates at a supply voltage of 22V and is engineered for high power management efficiency in industrial and automotive applications.
Featuring a 5 kVrms internal galvanic isolation, the device significantly enhances system safety and reliability. The module accepts complementary inputs and supports additional configurations such as active Miller clamp to improve switching behavior and reduce losses.
The product includes 5 output drivers and provides rapid switching speeds with 13ns rise and fall times, contributing to increased overall performance in power electronics designs. Its surface mount device (SMD) format complies with the automotive grade standard AEC-Q100, ensuring durability in harsh operating conditions.
Operating temperature range extends from -40°C to 125°C, suitable for a wide range of industrial environments. Physical dimensions of 5mm length, 4mm width, and 1.75mm height facilitate compact PCB layouts.
This IGBT Module is typically deployed in automotive systems, industrial power supplies, motor control, and other high power switching applications. It delivers robust electromagnetic compatibility and transient immunity required in sophisticated power management IC designs.
Supports complementary input with options such as active Miller clamp. Offers high system efficiency and internal 5 kVrms galvanic isolation. Features short propagation delays with accurate timing matching. Minimum and maximum operating temperatures range from -40°C to 125°C.
Built for surface mount with an automotive standard AEC-Q100 compliance. Package dimensions are 5mm length, 4mm width, and 1.75mm height. Driver type is IGBT with five driver outputs included. Rise and fall times are both 13ns ensuring fast switching.
This product supports industrial, automotive, and power electronics manufacturing environments requiring reliable and high performing gate driver modules. Explore more power management ICs and semiconductor modules for your industrial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This module can deliver an output current of up to 6.5 A.
The minimum supply voltage for this model is 22V.
The package dimensions are 5mm in length, 4mm in width, and 1.75mm in height.
It operates within a temperature range of -40°C to 125°C.
This IGBT module includes five output drivers.
It is designed for surface mount installation.
Both rise and fall times are specified at 13ns, ensuring fast switching.
Yes, it complies with the automotive standard AEC-Q100.
The driver type for this module is IGBT.
It features 5 kVrms internal galvanic isolation, enhancing system safety and reliability.
It is typically deployed in automotive systems, industrial power supplies, and motor control applications.
Yes, it supports complementary input with options such as active Miller clamp.
