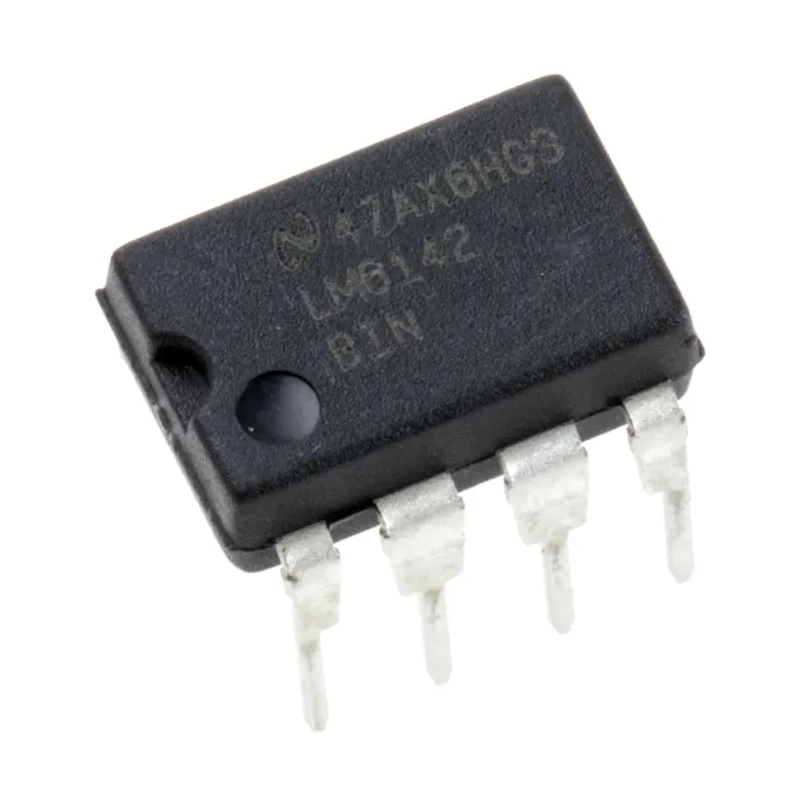

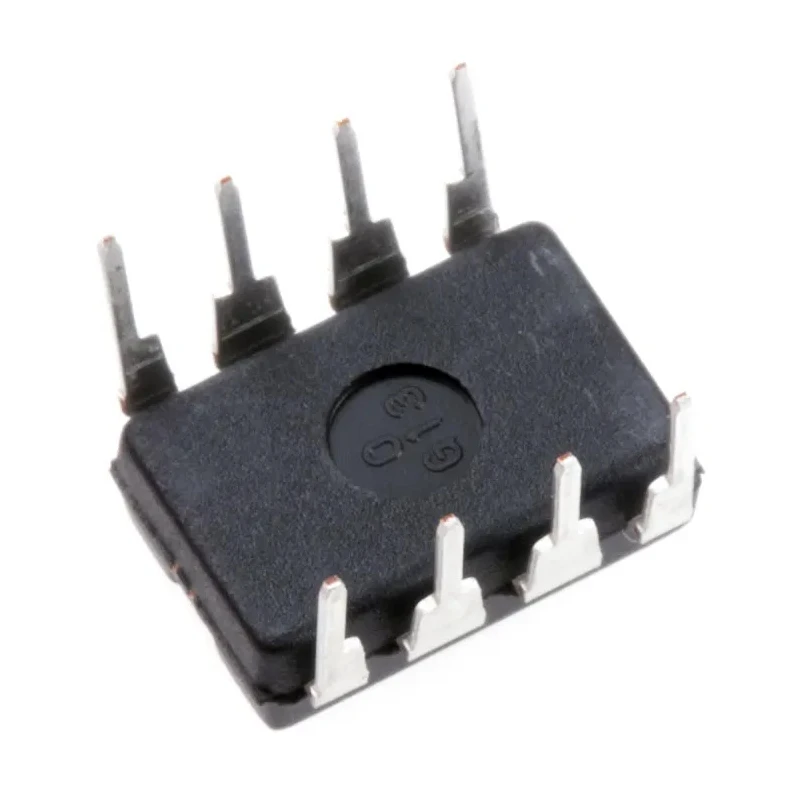

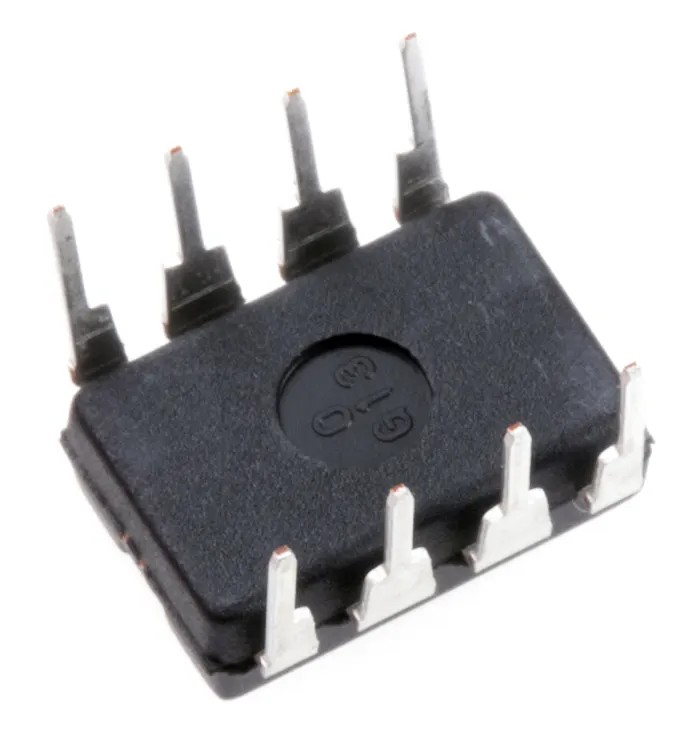

Texas Instruments Operational Amplifier 17 MHz 8-Pin 24V MDIP LM6142BIN/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 3.3mm |
| Length | 9.27mm |
| Model | LM6142BIN/NOPB |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LM6142 |
| Output Current | 8mA |
| Maximum Operating Temperature | 85°C |
| Package Type | MDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 17MHz |
| Input Bias Current | 300 nA |
| Vos - Input Offset Voltage | 3.3 mV |
| Slew Rate | 25V/μs |
| Input Offset Current | 30 nA |
Key Features
- Dual channel operational amplifier designed for through-hole mounting.
- Gain Bandwidth Product (GBP) of 17 MHz for high-speed applications.
- Wide supply voltage range from 3 V to 24 V.
- Low input bias current of 300 nA and input offset current of 30 nA.
- Slew rate of 25 V/μs ensures fast transient response.
- Operating temperature range from -40°C to 85°C suitable for industrial environments.
- Compact dimensions with length 9.27mm, width 6.35mm, and height 3.3mm.
- Supplied in an MDIP package facilitating easy PCB integration.
Product Description
Texas Instruments LM6142BIN/NOPB is a high-speed dual operational amplifier designed for performance in demanding applications. This amplifier operates at a gain bandwidth product of 17 MHz and is supplied in an 8-pin MDIP package for through-hole mounting on printed circuit boards.
With a flexible supply voltage range from 3 V to 24 V and a low input bias current of 300 nA, it is suitable for precision analog signal processing in industrial, laboratory, and electronic applications. The input offset voltage of 3.3 mV and an input offset current of 30 nA allow accurate signal amplification with minimal error.
The device features a slew rate of 25 V/μs, enabling rapid response to signal changes, ideal for waveform generation and active filtering. It operates reliably across a wide ambient temperature range from -40°C to 85°C, making it suitable for harsh industrial conditions.
Dimensionally compact, with length 9.27 mm, width 6.35 mm, and height 3.3 mm, the LM6142BIN/NOPB fits easily into power supply circuits, instrumentation, and control systems. The output current maximum of 8 mA supports driving moderate load impedances.
This part is RoHS compliant, confirming its adherence to environmental regulations. Supplied in tubes, it is ready for immediate placement into production lines to improve assembly efficiency.
Dual channel design for versatile analog applications. Wide supply voltage range of 3 V to 24 V for flexible power supply options. High gain bandwidth and slew rate for precise and fast signal handling. Robust temperature operation suited for industrial environments.
Compact size and MDIP packaging standard for PCB mounting.
Ideal for use in electronic instrumentation, signal processing, industrial automation, and communication equipment, the Texas Instruments LM6142BIN/NOPB operational amplifier is a reliable component for high-speed analog circuit design.
Explore the extensive range of Operational Amplifiers and semiconductor solutions available at EnvMart for your electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM6142BIN/NOPB has a gain bandwidth product of 17 MHz, making it suitable for high-speed applications.
This operational amplifier operates with a supply voltage range from 3 V to 24 V.
The maximum output current for this model is 8 mA, allowing it to drive moderate load impedances.
It operates reliably within a temperature range of -40°C to 85°C, suitable for industrial environments.
The dimensions of this operational amplifier are 9.27 mm in length, 6.35 mm in width, and 3.3 mm in height.
The LM6142BIN/NOPB has a slew rate of 25 V/μs, ensuring fast transient response.
This operational amplifier is designed for through-hole mounting, which facilitates easy PCB integration.
The input bias current for this model is 300 nA, allowing for precision in analog signal processing.
The input offset voltage is 3.3 mV, which helps in minimizing error during signal amplification.
Yes, this operational amplifier is RoHS compliant, confirming its adherence to environmental regulations.
The LM6142BIN/NOPB features a dual channel design, making it versatile for various analog applications.
The input offset current for the LM6142BIN/NOPB is 30 nA, contributing to its accuracy in signal amplification.
