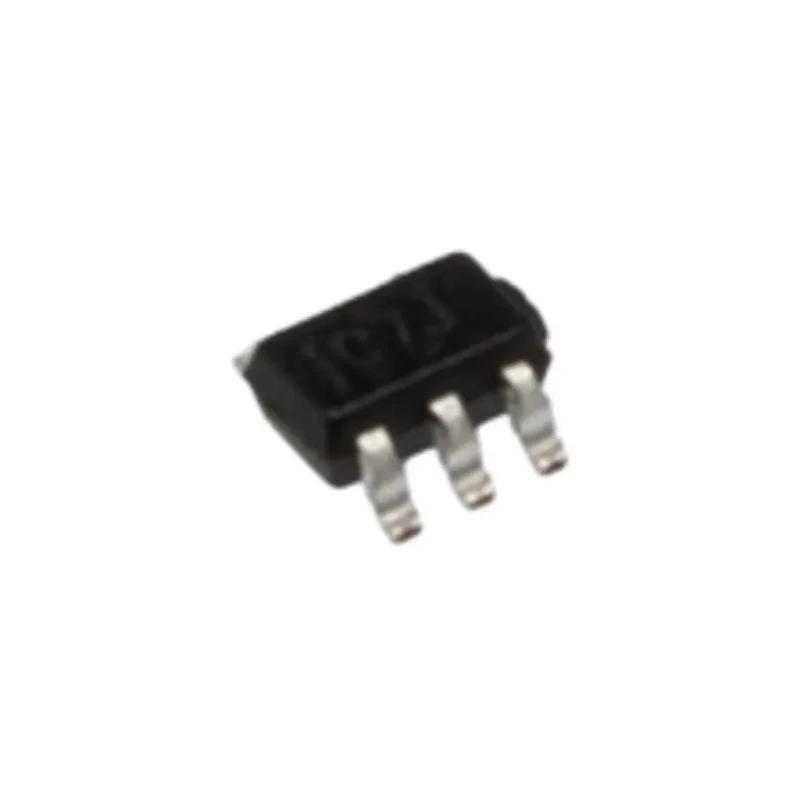

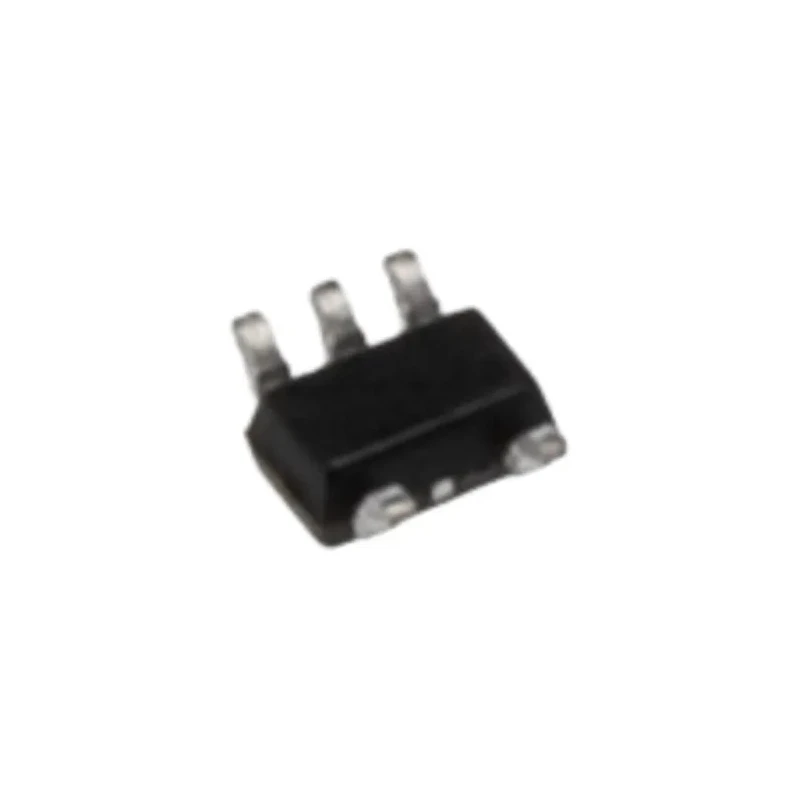

Texas Instruments Schmitt Trigger Inverter SN74LVC1G17DCKR, 1 Element, 5-Pin SOT-SC70, 1.65V to 5.5V Supply
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Model | SN74LVC1G17DCKR |
| Mount Type | Surface |
| Output type | Schmitt Trigger |
| Series | SN74LVC1G17 |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-SC70 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | Inverter |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ CL | 13ns |
| Maximum Low Level Output Current | 32mA |
Key Features
- Operates from 1.65V to 5.5V supply voltage range for flexible integration.
- Single inverter element per chip with Schmitt trigger input.
- Maximum propagation delay of 13ns at CL for fast signal processing.
- Surface mount package type SOT-SC70 with 5 pins for compact PCB layouts.
- Wide operating temperature range from -40°C to 125°C for industrial applications.
- RoHS compliant meeting environmental and safety standards.
- Maximum high level output current of -4mA and low level output current of 32mA ensures stable output drive.
- Part of the SN74LVC1G17 series using LVC logic family for compatibility and performance.
Product Description
Texas Instruments SN74LVC1G17DCKR Schmitt Trigger Inverter is a single element logic inverter featuring Schmitt trigger input designed for use in precision digital circuits requiring noise immunity and signal conditioning. Operating from a supply voltage range of 1.65V to 5.5V, this inverter offers flexible power options suitable for low voltage and standard voltage systems. It comes in a compact 5-pin SOT-SC70 surface mount package enabling space-efficient PCB footprints.
The device has a maximum propagation delay of 13ns at the specified capacitive load, providing rapid signal inversion for high-speed circuit requirements. The inverter supports a wide ambient operating temperature range from -40°C up to 125°C making it reliable for industrial, automotive, and extended temperature applications. Compliance with RoHS standards ensures environmental safety and industry acceptance.
This inverter output offers a maximum high level output current of -4mA and a maximum low level output current of 32mA, supplying strong drive capability for various loads. It belongs to the SN74LVC1G17 series within the LVC logic family, known for low voltage CMOS logic performance.
Operates with supply voltage from 1.65V to 5.5V. Single Schmitt trigger inverter element per chip. Maximum propagation delay of 13ns at capacitive load. Compact 5-pin SOT-SC70 surface mount package. Wide operating temperature from -40°C to 125°C.
RoHS compliant for environmental safety. Maximum high and low-level output current of -4mA and 32mA respectively. LVC logic family ensuring low power operation.
This product is ideal for use in industrial electronics, automotive systems, embedded computing, and general semiconductor-based circuit design. It is suitable for applications demanding fast switching speeds, noise immunity, and low power consumption. The compact package and broad operating temperature make it versatile for various reliable digital logic functions.
Explore more semiconductor logic ICs and inverter modules at EnvMart for your project and industrial needs.
Explore more products in our Inverter ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates from a supply voltage range of 1.65V to 5.5V, allowing for flexible integration in various applications.
The maximum propagation delay is 13ns at the specified capacitive load, enabling fast signal processing.
It supports a wide operating temperature range from -40°C to 125°C, making it suitable for industrial applications.
This model comes in a compact 5-pin SOT-SC70 surface mount package, ideal for space-efficient PCB layouts.
The maximum high level output current is -4mA, providing stable output drive capabilities.
The maximum low level output current is 32mA, ensuring strong drive capability for various loads.
It belongs to the LVC logic family, known for low power operation and compatibility with various digital circuits.
It features a Schmitt trigger input, designed for noise immunity and signal conditioning in precision digital circuits.
Yes, it is RoHS compliant, meeting environmental and safety standards.
Each chip contains a single inverter element, making it suitable for specific logic functions without excess complexity.
This model is designed for surface mounting, which is common in compact electronic designs.
It is suitable for industrial electronics, automotive systems, and embedded computing, particularly where fast switching speeds and noise immunity are required.
