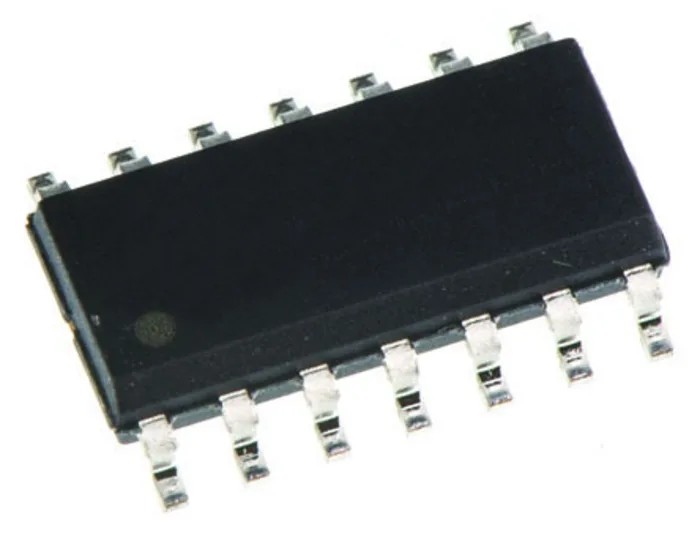

Texas Instruments Schmitt Trigger Input Inverter 6 Elements, 14-Pin SOIC SN74HC14DR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | SN74HC14DR |
| Width | 3.91mm |
| Mount Type | Surface |
| Compatibility | Input CMOS, Output CMOS |
| Output type | Push Pull, CMOS |
| Series | SN74HC14 |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 2 to 6 V |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Logic Function | Inverter |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -5.2mA |
| Maximum Propagation Delay Time @ CL | 155ns |
| Maximum Low Level Output Current | 5.2mA |
| onsemi Schmitt Trigger Input CMOS Inverter 6, 14-Pin SOICBrand | onsemi |
Key Features
- Features six inverter elements per chip with Schmitt Trigger inputs.
- Operates within a supply voltage range of 2 to 6 volts.
- Has a maximum propagation delay of 155 nanoseconds.
- Suitable for surface mount applications with a 14-pin SOIC package.
- Supports operating temperatures from -40°C to 85°C, ensuring reliability in varied environments.
- Utilizes HC logic family technology for CMOS compatibility and low power.
- Output stage is Push Pull CMOS type providing stable signal drive capability.
Product Description
Texas Instruments SN74HC14DR is a Schmitt Trigger input inverter logic IC from the 74HC family designed for digital electronic circuits requiring fast switching and low power consumption. The device contains six independent inverter elements suitable for switching and buffering applications.
This 14-pin SOIC packaged IC operates over a voltage range from 2 to 6 volts and supports operating temperatures from -40°C to 85°C, making it compatible for robust industrial, laboratory, and consumer electronics projects.
Featuring Push Pull CMOS output stages and CMOS input logic compatibility, the SN74HC14DR offers high noise immunity and switching speed with low power dissipation. Its Schmitt Trigger inputs improve signal integrity by providing hysteresis and noise rejection on input signals.
Each inverter element has a maximum propagation delay of 155 nanoseconds with output current ratings of -5.2 mA (high level) and 5.2 mA (low level), suitable for driving moderate loads in logic circuits.
The compact SOIC package measures 8.65 mm length, 3.91 mm width, and 1.58 mm height and is designed for surface mount technology, supporting automated PCB assembly processes. Six inverter elements with Schmitt Trigger inputs enhance signal conditioning.
Low operating voltage and power consumption make it ideal for portable and battery-powered devices. Surface mount package supports modern manufacturing standards. Wide temperature range ensures reliable operation in various industrial environments.
Typically used in digital logic, signal conditioning, and buffer amplifier applications. Perfect choice for electronic design projects requiring high-speed CMOS logic. Explore more semiconductor components and logic ICs suitable for industrial automation and electronic instrumentation on EnvMart.
Explore more products in our Inverter ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 2 to 6 volts.
The SN74HC14DR contains six independent inverter elements per chip.
It has a maximum propagation delay of 155 nanoseconds.
The dimensions of this model are 8.65 mm in length, 3.91 mm in width, and 1.58 mm in height.
The output stage is of Push Pull CMOS type, providing stable signal drive capability.
It supports operating temperatures from -40°C to 85°C, ensuring reliability in varied environments.
This unit features Schmitt Trigger inputs, which enhance signal integrity by providing hysteresis and noise rejection.
The SN74HC14DR comes in a 14-pin SOIC package, suitable for surface mount applications.
The maximum high level output current is -5.2 mA, and the maximum low level output current is 5.2 mA.
It belongs to the HC logic family, ensuring CMOS compatibility and low power consumption.
Yes, its surface mount package is designed to support modern manufacturing standards, including automated PCB assembly processes.
It is typically used in digital logic, signal conditioning, and buffer amplifier applications.
