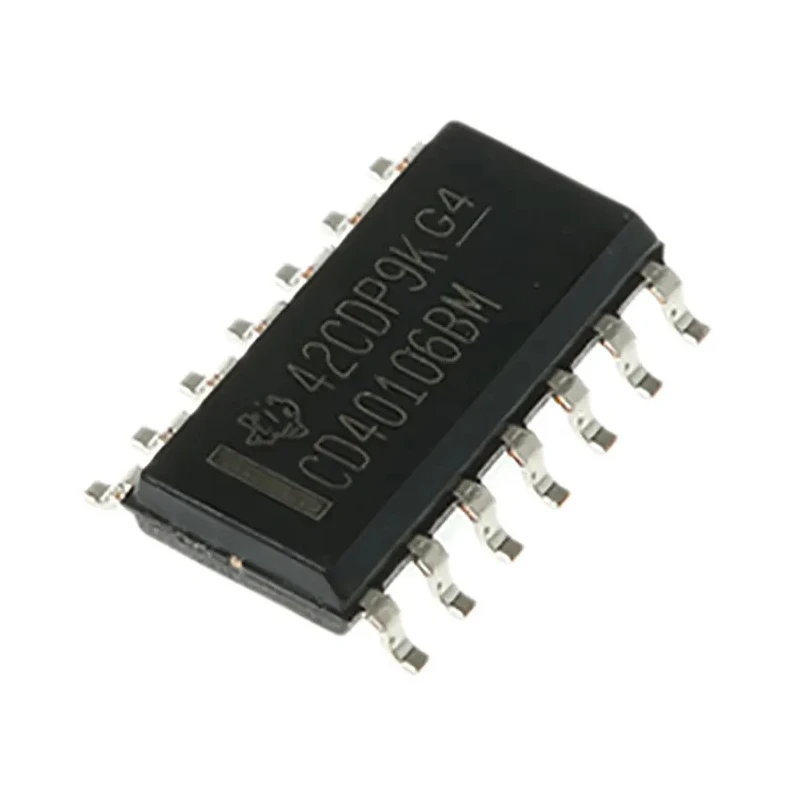

Texas Instruments Schmitt Trigger Input Inverter 6 Elements, 14-Pin SOIC CD40106BM

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Schmitt Trigger Input Inverter 6 Elements, 14-Pin SOIC CD40106BM

Name: Texas Instruments Schmitt Trigger Input Inverter 6 Elements, 14-Pin SOIC CD40106BM
Brand: Texas Instruments
SKU: 203454
Price: 1.46 USD
Availability: InStock



Category Inverter ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.58mm
Length	8.65mm
Model	CD40106BM
Width	3.91mm
Mount Type	Surface
Series	CD40106B
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-55°C
Pin Count	14
Number of Elements per Chip	6
Maximum Supply Voltage	18V
Logic Family	4000
Logic Function	Inverter
Minimum Supply Voltage	3V
Maximum High Level Output Current	-4.2mA
Maximum Propagation Delay Time @ CL	280ns
Maximum Low Level Output Current	4.2mA
Wide operating voltage range	3 to 18V
Texas Instruments CD40106BM, Hex Schmitt Trigger CMOS Inverter, 14-Pin SOICBrand	Texas Instruments

Key Features

This inverter operates with a Schmitt trigger input functionality.
It has a wide supply voltage range from 3V to 18V.
The device supports a maximum propagation delay time of 280ns at CL.
Rated operating temperatures range from -55°C to 125°C.
This CMOS logic device belongs to the 4000 Series family.
It comes with surface mount and SOIC package type with 14 pins.
The inverter provides maximum low level output current of 4.2mA and high level output current of -4.2mA.
Physical dimensions include length of 8.65mm, width of 3.91mm, and height of 1.58mm.

Product Description

The Texas Instruments CD40106BM is a hex Schmitt trigger CMOS inverter from the 4000 Series CMOS Logic family. It includes 6 inverters elements integrated into a 14-pin SOIC surface mount package designed for versatile electronic applications.

This device features a Schmitt trigger input, which improves noise immunity while providing clean switching thresholds. It operates with a wide supply voltage from 3V up to 18V, making it adaptable for various design requirements.

The CD40106BM offers a maximum propagation delay time of 280ns under typical load conditions and supports a maximum low-level output current of 4.2mA and maximum high-level output current of -4.2mA. It is rated for operation in temperatures ranging from -55°C to +125°C, suitable for industrial and harsh environments.

Its compact SOIC surface mount package with 14 pins and dimensions of 8.65mm in length, 3.91mm in width, and 1.58mm in height ensures efficient PCB layout and mounting. This inverter IC can be used in industrial electronics, control systems, consumer electronics, and other digital logic applications requiring noise-immune inverter stages.

This device is ideally suited for electronic circuits requiring reliable inverter functions. Wide operating voltage range allows usage in diverse power conditions. High noise immunity with Schmitt trigger input. Robust temperature range supports industrial applications.

Compact SOIC package aids in space-constrained designs. Part of the trusted 4000 Series CMOS Logic family by Texas Instruments. Suitable for integration in digital logic and switching circuits. Discover more semiconductor components and inverters ICs from Texas Instruments available at EnvMart for reliable and efficient electronic designs.
