Toshiba Inverter with Schmitt Trigger Input, 6 Elements, 14-Pin PDIP TC4584BP(N,F)

Free Delivery in India | Lowest Global Shipping Charges

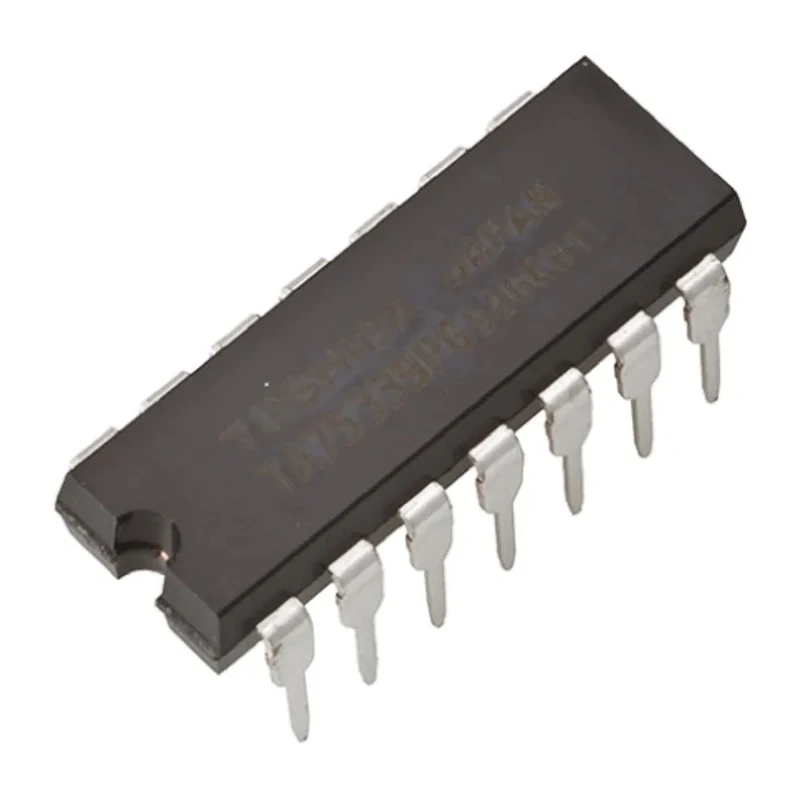

Toshiba Inverter with Schmitt Trigger Input, 6 Elements, 14-Pin PDIP TC4584BP(N,F)

Name: Toshiba Inverter with Schmitt Trigger Input, 6 Elements, 14-Pin PDIP TC4584BP(N,F)
Brand: Toshiba
SKU: 170409
Price: 1.01 USD
Availability: InStock



Category Inverter ICs Brand Toshiba Condition New

Specifications

Country of Origin	Japan
Brand	Toshiba
Height	3.5mm
Length	19.25mm
Model	TC4584BP(N,F)
Width	6.4mm
Mount Type	Through Hole
Output type	Digital
Series	TC4584B
Input Type	Schmitt Trigger
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Pin Count	14
Number of Elements per Chip	6
Maximum Supply Voltage	18V
Logic Family	4000
Logic Function	Inverter
Minimum Supply Voltage	3V
Maximum High Level Output Current	-4mA
Maximum Propagation Delay Time @ CL	340ns
Maximum Low Level Output Current	4mA

Key Features

Operates with a supply voltage range of 3V to 18V.
Maximum propagation delay time at CL is 340 nanoseconds.
Supports digital output type with through-hole mount.
Operates reliably between -40°C and 85°C ambient temperatures.
Compliant with the TC4000 logic family standard.
Package dimensions include length 19.25mm, width 6.4mm, and height 3.5mm.
Pin count is 14 pins with no automotive standard compliance.
Manufactured in Japan ensuring high quality and reliability.

Product Description

Toshiba TC4584BP(N,F) is an inverter logic IC with Schmitt Trigger inputs designed for digital applications. It incorporates 6 elements per chip in a 14-pin PDIP (Plastic Dual Inline Package) and operates on a supply voltage range from 3V minimum up to a maximum of 18V.

This device features a maximum propagation delay of 340 nanoseconds at CL, supporting efficient switching performance. It provides digital output with maximum high-level output current of -4mA and maximum low-level output current of 4mA.

Designed for through-hole mounting, this inverter IC belongs to the TC4000 logic family and is suited for industrial, automotive, and consumer electronics applications requiring reliable digital signal inversion with Schmitt Trigger input characteristics.

Operating temperature range spans from -40°C to 85°C, enabling operation in demanding environmental conditions. The package dimensions are compact at 19.25 mm length, 6.4 mm width, and 3.5 mm height, facilitating versatile PCB integration.

Supply voltage range from 3V to 18V. Schmitt Trigger input ensures noise immunity and clean switching. Six inverter elements integrated per chip. Through-hole PDIP package for secure mounting. Wide operating temperature range from -40°C to 85°C.

Complies with TC4000 logic family standards. Manufactured in Japan with strict quality control.

This inverter IC is apt for usage in electronic circuit design and prototyping, industrial control systems, and any application demanding precise digital inversion with noise immunity.

Explore more leading electronic components and Toshiba products on EnvMart for your industrial, laboratory, and manufacturing needs.

Explore more products in our Inverter ICs category.
