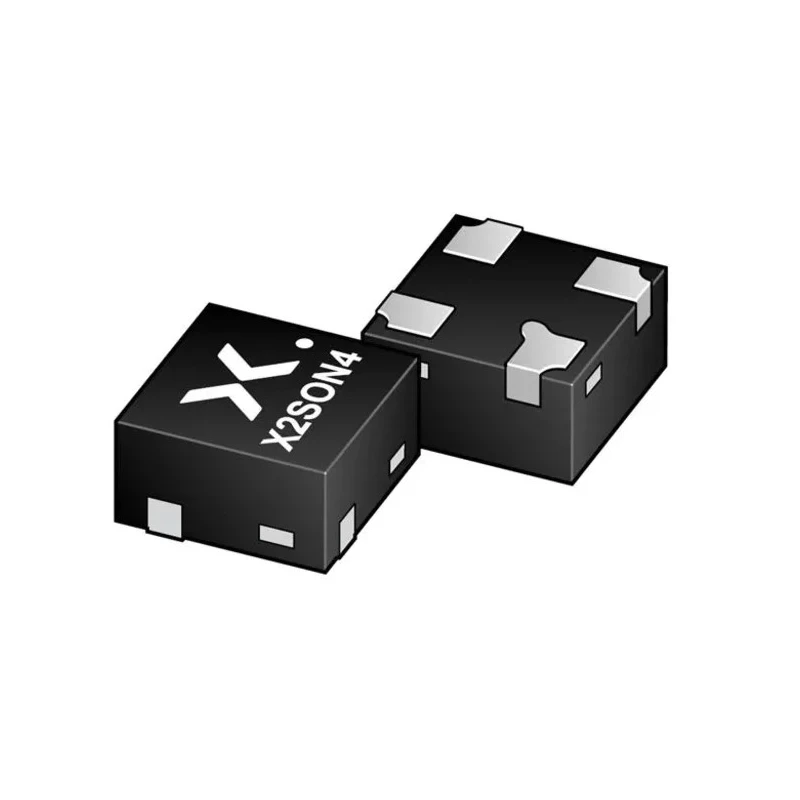

Nexperia Schmitt Trigger Inverter Logic IC 74LVC1G14GX4-Q100Z 0.8-3.6V Surface Mount CMOS 3 Elements 7ns Propagation Delay

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Schmitt Trigger Inverter Logic IC 74LVC1G14GX4-Q100Z 0.8-3.6V Surface Mount CMOS 3 Elements 7ns Propagation Delay

Name: Nexperia Schmitt Trigger Inverter Logic IC 74LVC1G14GX4-Q100Z 0.8-3.6V Surface Mount CMOS 3 Elements 7ns Propagation Delay
Brand: Nexperia
SKU: 178742
Price: 0.23 USD
Availability: InStock



Category Inverter ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	350μm
Length	650μm
Model	74LVC1G14GX4-Q100Z
Width	650μm
Mount Type	Surface
Series	74LVC1G14-Q100
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Standards/Approvals	JEDEC, RoHS
Number of Elements per Chip	3
Maximum Supply Voltage	3.6V
Logic Family	CMOS
Logic Function	Inverter
Minimum Supply Voltage	800mV
Maximum Propagation Delay Time @ CL	7ns

Key Features

The device integrates 3 Schmitt Trigger inverters in a compact surface mount form factor.
It operates efficiently with a maximum propagation delay time of 7 nanoseconds at capacitance load.
Wide supply voltage range from 0.8 V to 3.6 V ensures compatibility with diverse power conditions.
Includes IOFF circuitry for partial power-down operation that prevents damaging backflow current.
Low static power consumption with maximum ICC of 0.9 microamps guarantees energy efficiency.
High noise immunity and overvoltage tolerant inputs up to 3.6 V enhance reliability.
Meets JEDEC and RoHS standards ensuring quality and environmental compliance.
The device supports industrial temperature range operation from -55°C to 125°C.

Product Description

Nexperia 74LVC1G14GX4-Q100Z Schmitt Trigger Inverter Logic IC is a highly efficient solution for industrial and electronic applications requiring low power dissipation and precise signal conditioning. This logic IC contains three inverters with Schmitt Trigger inputs within a compact surface mount package measuring 650μm x 650μm with a height of 350μm.

Its CMOS technology enables a wide supply voltage range of 0.8 V to 3.6 V, making it adaptable for battery-powered and low-voltage systems. The device offers a maximum propagation delay time of 7ns, which ensures fast switching and signal integrity in digital circuits.

Featuring IOFF circuitry, the IC supports partial power-down modes that disable outputs to prevent backflow currents when the device is powered down, protecting connected circuitry. The maximum static current consumption is only 0.9 μA, contributing to highly energy-efficient designs.

Additional features include high noise immunity, overvoltage tolerant inputs up to 3.6 V, and latch-up immunity exceeding 100 mA according to JESD 78 Class II standards. The electrical characteristics remain stable across a wide operating temperature range from -55°C to 125°C, suitable for automotive, industrial, and commercial applications.

The device is designed to implement wave and pulse shaping functions, astable multivibrators, and monostable multivibrators. Certified compliant with JEDEC and RoHS standards, ensuring industry-accepted quality and environmental safety.

Compact dimensions and surface mount capability make it ideal for high-density PCB layouts.

This component is suited for use in industrial automation, embedded logic systems, and power management circuits requiring precise input signal conditioning through Schmitt Trigger inversion.
