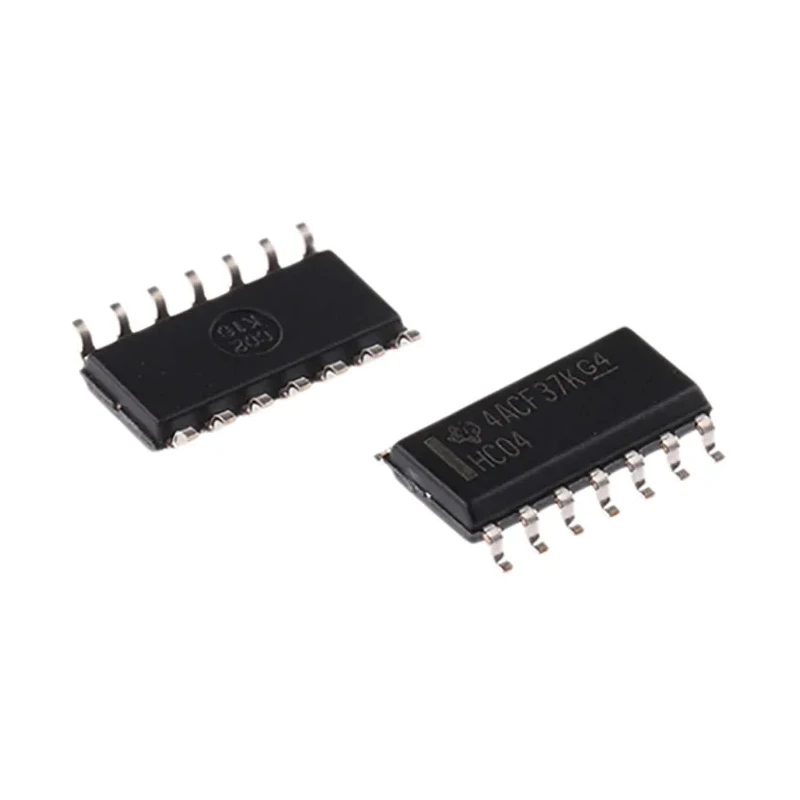

Texas Instruments Inverter Logic IC 6 Elements CMOS Push Pull Output 14-Pin SOIC SN74HC04D

Texas Instruments SN74HC04D is an inverter logic integrated circuit featuring 6 inverter elements with CMOS push-pull outputs housed in a standard 14-pin SOIC surface-mount package. It operates efficiently within a 2 to 6 V supply voltage range providing high-speed switching performance while maintaining low power consumption due to the silicon gate CMOS technology that matches the speed of LSTTL families.

This IC is designed for various industrial and electronic circuit applications requiring logic inversion functions. The device supports a temperature range from -40°C to 85°C suitable for robust operation in diverse environments. Its maximum propagation delay time is 120 nanoseconds, which makes it suitable for high-speed switching circuits.

The package dimensions are compact, with a length of 8.65 mm, width of 3.91 mm, and height of 1.58 mm, enabling easy integration on PCBs with limited space. The device does not have a Schmitt Trigger input and does not conform to automotive standards. Maximum supply voltage is 6 V and it draws minimal current at output stages, ensuring energy-efficient designs.

This inverter IC finds applications in electronic components manufacturing, semiconductor industries, educational electronics laboratories, industrial automation, and embedded system designs. Its compatibility with CMOS input and output logic levels enhances system versatility.

Operates from 2 to 6 V supply voltage. Contains 6 inverter elements per chip. Surface mount package type SOIC with 14 pins. Operating temperature ranges from -40°C to +85°C. Maximum propagation delay time at load capacitance is 120 ns.

Typical maximum output current levels are ±5.2 mA. Package dimensions: length 8.65 mm, width 3.91 mm, height 1.58 mm. High-speed CMOS logic for efficient switching.

This product is manufactured in Malaysia and supplied in new condition. The SN74HC04D is part of the Texas Instruments 74HC family of logic ICs known for combining high speed and low power operation. The wide industrial and lab applications reinforce the versatility of this CMOS inverter IC. Explore related semiconductor and logic IC categories at EnvMart for more component solutions tailored to electronic design and manufacturing needs.
